D-link DEM-432XT 10gbaselr Singlemode Sfp+ Transceiver Up To 10km
by D-Link
| Price: | $92.93 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.

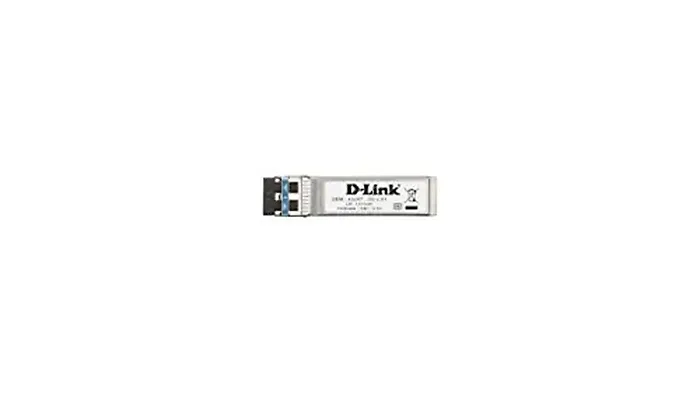

D-Link DEM-432XT-DD Transceiver The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density. The DEM-432XT-DD is a 10GBASE-LR high performance 1310nm Single-Mode SFP+ transceiver with Digital Diagnostics Monitoring (DDM) support. It supports full duplex, 10Gigabit speeds on Single-Mode fiber for distances of up to 10Km. DDM allows Real time monitoring of critical device parameters including: bias current, transmit & receive power, temperature, and voltage. The DEM-432XT-DD is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Specifications
FeaturesHot Pluggable
MSA Compliant
RoHS Compliant
Standards
Compliance with IEEE802.3ae, 10GBASE-LR
Form Factor Type: SFP+
Fibre Channel FC-PI standard: 1200-SM-LL-L
Fiber Media support: Single-Mode
Distance Capacity: 10Km
Speed
10Gbps
Interface
Duplex LC Connector
Single-direction
Wavelength: 1310nm
Output (TX) Optical Power
MAX.: +0.5 dBm
MIN.: -8.5 dBm
Input (RX) Optical Power
MAX.: +0.5dBm
MIN.: -12.6 dBm
Sensitivity: -12.6 dBm
Cable Type: single-mode 9/125um fiber
Operating
Power: 3.3V
Max Input Current at 3.3V: 300mA
Power Budget
MIN: 4.1dB
MAX: 13.1dB
Heat Generated 3.6KJ/H
Reliability
MTBF (Hours) 4,650,000
Physical and Environment
Operation Temperature: 0o-70oC
Storage Temperature: -40o-85oC
Operating Humidity: 5% - 85%
Storage Humidity: 5% - 95%
Bail latch color: Blue
Emission (EMI) and Safety Certifications
EMI: CE, FCC, VCCI
Safety: UL, TUV, CDRH
Item Dimension (L inchxW inchxH inch)
6 x 3 x 2 Weight
1.00lb Warranty Information
2 Years
