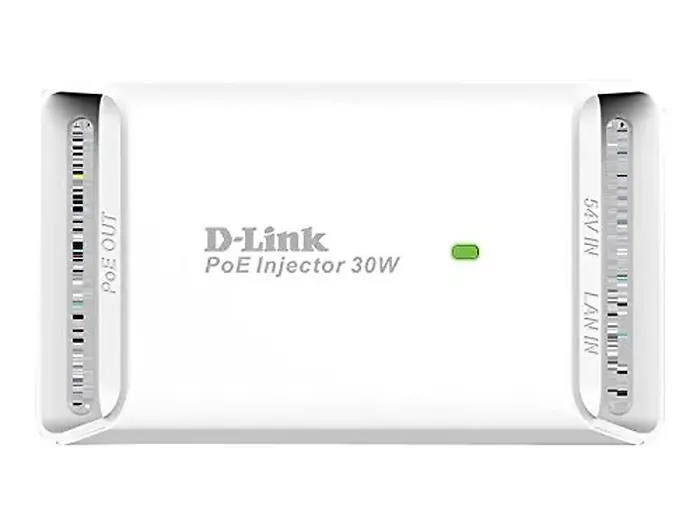

D-link DPE-301GI 1port Gigabit Poe Injector
by D-Link
| Price: | $48.16 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 7 left in stock order soon
D-Link 1-Port Gigabit 802.3at PoE Injector - 54 V DC 600 mA Output - 1 10/100/1000Base-T Input Port(s) - 1 10/100/1000Base-T Output Port(s) - 30 W
Specifications
PORTS:PoE and Data
Label: PoE OUT
IEEE 802.3 / 10BASE-T
IEEE 802.3u / 100BASE-Tx
IEEE 802.3ab / 1000BASE-T
IEEE 802.3af / 802.3at
Half/full-Duplex operation
CSMA/CD Data
Label: LAN IN
IEEE 802.3 / 10BASE-T
IEEE 802.3u / 100BASE-Tx
IEEE 802.3ab / 1000BASE-T
Half/full-Duplex operation
CSMA/CD PHYSICAL and ENVIRONMENTAL:
Temperature
Operating: 32 F to 122 F / 0 to 50 C
Storage: -22 F to 158 F / -30 C to 70 C Humidity
Operating: 5% to 95% RH
Storage 5% to 95% RH Power Consumption
Maximum: 32.4 Watts LED Indicators
Blue: Power On
Green: Link On AC/DC Power Adapter
AC Input: 100 to 240V 50/60Hz
DC Output: 54V /06A
Power Jack: 5.5mm (EIAJ-4) I-Type PoE FEATURES:
Standards: IEEE 802.3af, IEEE 802.3at Power Output
54V +/-2V 600mA
32.4 Watts Maximum Emissions (EMI) and Safety Certifications
Certifications: CE, FCC, VCCI, RCM, RoHS, BSMI Item Dimension (L"xW"xH")
4 x 6 x 8
Weight
2.00 lb
Warranty Information
1 Year Limited
