Bluewater 9059-3113-4 22mm Push Button Switch Offonon Led Backlit
by BlueWater
| Price: | $79.78 |
| MFG Part: |
| Condition: |
Currently Unavailable.

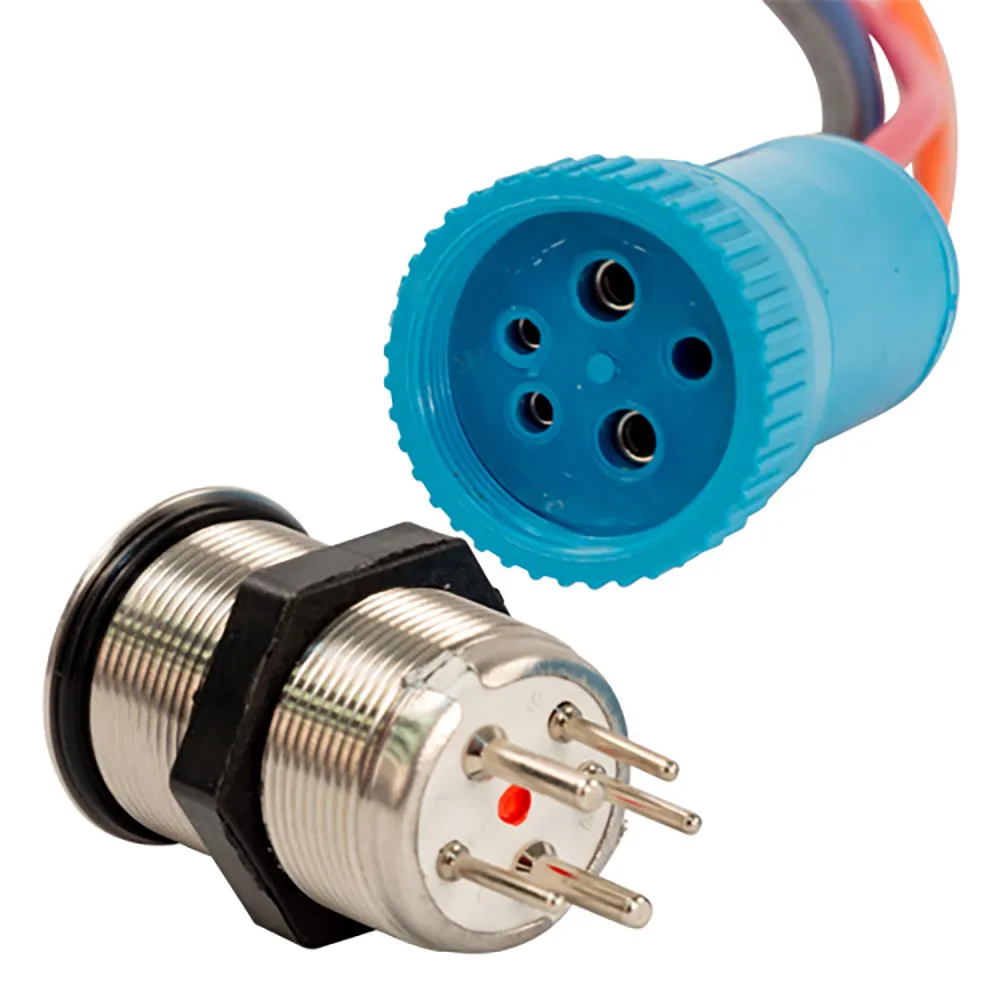

22mm Push Button Switch - Off/On/On Contact - LED Backlit
This sleek and durable stainless-steel plated push button is designed to enhance any dashboard with a modern look. Featuring an "Off-On-On" contact configuration, it delivers a reliable performance for a variety of applications.
With an impressive waterproof rating of IP69K, this switch is built for resilience against the elements. The backlit blue LED ensures visibility even in low-light conditions, changing to red to indicate when the function is activated.
Specifications:
- Function: Off-On-On (standard contact)
- Off/1st On: Blue/Green
- 2nd On: Red
- Switch Rating: 15A/12 – 24VDC
- Material: Stainless steel
- Mechanical Life: 50,000 cycles
- Electrical Life: 10,000 cycles
Installation Instructions:
For installation, create a 22mm hole in any material up to 6mm thick. Connect the three color-coded contacts for the switch and the two contacts for the LED indicator for seamless operation.
Specifications
- 4 ft. lead connection
- IP69K waterproof rating
- Backlit with blue LED light
- Color-changing to red when activated
- Reliable stainless steel construction
