Areca ARC-1883IX-16 24 Port Internalexternal Pcie 3.0 12gbps Sas Hardware Raid Controller 2gb Cach
by ARECA TECHNOLOGY
| Price: | $1391.27 |
| MFG Part: |
| UPC: |
| Condition: |
Currently Unavailable.

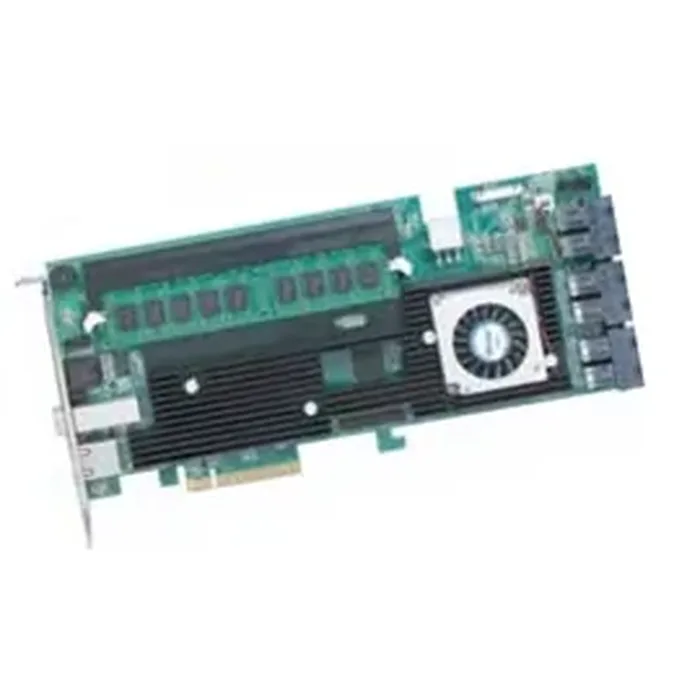

The Areca ARC1883IX-16 is a high-performance RAID adapter designed for enterprise storage solutions. Equipped with a dual-core RAID-on-Chip I/O processor running at 1.2 GHz and a 2GB DDR3 on-board cache, it provides excellent data processing and storage management capabilities. This RAID controller enables users to connect up to 256 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, making it a versatile choice for various applications.
Specifications
- I/O Processor: Dual Core RAID-on-Chip 1.2 GHz
- On-Board Cache: One 240-pin DIMM socket for 2GB (default) DDR3-1866, ECC module, with options to upgrade to 4GB/8GB.
- Driver Connector: 4 x SFF-8643, 1 x SFF-8644
- Drive Support: Supports up to 256 drives with 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs using a 12Gb/s SAS Expander.
- FBM/BBM Support: Compatibility with ARC-1883-CAP (2GB cache) and ARC-1883-BAT (4GB to 8GB cache).
- Form Factor: Full Height: 254 x 98.4 mm
- Item Dimension: 11 x 7 x 4 inches
- Weight: 3.00 lb
- Warranty Information: 3 Years
