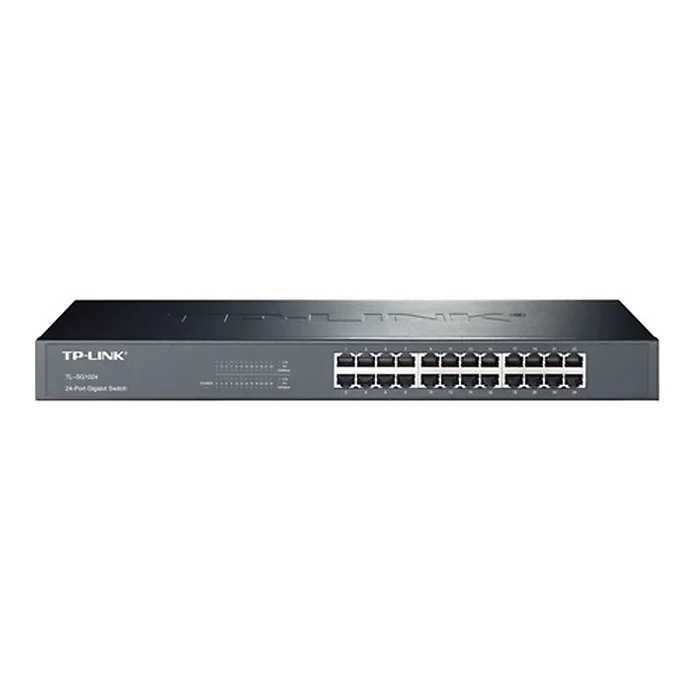

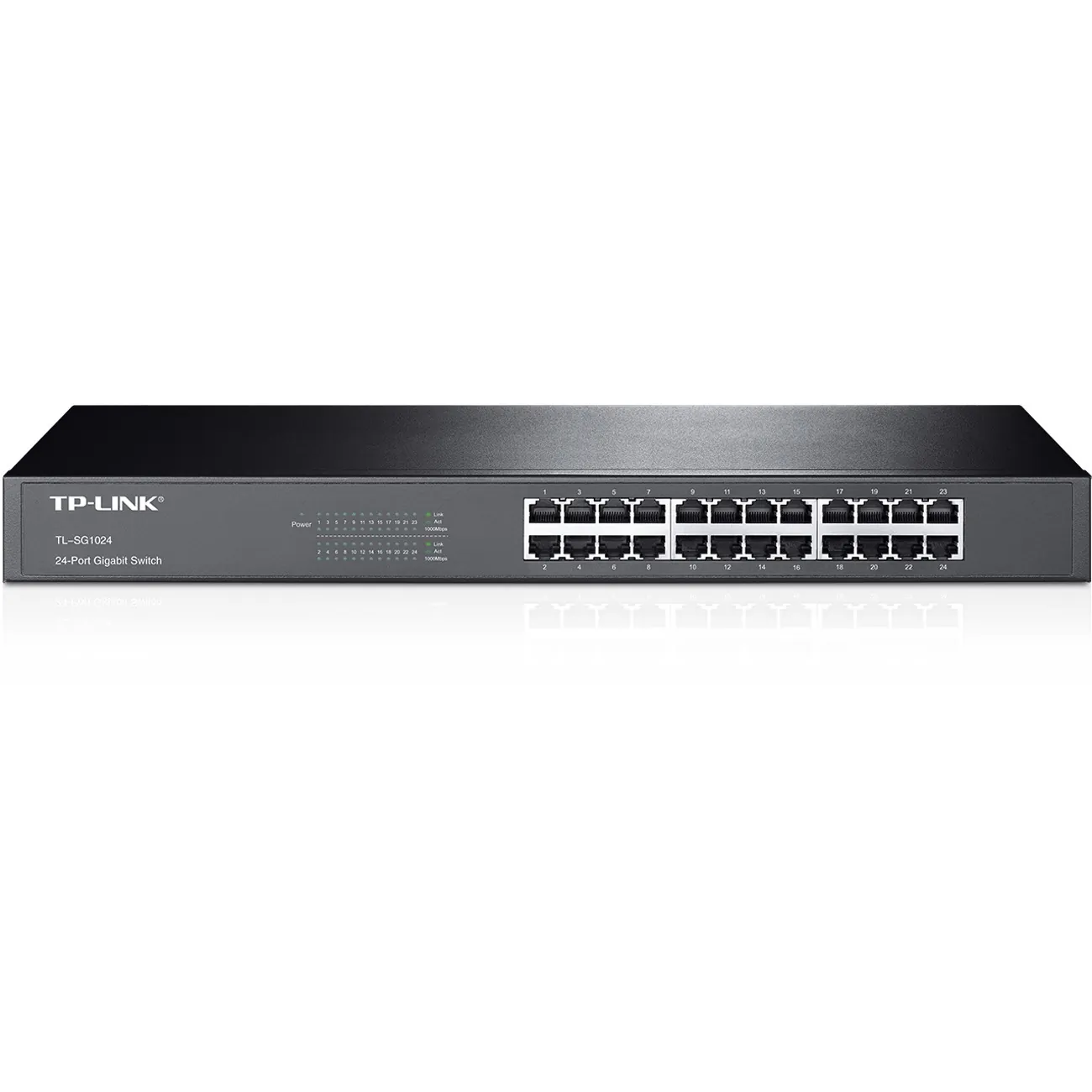

Tplink TL-SG1024 24port Gb Switch
by TPLINK
| Price: | $105.95 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 5 left in stock order soon
The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of offices and workgroup networks. Features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Device Type: Switch - 24 ports Enclosure Type: Rack-mountable Status Indicators: Link activity, power, 100M device connected, 1000M device connected Ports: 24 x 10/100/1000 Subtype: Gigabit Ethernet Interfaces: 24 x 1000Base-T - RJ-45 Voltage Required: AC 120/230 V ( 50/60 Hz ) Min Operating Temperature: 32 ?F Max Operating Temperature: 104 ?F Humidity Range Operating: 10 - 90% Width: 17.3 in Depth: 7.1 in Height: 1.7 in Features: Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward Dimensions (WxDxH): 17.3 in x 7.1 in x 1.7 in Power: AC 120/230 V ( 50/60 Hz ) Device Type: Switch - 24 ports Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x Enclosure Type: Rack-mountable Ports: 24 x 10/100/1000 Subtype: Gigabit Ethernet
Used (1) from Other Sellers on Arceto
-
$93.28
Sold by: Aztek Computers - Used (1) from Other Sellers on Arceto
Specifications
Features All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps Supports Auto-MDI/MDIX function Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode Store and forward Switching scheme Specifications Standards and Protocols :IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth : 48Gbps MAC Address Table : 8k Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port Transmission Method : Store-and-Forward Ports : 24 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) LED Indicators : Power, Link/Act Safety and Emission : FCC, CE Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing Power : 100-240VAC, 50/60Hz Dimensions / Weight Dimensions (WxDxH) : 17.3 x 7.1 x 1.7 in. (440x180x44 mm)
