Trident 710-1001 316 Ss Nonperforated Worm Gear Hose Clamp 10pack
by Trident Marine
| Price: | $35.59 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon

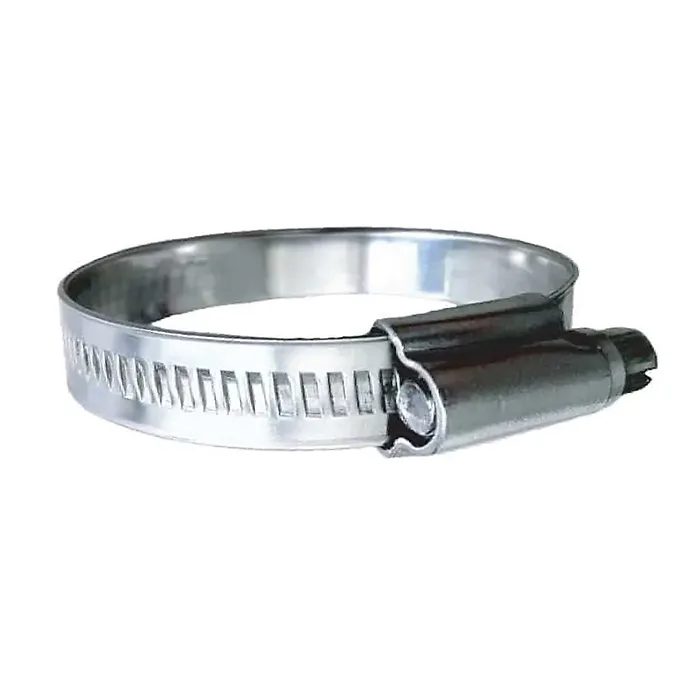

316 SS Non-Perforated Worm Gear Hose Clamp - 10-Pack
This premium marine-grade worm gear hose clamp is made from high tensile strength AISI 316 stainless steel, ensuring durability and rust resistance. The clamp features an 11.7 mm (0.46") wide non-perforated band that is smooth on the inside and has rolled edges, minimizing the risk of hose damage while providing an increased clamping force. With a compact one-piece design, it offers a high clamping force rating suitable for various applications.
Key Features:
- Screw head size: 7mm
- Long-lasting and safe for general-purpose hose connections
Recommendations:
- Measure hose outer diameter to select appropriate clamp size
- Double-clamp at each hose end for critical applications
- Consider wider band 316 SS T-Bolt Clamps for larger hoses
Construction Details:
- Band & Housing: 316 Stainless Steel, 11.7 mm wide, 0.9 mm thick
- Screw Drive: 316 Stainless Steel with 7.0 mm screw head
Specifications:
- SAE Size: 16
- Hose Inner Diameter: 7/8" – 1"
- Clamping Range: 1-1/16" – 1-1/2" (26-38 mm)
- Recommended Torque: 35-45 inch lbs
Specifications
- Made from premium AISI 316 stainless steel for corrosion resistance
- Non-perforated band minimizes hose damage
- High clamping force with a compact design
- Long service life for reliable performance
- 7mm screw head for easy adjustments
