Veratron B00067401 85mm Rudder Angle Indicator For Nmea 0183 Red Illumination
by Veratron
| Price: | $200.55 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 2 left in stock order soon

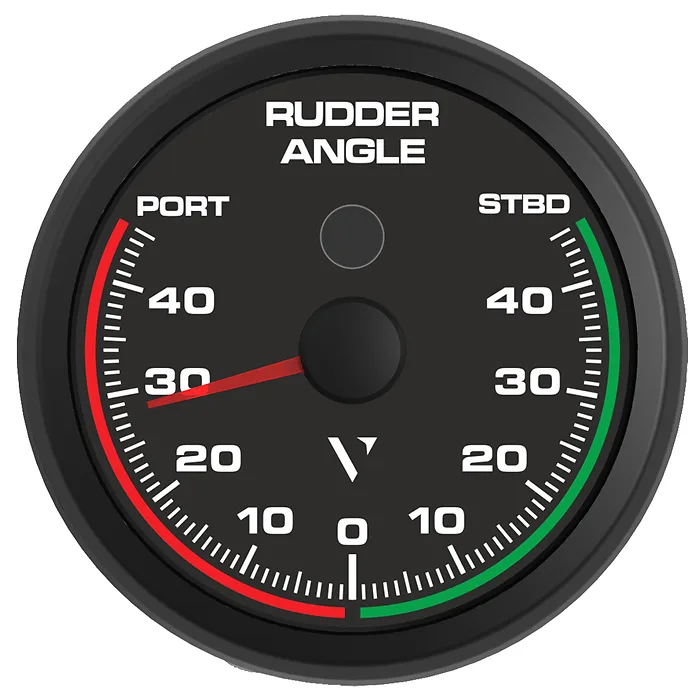

85MM Rudder Angle Indicator with NMEA 0183 Compatibility
This professional-grade 85MM rudder angle indicator is expertly designed for marine applications, equipped with an NMEA 0183 transceiver for seamless integration with most commercial autopilots. Its large, easy-to-read 270° dial scale features striking red illumination, ensuring visibility and accuracy under various conditions.
Engineered for resilience, this indicator operates reliably in harsh environments, with a wide temperature range from -30°C to +80°C and an IPX7 protection rating. It accommodates both 12V and 24V systems and supports analogue rudder sensors ranging from 3-180 Ohm and 0-5V. Additionally, it can transmit rudder angle data via NMEA 0183 to secondary gauges connected in series.
Featuring an embedded infrared pushbutton, users can easily fine-tune the calibration settings to their preferences.
Included in the Box:
- Gauge
- Wire Harness
- Mounting Spinlock
- Safety Instructions
*Sold as an individual item.
This product is non-returnable to the original point of purchase. Please contact the manufacturer for support.Specifications
- NMEA 0183 integration for autopilot support
- High visibility with red LED illumination
- Wide operating voltage range from 8 to 32 V
- IP6K7 rated for protection against harsh conditions
- Compatible with multiple rudder sensor types
- User-friendly calibration via infrared pushbutton
