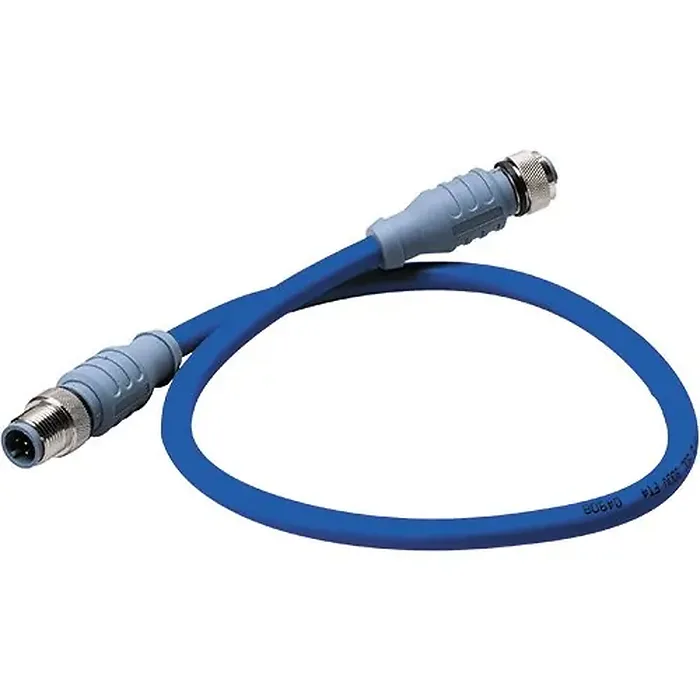

Maretron CW47018 8m Blue Doubleended Cordset
by Maretron

• ☆☆☆☆☆
• 1 customer reviews (jump to section)

Currently Unavailable.

8 Meter Blue Double-Ended Cordset

Mechanical:

• Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
• Contact Material/Plating: Brass/Gold
• Coupling Nut Material/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"

Electrical:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable:

• Outer Jacket Material/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

Environmental:

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C (-40 deg F to 176 deg F)

Approvals:

• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3
