Wichard 06565 8mm Double Folding Pad Eye Perfect For Nautical Use
by Wichard Marine
| Price: | $166.57 |
| MFG Part: | 06565 |
| UPC: | 3587790065657 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Renew.
Added On: Mar 20, 2026 | Updated On: Apr 1, 2026 | Views: 5

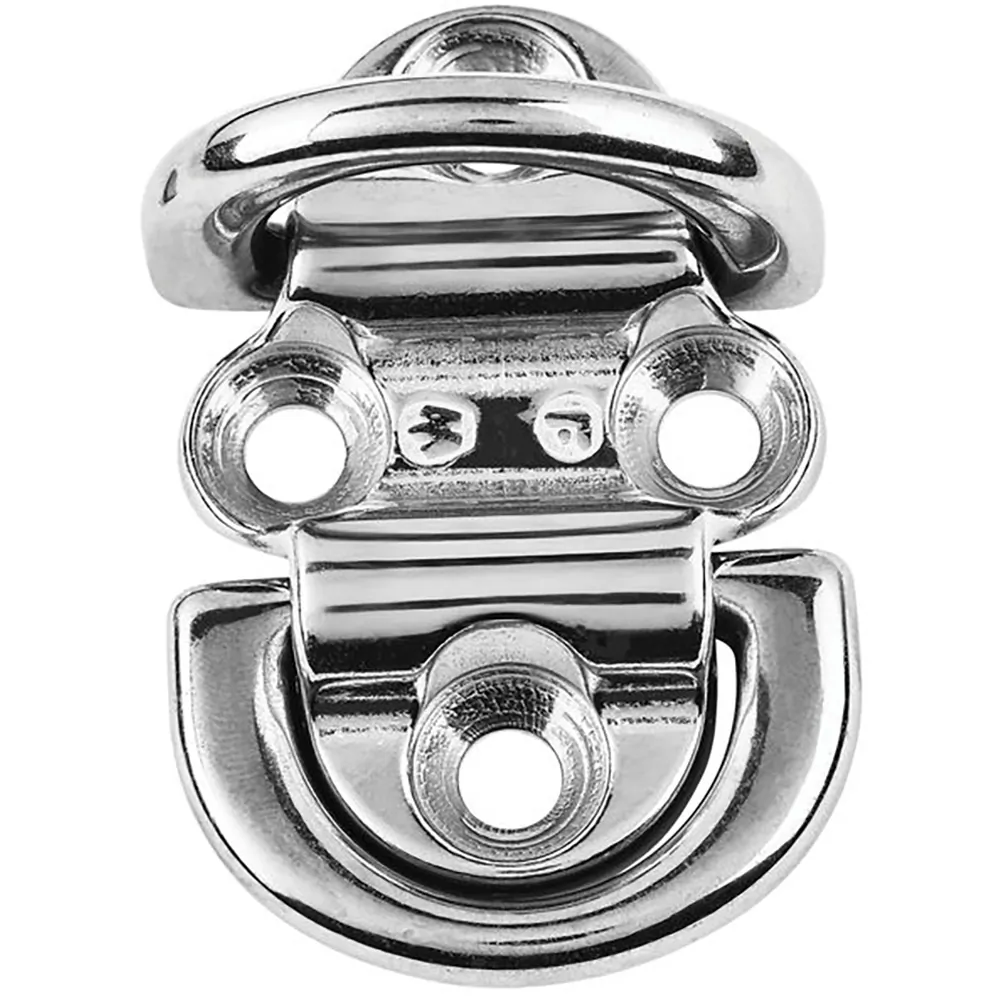

Double Folding Pad Eye - 8mm Diameter - 5/16"
Features:
- Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
Applications:
- For any fastening/attachment application
- Allows to attach several shrouds
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 9470 / (kg) 4300
- Weight: (lb) 0.556 / (g) 252
Dimensions:
- A: (inch) 2 21/64" / (mm) 59
- B: (inch) 1 3/8" / (mm) 35
- C: (inch) 43/64" / (mm) 17
- d diameter: (inch) 21/64" / (mm) 8.5
- D diameter: (inch) 5/16" / (mm) 8
- E: (inch) 3 3/16" / (mm) 81
- F: (inch) 2 21/64" / (mm) 59
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Specifications
- Fully drop forged for enhanced load capacity.
- Optimized for safe attachment of nautical equipment.
- Folding design to reduce injury risks.
- Noise-dampening silicon pad included.
