Astron SS-30-AP Astron Power Supply 110220vac12vdc 30a Converter
by ASTRON CORPORATION INC.
| Price: | $277.41 |
| MFG Part: | SS-30-AP |
| UPC: | 053786336597 |
| Condition: | New |
In Stock.
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Mar 30, 2026 | Views: 2

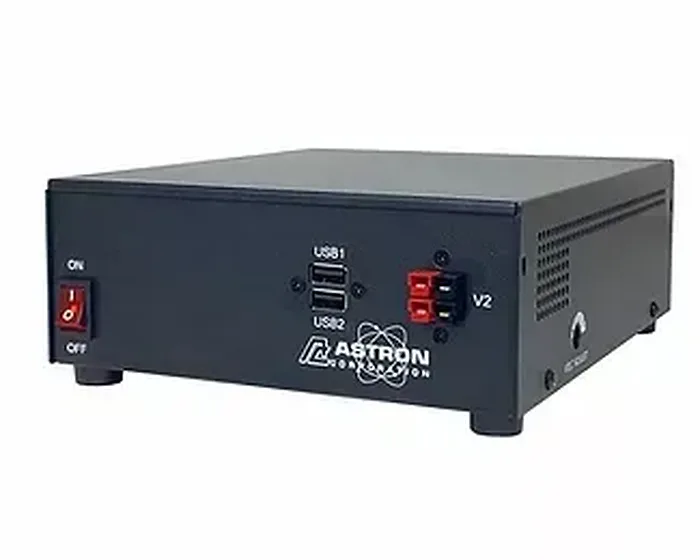

Astron SS-30-AP Switchign Desktop Power Supply
Model: SS30-APThe SS-30 model supports currents up to 25A avg and peak up to 30A ICS (*) peak max. It is ideally suited for use with 12/13.8 VDC communications equipment. Switching technology >82% efficient meets individual power loading requirements. Included is special filter circuitry especially suited for all communications frequencies and HF.
Several protection features are built-in. Included are output current limiting, overvoltage protection, internal fuse protection, and over temperature shutdown.
Integration is seamless with standard 12/13.8 VDC equipment. Front panel 'Anderson Power Pole'; terminals and rear panel screw-wire terminals are heavy duty. Connectors are easy accessible which ensures safe and reliable installation.
Specifications| 120 to 230 VAC, 50/60Hz (Nominal Automatic Wide-Range selected) | |
| Output voltage | 13.8 VDC (User manual adjustable +- 1 V) 2 USB ports: 5.2V, 1.5A per port |
| Output current | 30A peak current - ICS Intermittent Communication Service 25 Amp Max Continuous |
| Temperature | 0 to +50oC Operating, -20 to +85oC Storage 120oC max over-temperature setting |
| Humidity | 5 to 90% RH Operating, 5 to 95% RH Storage (Non-condensing) |
| Dimensions | 2 5/8 in H x 7 in W x 8 1/4in D |
