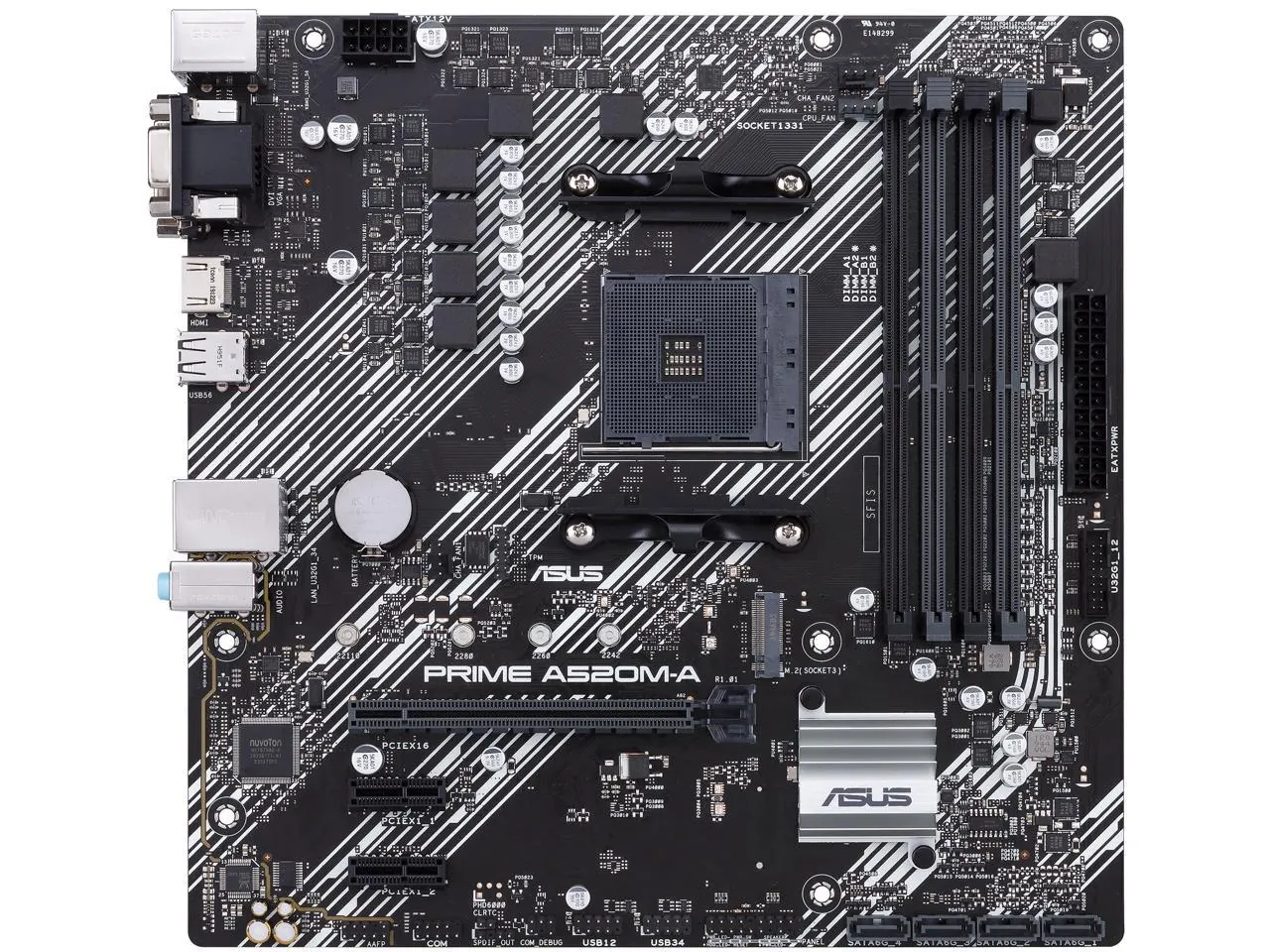

Asus PRIME A520M-A/CSM Prime A520ma Motherboard Am4 128gb Ddr4 Hdmi
by ASUS
| Price: | $95.89 |
| MFG Part: | PRIME A520M-A/CSM |
| UPC: | 192876826898 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Aug 23, 2023 | Updated On: Dec 28, 2025 | Views: 15
The ASUS PRIME A520M-A motherboard is designed for users seeking an affordable and reliable solution for AMD 3rd Gen Ryzen processors. With support for up to 128GB of DDR4 memory and advanced connectivity options, this micro ATX board provides excellent performance for a variety of computing needs.
Featuring a robust audio solution and versatile expansion options, the PRIME A520M-A delivers everything you need for a dependable and high-performance system.
Specifications
- CPU: Supports AMD Socket AM4 for 3rd Gen Ryzen processors with Radeon Graphics.
- Chipset: AMD A520 Chipset.
- Memory: 4 x DIMM slots, max 128GB DDR4 with speeds up to 4800 MHz overclocked.
- Graphics: Multiple output options including DVI-D, D-Sub, and HDMI 2.1 supporting 4K at 60Hz.
- Expansion Slots: 1 x PCIe 3.0 x16 and 2 x PCIe 3.0 x1 slots.
- Storage: 1 x M.2 slot and 4 x SATA 6Gb/s ports, supporting RAID 0, 1, 10.
- Networking: 1 x Realtek RTL8111H 1Gb Ethernet.
- USB Ports: Total of 6 rear USB ports (4 x USB 3.2 Gen 1 and 2 x USB 2.0).
- Audio: Realtek ALC887 7.1 Surround Sound with high definition audio support.
- Back Panel I/O: Includes USB ports, DVI-D, D-Sub, HDMI port, audio jacks, and PS/2 port.
- Special Features: ASUS 5X Protection III, including DIGI+ VRM and SafeSlot Core.
- Software: Comes with ASUS Exclusive Software, including AI Suite 3 and Armoury Crate.
- BIOS: 256Mb Flash ROM with UEFI AMI BIOS.
- Dimensions: 11 x 11 x 3 inches; Weight: 3.00 lbs.
- Warranty: 3 Years.
