Navico 7054-BSS Blue Sea 10a Push Button Quick Connect Circuit Breaker
by NAVICO GROUP AMERICAS LLC
| Price: | $13.07 |
| MFG Part: | 7054-BSS |
| UPC: | 632085070540 |
| Condition: | New |
In Stock.
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Apr 2, 2026 | Views: 3

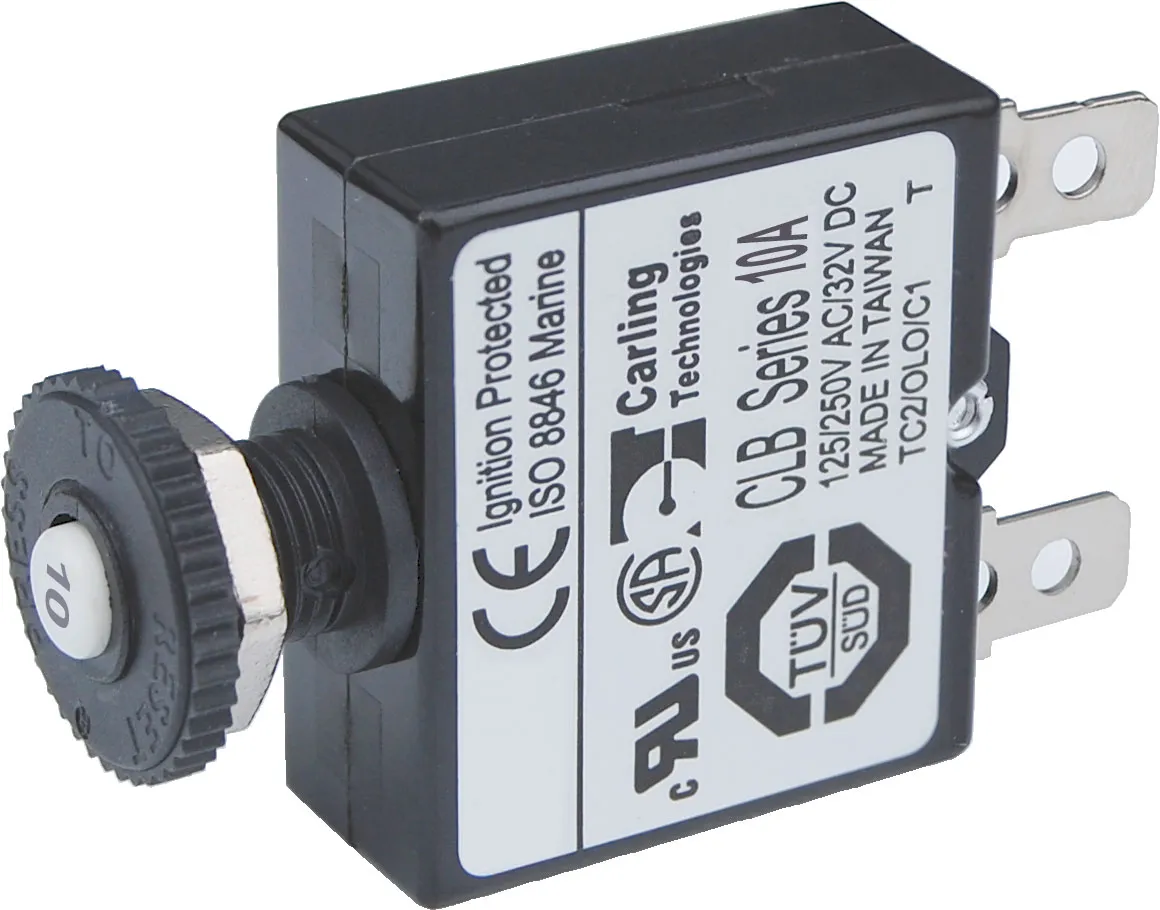

Blue Sea Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
Model: 7054-BSS- Branch circuit breakers (can also be used for 24-hour circuit protection)
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Compact design enables high density circuit protection configurations
- Push-to-reset operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking
| 10A | |
| Maximum Voltage | 32vDC |
| Mounting | Panel Mount 3/8-27 UNS |
| Circuit Breaker Type | Thermal trip, manual push-button reset only |
| Terminal Type | 1/4 Male Quick Connect |
| Interrupt Capacity | 3000A @ 14.7V 2500A @ 28V |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 60 deg C |
