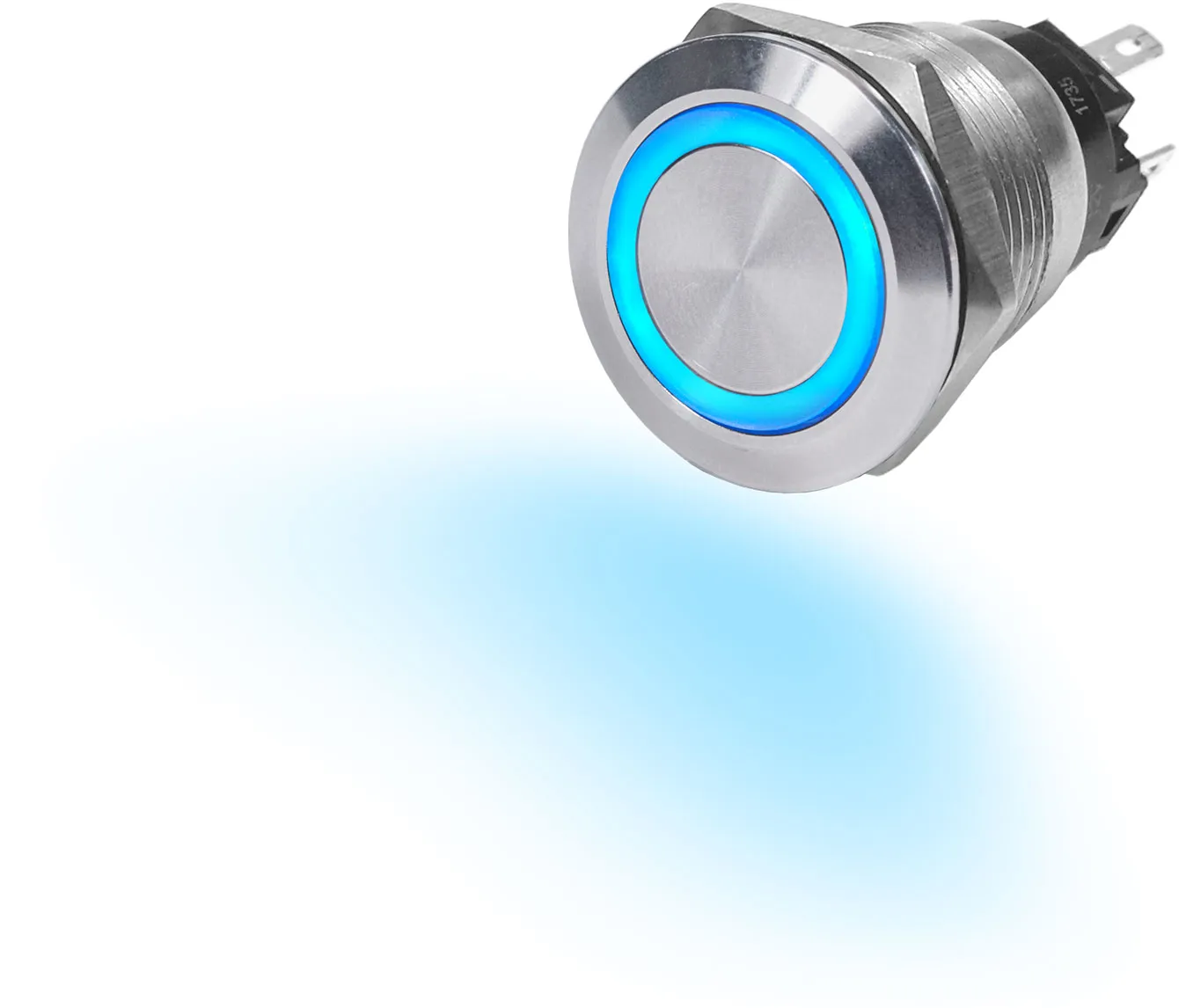

Navico 4160-BSS Blue Sea 4160 10a Push Button Led Ring Switch Offon Blue
by NAVICO GROUP AMERICAS LLC
| Price: | $30.52 |
| MFG Part: | 4160-BSS |
| UPC: | 632085041601 |
| Condition: | New |
In Stock.
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Mar 30, 2026 | Views: 2
Blue Sea 10A Push Button LED Ring Switch Off-On Blue
Model: 4160-BSS- 10A continuous
- Can be wired for normally open or normally closed
- Installs with .110inch quick connects (included in retail package)
| OFF-ON | |
| Amperage | 10A @ 12V DC Resistive 3A @ 12V Inductive |
| Nominal Voltage | 12V DC |
| Maximum LED Operating Current | 20mA |
| Minimum Operating Temperature | -10 deg C |
| Maximum Operating Temperature | 70 deg C |
| Minimum Storage Temperature | -55 deg C |
| Maximum Storage Temperature | 85 deg C |
| Illumination | Independent - Separate contacts for LED power |
| Max Panel Thickness | 0.31in (7.87 mm) |
| Mounting Hole | 3/4 in (19mm) |
| Switching Cycles | 40,000 |
| Termination | 5 - 0.110inch Quick Connect terminals |
