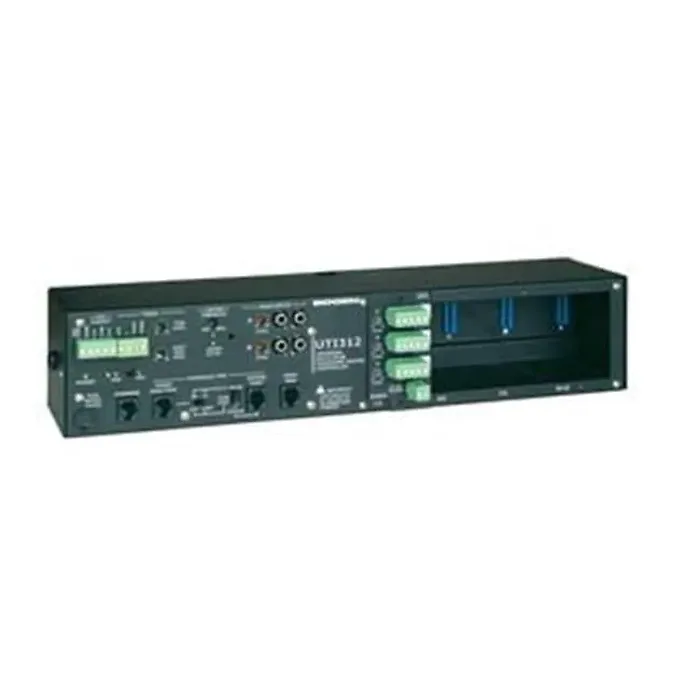

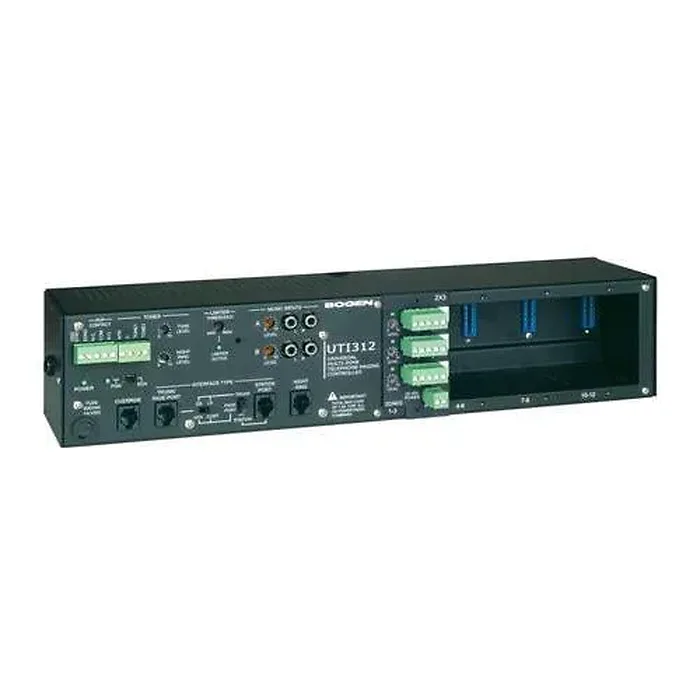

Bogen BG-UTI312 Uti312 Multizone Universal Telephone Interface Controller
by Bogen

• ☆☆☆☆☆
• 2 customer reviews (jump to section)

Price:

$456.98

MFG Part:

BG-UTI312

UPC:	765368222029

Condition:

New

In Stock.
only 3 left in stock order soon

Product Information

• Part Number: UTI312
• Manufacturer: Bogen Communications Inc.
• Product Name: Bogen UTI312 Multi-Zone Universal Telephone Interface Controller BG-UTI312
• Product Type: Telephone Interface / Paging Controller
• Model: UTI312

Product Description

The Bogen UTI312 is a multi-zone universal telephone interface designed to provide seamless integration between a telephone system and a public address (PA) or paging system. It enables paging, signaling, and music on hold functions through virtually any PABX, electronic key system, or 1A2 key system. The UTI312 features 12 contact closure outputs, allowing for multi-zone paging capabilities, and offers adjustable volume controls for voice and music, as well as an automatic level control (ALC) for consistent voice output. It supports various loop start, ground start, and station port (90V ring) interfaces, making it highly versatile for different telephone systems. Its robust design and comprehensive features make it an ideal solution for offices, schools, and commercial facilities requiring flexible and reliable paging over their existing telephone infrastructure.

Product Specifications

• Telephone Interfaces: ['Loop Start (PABX/Key System Trunk Port)', 'Ground Start (PABX/Key System Trunk Port)', 'Station Port (90V Ring-up, 600 Ohm balanced)']
• Paging Outputs: Transformer-isolated, 600-ohm, balanced, @ -10 dBm nominal
• Music Mute: During paging via contact closure
• Contact Closures: 12 independent, SPST, normally open, 24V DC @ 1A max.
• Music Input: RCA jack, 10k ohm input impedance
• Music Output: 600-ohm, balanced, @ -10 dBm nominal
• Controls: ['Paging Volume', 'Music Volume', 'Night Ringer Volume', 'ALC (Automatic Level Control) Enable/Disable', 'Ring/Voice Threshold', 'Loop Current (high/low)', 'PABX/Key System Selection (Loop/Ground Start)', 'Station Port Select (Tip/Ring, Ring/Tip)', 'Station Port Input Termination (600 Ohm/10k Ohm)', 'MOH (Music-On-Hold) Input Selection', 'Talk Battery Select (high/low)', 'AGC (Automatic Gain Control) Response Time']
• Indicators: ['Power', 'Input Loop', 'VOX', 'Ring', 'Outputs (1-12)']
• Connections: Screw terminals (except music input)
• Power Input: 24V AC, 60 Hz, 10 VA (from included transformer)
• Dimensions (W x D x H): 8.5" x 6" x 1.75" (21.59 cm x 15.24 cm x 4.45 cm)
• Weight: 2.2 lbs (1.0 kg)
• Mounting: Wall or shelf mount (integral flanges)
• Finish: Black with white nomenclature
