C.e. 10102G40 Double Slot Swivel Bolster Bracket Assembly 13"
by C.E. Smith
| Price: | $15.94 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 5 left in stock order soon
Double Slot Swivel Bolster Bracket Assembly - 13"
C.E. Smith's adjustable bracket is designed to support roller bunks. Hot dip galvanizing for years of use in the harsh marine environment. This bracket assembly uses bolster bracket-10102G and swivel bracket-10200G.
Features:

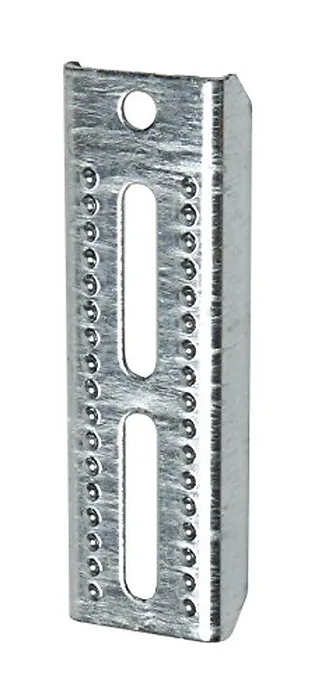

- Bolster bracket: 12" bracket, 11 gauge material, 2-1/2" wide, slots 1/2" wide, swivel hole 1/2" dia., slots 4-3/4"
- Swivel bracket: 11 gauge material, bunk flange 1-3/8" x 3-1/2", bunk flange holes 3/8" dia., swivel flange 2" tall x 3-1/2", swivel flange hole 1/2" dia., hole centers 2-1/2"
- Overall assembly length is 13"
Specifications
Double Slot Swivel Bolster Bracket Assembly - 13C.E. Smiths adjustable bracket is designed to support roller bunks. Hot dip galvanizing for years of use in the harsh marine environment. This bracket assembly uses bolster bracket-10102G and swivel bracket-10200G.
Features:
- Bolster bracket: 12 bracket, 11 gauge material, 2-1/2 wide, slots 1/2 wide, swivel hole 1/2 dia., slots 4-3/4
- Swivel bracket: 11 gauge material, bunk flange 1-3/8 x 3-1/2, bunk flange holes 3/8 dia., swivel flange 2 tall x 3-1/2, swivel flange hole 1/2 dia., hole centers 2-1/2
- Overall assembly length is 13
