Specifications

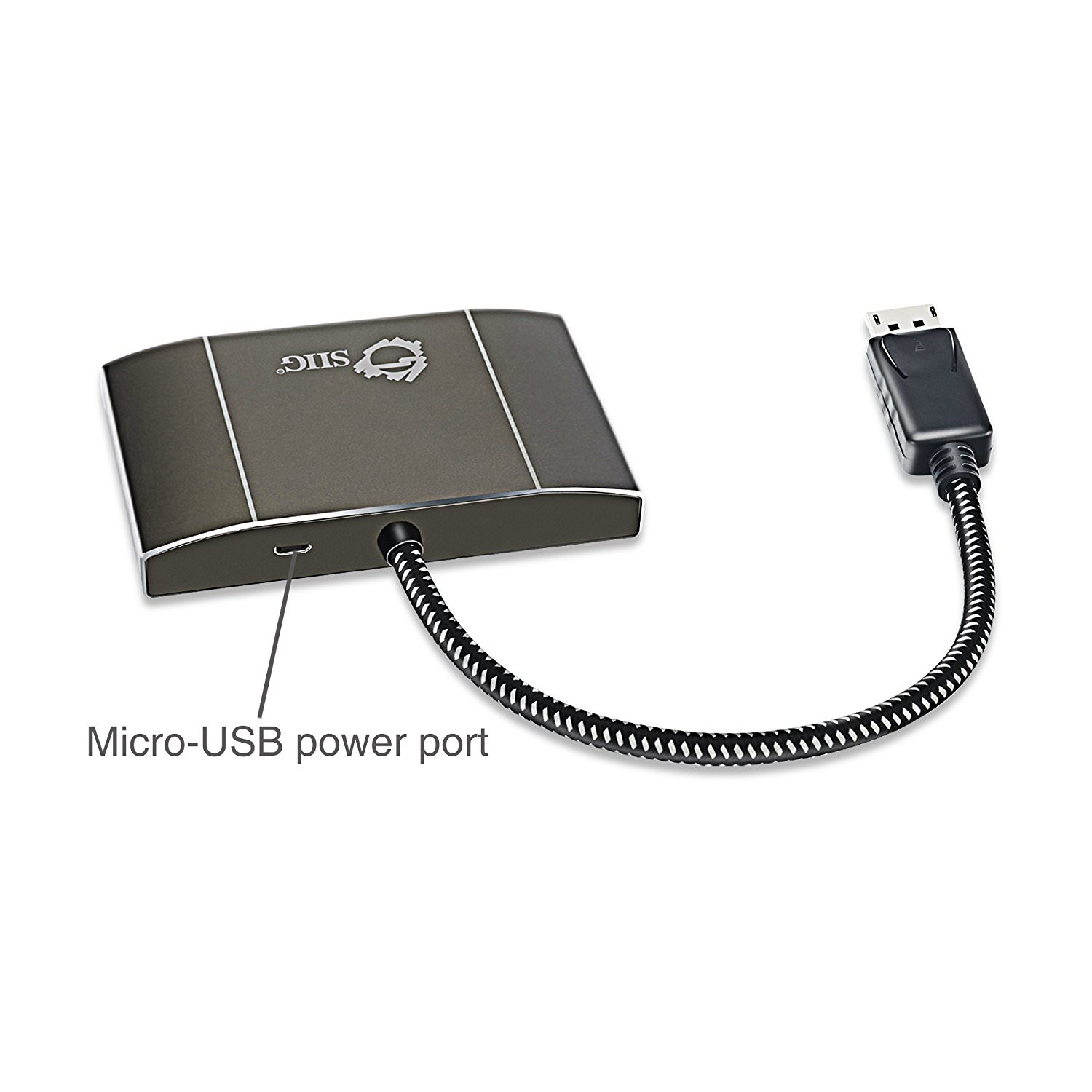

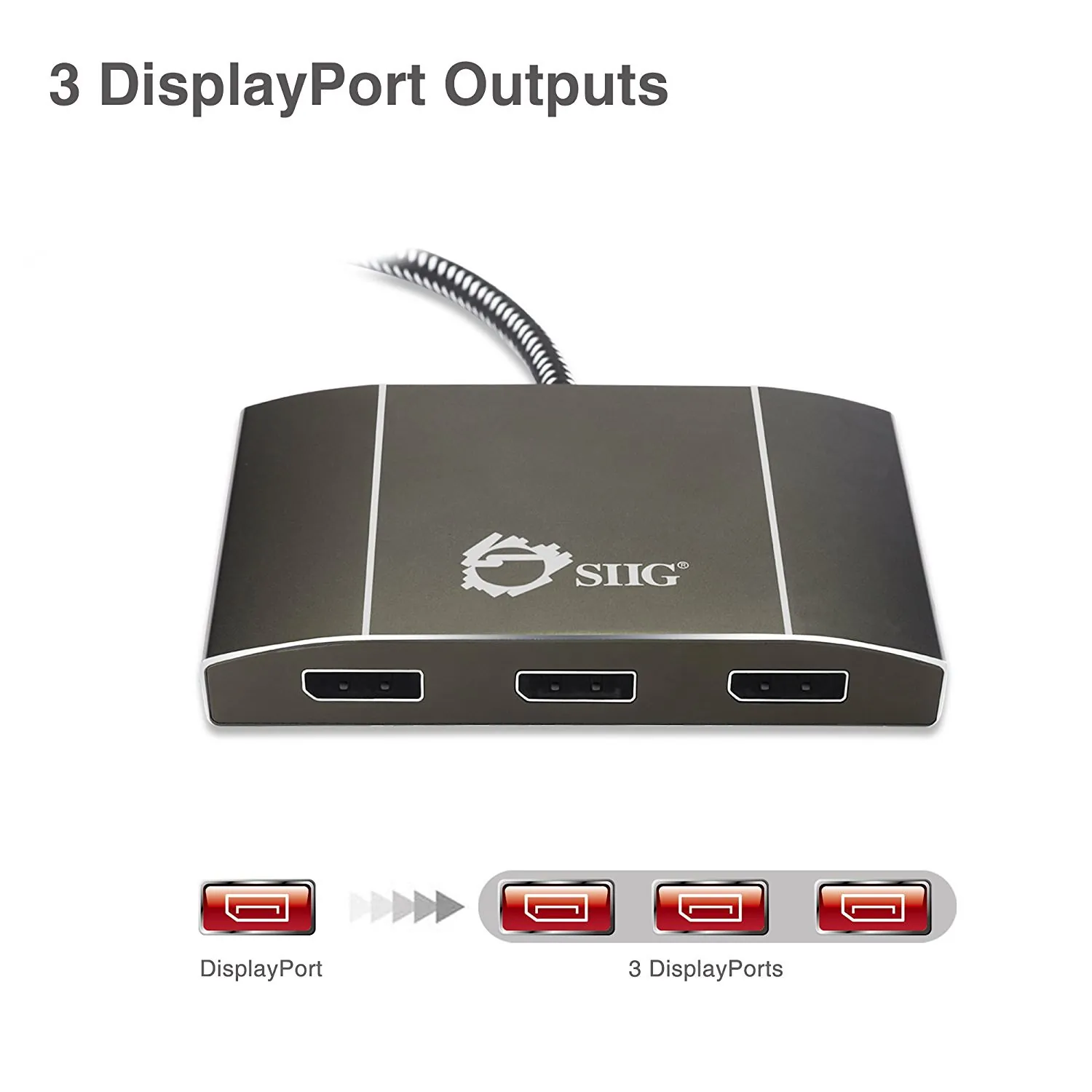

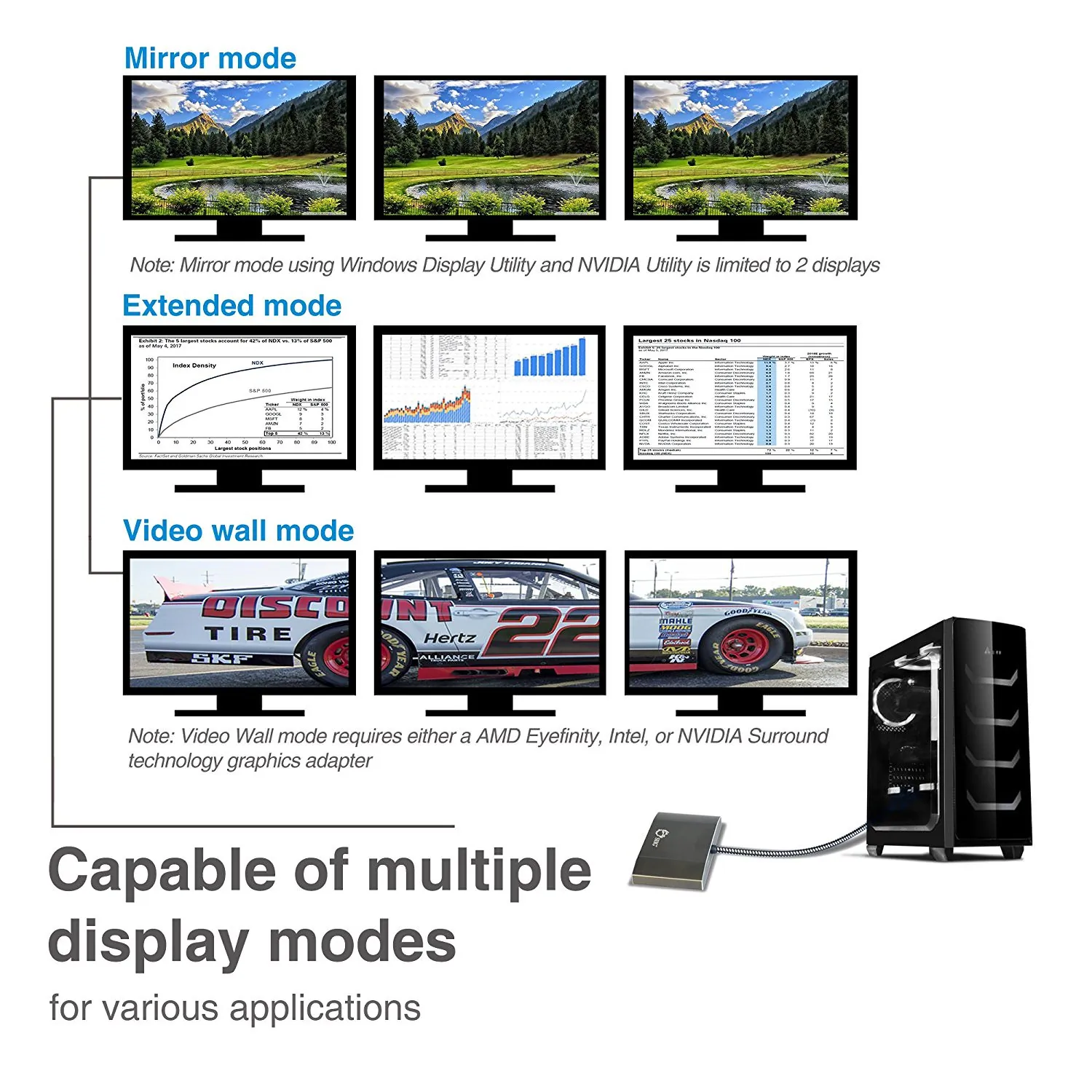

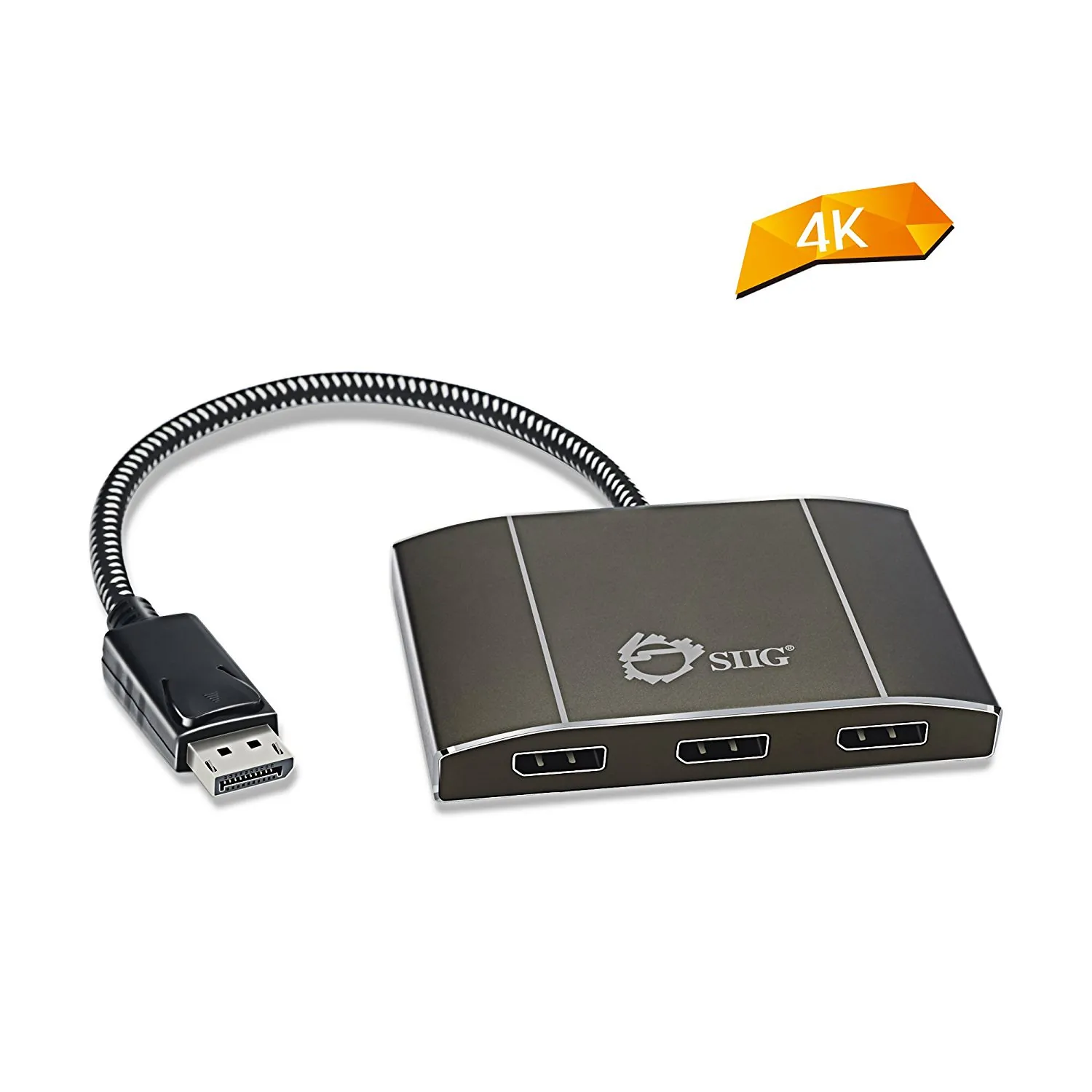

Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technologyProvides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large displaySupports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audioCompatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity or NVIDIA Surround technologyPlug-n-play, hassle-free set up without complicated hardware or driver installationPremium aluminum housing decreases surrounding interference and provides optimal video quality. Built-in woven braided cable for enhanced durabilityChipset: STDP4320Maximum resolution up to 3840x2160 @ 30HzCompliant with DisplayPort 1.2a specificationsDisplay Modes: Mirror*, Extend, Panoramic video wall ** Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapterTotal Bandwidth 21.6Gbps (100%): 3840x2160 @30Hz(40%); 2560x1600 @60Hz (38%); 2560x1440 @60Hz (35%); 1920x1200 @60Hz (30%); 1920x1080 @60Hz (22%) Note: The total combined bandwidth among all connected displays must NOT be exceededDimensions (housing only): 4.14" (L) x 2.60" (W) x 0.67" (D)Total Length (including DisplayPort cable): 12.56 inchesWeight: 0.27 lbsColor: Deep brownHousing: AluminumConnector: 1x 20-pin, DisplayPort, Male, Input 3x 20-pin, DisplayPort, Female, Output 1x 5-pin, Micro USB, Female, USB power InputEnvironmental Conditions: Operating temperature: 32 to 104 degrees F Storage temperature: -4 to 158 degrees F Relative humidity: 5% to 90% RH (non-condensing)Certifications/Standards: FCC, CE, RoHS
