Siig CEH22C12S1 Distribute One Hdmi Source Signal To Four Monitors Simultaneously Without Signal
by Siig

Specifications

SIIGs 4Kx2K HDMI 4-Port Splitter with 3D Supported is designed to broadcast HDMI content from one HDMI source to 4 display units without signal distortion and degradation. It supports premium video quality with full scale display resolutions up to 4Kx2K, 3D video, HDMI Deep Color, and multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD. It is easy and hassle-free to install with no software installation required. And it features automatic EDID learning ability to fully maximize the display units compatibility. This HDMI 4-Port Splitter is a great device for digital signage deployment to broadcast high definition audio and video for both home and commercial applications.

Chipset: Silicon Image 19187B
Compliant with HDMI and HDCP
Video bandwidth: 10.2 Gbps (single-link 340MHz)
Video support 480p/720p/1080i/1080p/4K2K
Resolution up to 4Kx2K 30Hz
Supports Deep color and 3D
Audio support: DTS-HD/Dolby-true HD/LPCM7.1
Supports transmission distance up to 15M (Input 5m / Output 10m)

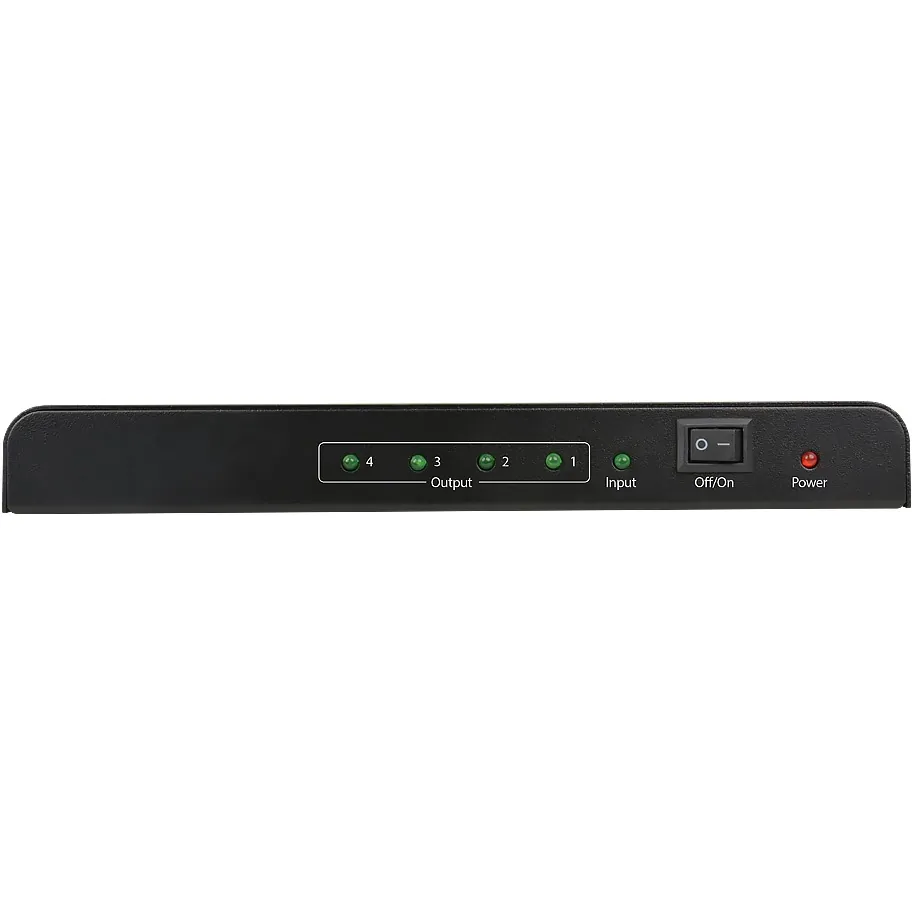

LED indication for power and link
Metal housing for better RF shielding
Product:
Color: Black
Housing: Metal

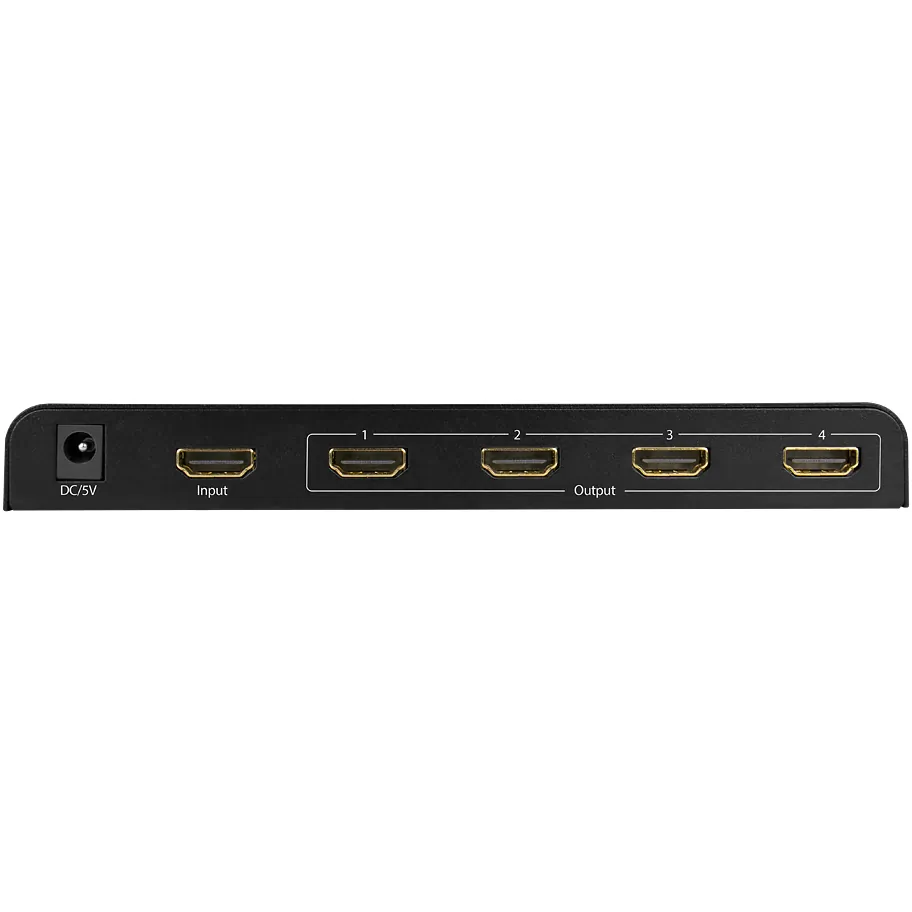

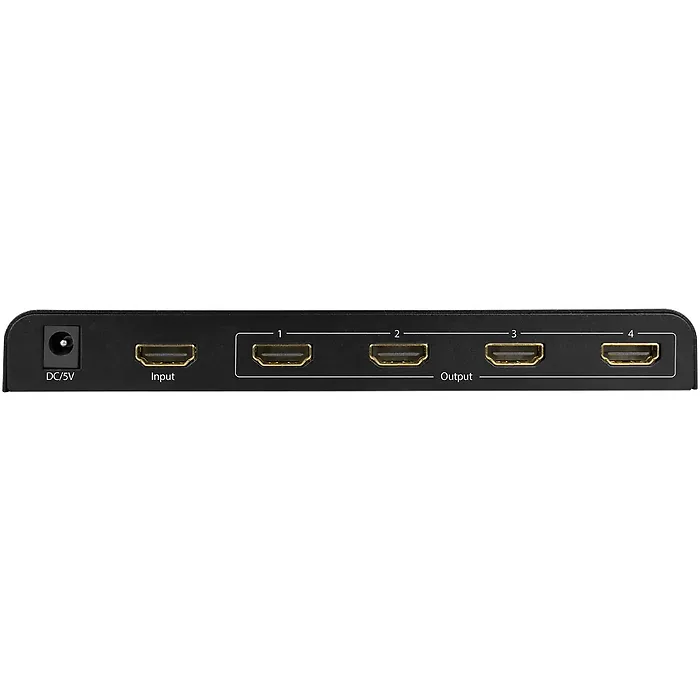

Connector:
1x 19-Pin, HDMI, Type A, Female, Input
4x 19-pin, HDMI, Type A, Female, Output
1x Power switch
Power adapter:
Input: 100-240VAC, 50/60 Hz
Output: 5V DC, 1A
Environmental conditions:
Operating temperature: 14 to 131 degrees F
Storage temperature: 5 to 158 degrees F
Relative humidity: 5 to 90Percent RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
2.24 x 7.99 x 5.71

Weight
0.97 lb

Warranty Information
2 years
