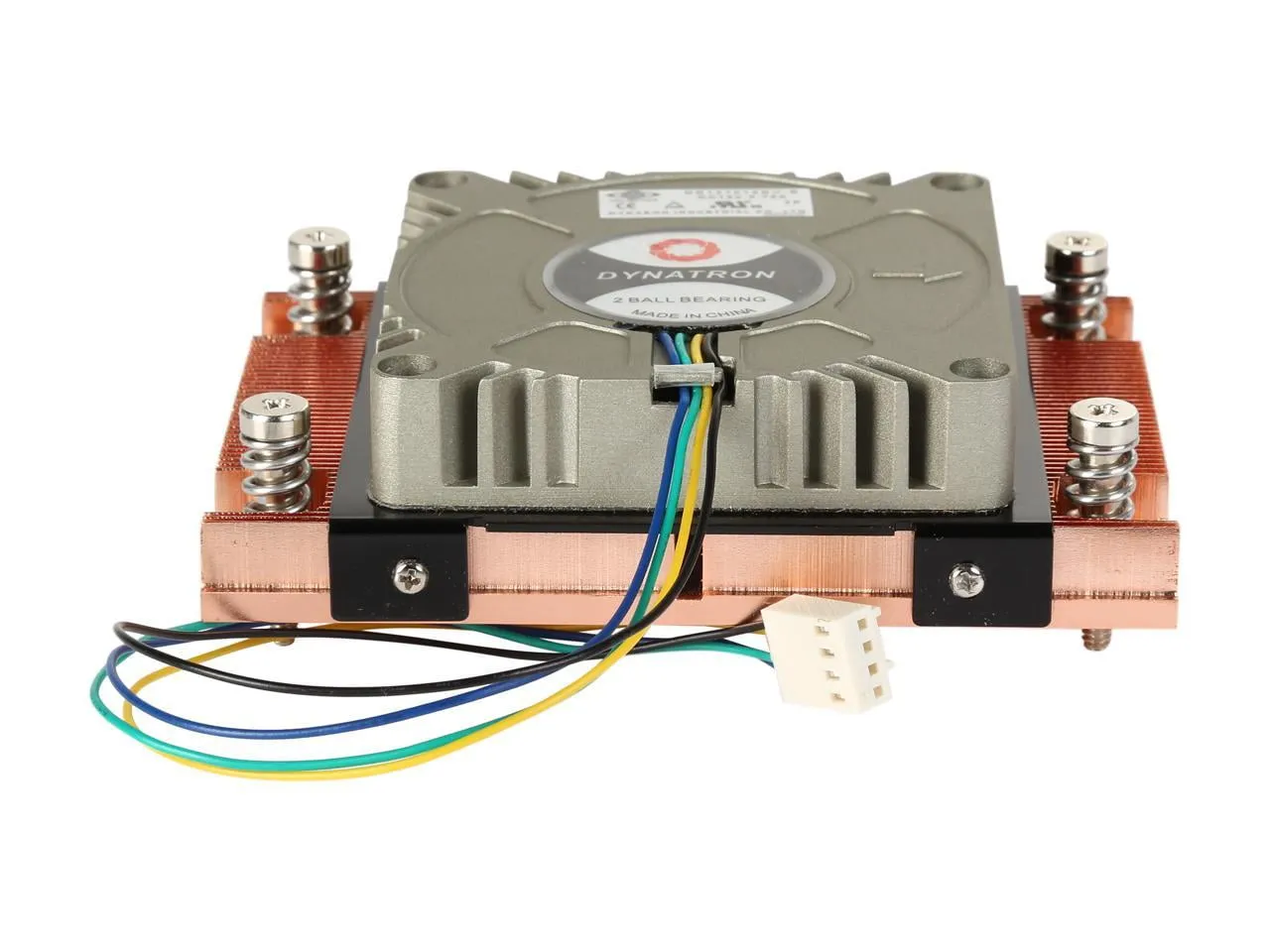

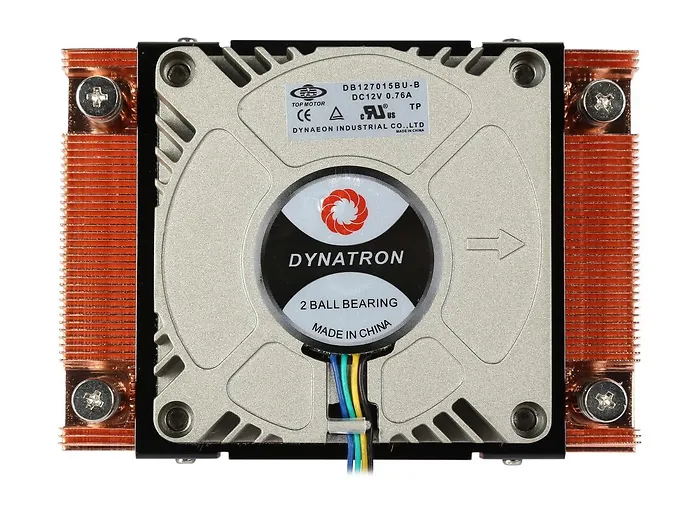

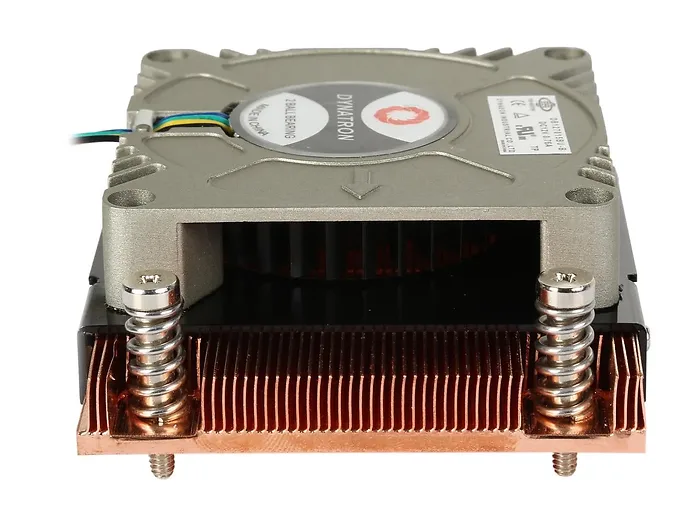

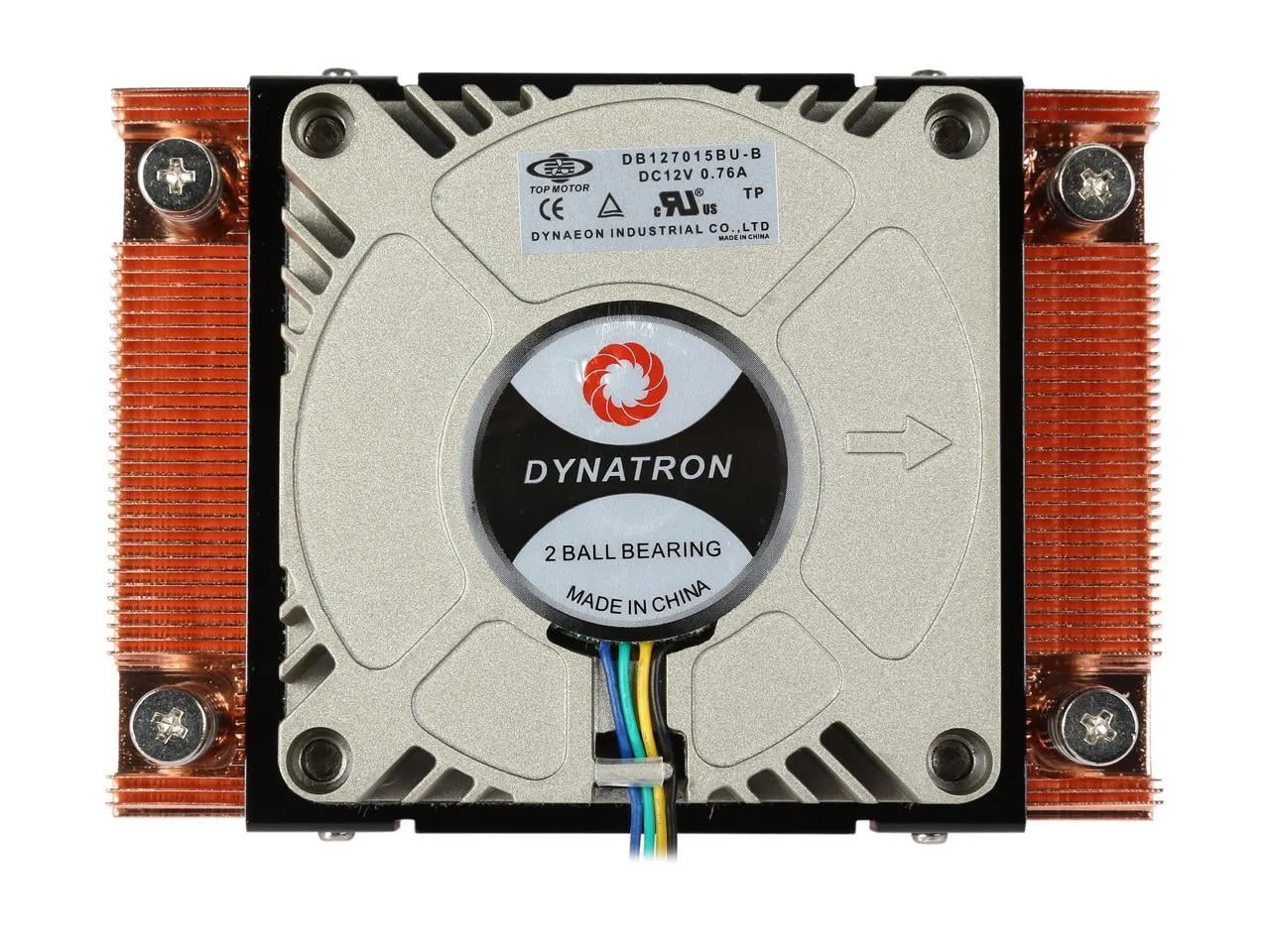

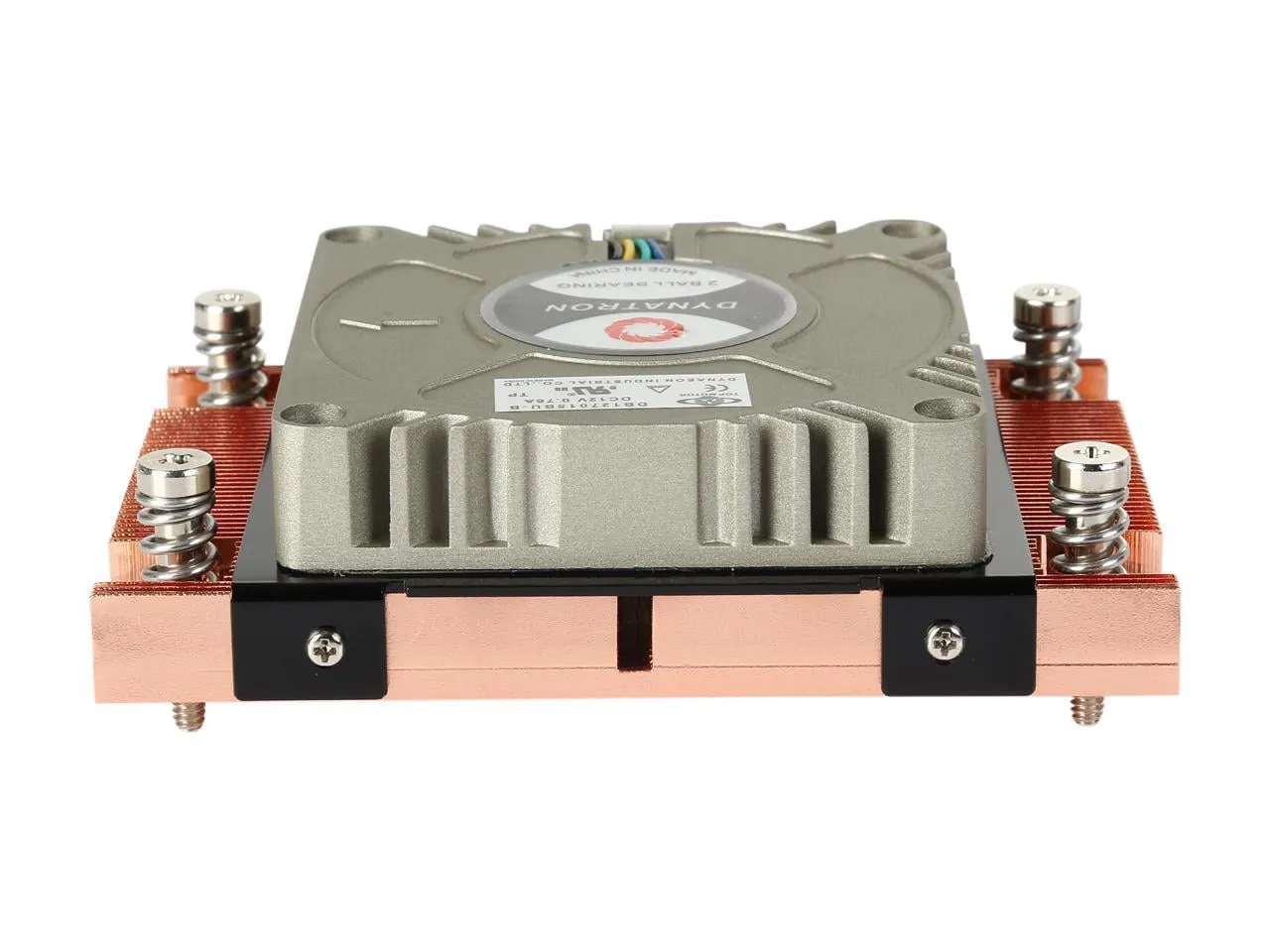

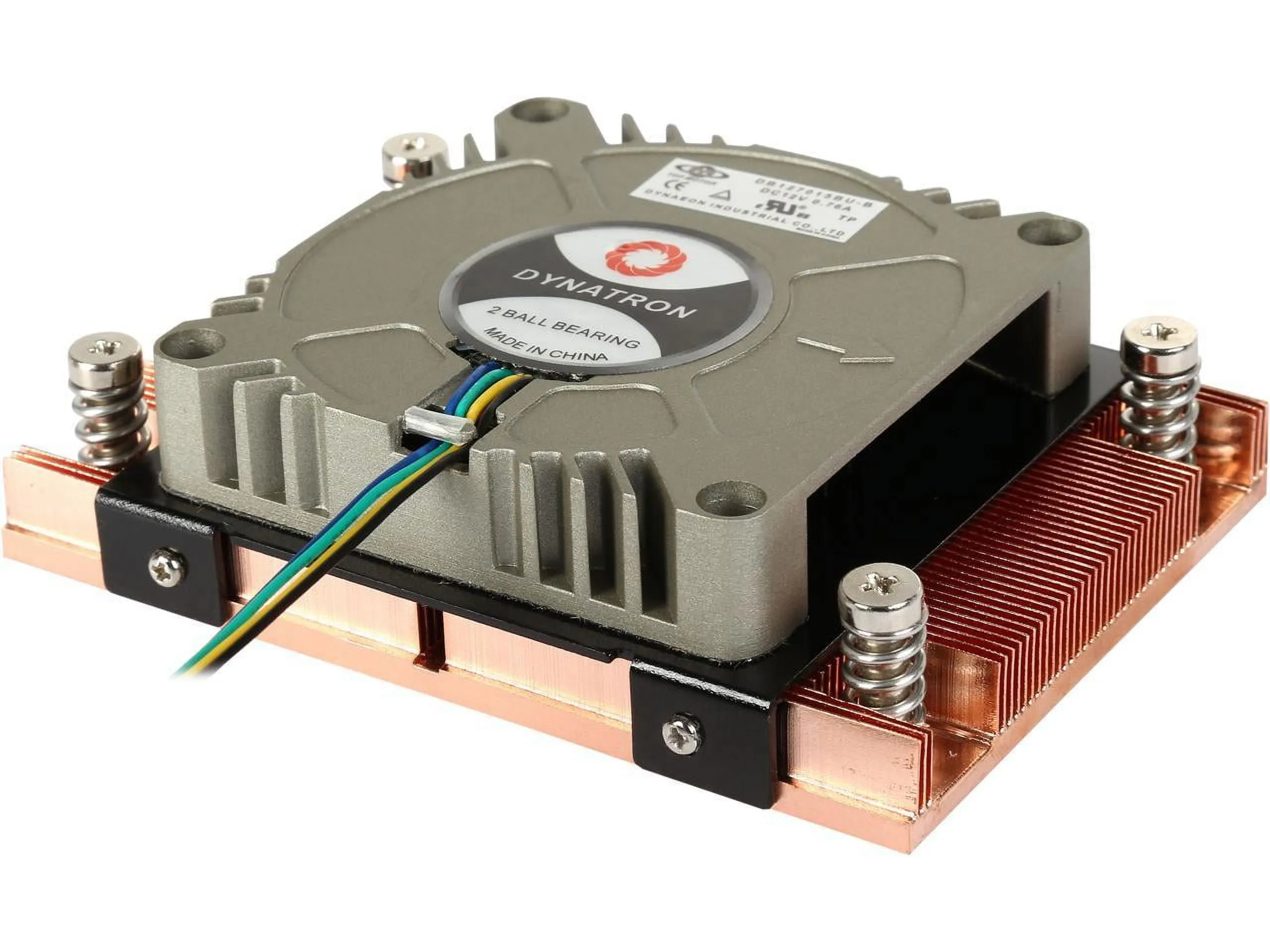

Dynatron A18 Fan Amd Am4 Processor 1u Server 70x70x15mm 12v 95w 2xball Bearing Retail
by Dynatron
| Price: | $77.53 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 8 left in stock order soon
The Dynatron A18 is a high-performance cooling fan designed specifically for AMD AM4 processors. Measuring at 70x70x15mm, this fan ensures optimal airflow and efficient heat dissipation in 1U server environments. With a reliable dual ball bearing design and a power rating of 12V 95W, it provides a robust cooling solution to maintain system stability during demanding operations.
Lightweight and compact, the A18 is perfect for tight server spaces while still delivering powerful cooling required for high-performance CPUs. Its quality construction ensures longevity, making it an excellent choice for both personal and enterprise-level setups.
Specifications
CPU SupportAMD
CPU Socket
AM4
Solution
1U Server
Dimensions
106 x 76 x 27.5 mm
Weight
450g +- 5g
Material
Copper 1100 with Skived Fins
Fan Dimension
70 x 70 x 15 mm
Speed
At Duty Cycle 20%: 1100 RPM +-200 RPM
At Duty Cycle 50%: 2600 RPM +- 10% RPM
At Duty Cycle 100%: 6000 RPM +- 10% RPM
Power
At Duty Cycle 20%: 0.6 W
At Duty Cycle 50%: 1.2 W
At Duty Cycle 100%: 8.8 W
Bearing
2 Ball Bearing
Rated Voltage
12V
Air Flow
At Duty Cycle 20%: 2.5 CFM
At Duty Cycle 50%: 5.8 CFM
At Duty Cycle 100%: 14.3 CFM
Noise Level
At Duty Cycle 20%: 19.1 dBA
At Duty Cycle 50%: 34.2 dBA
At Duty Cycle 100%: 53.8 dBA
Air Pressure
At Duty Cycle 20%: 1.25 mm-H2O
At Duty Cycle 50%: 7.0 mm-H2O
At Duty Cycle 100%: 50.46 mm-H2O
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed
Item Dimension (L inchxW inchxH inch)
5 x 3 x 2 Weight
1.20lb Warranty Information
1 Year
