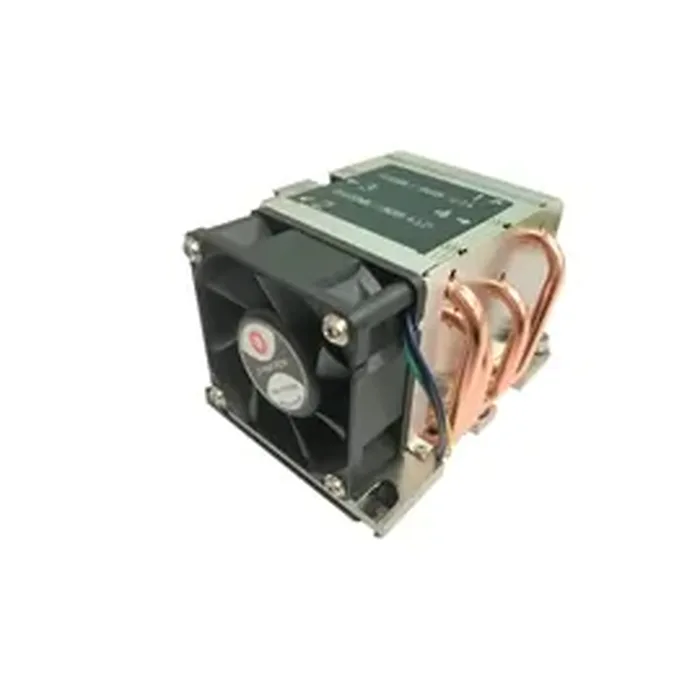

Dynatron B5 Fan 2u Intel Lga3647 Narrow Ilm Pwm Fan Alum Hs With Heatpipe 205w Brown Box
by Dynatron

Price:  $59.24
MFG Part:  B5
UPC:  855700016031
Condition:  New

Currently Unavailable.

Ships from and sold by Aztek Computers.

Added On: Sep 1, 2022 | Updated On: Mar 2, 2024 | Views: 200


FeaturesSupports Intel Socket FCLGA 3647 Narrow ILMAluminum heatsink with heatpipe4-pin PWM Controlled FanSupports up to TDP 205 WattsRecommended for 2U Server and upSpecificationsCPU Support: Supports Intel FCLGA 3647Connection: 4 Pin (PWM)Voltage: 12VSpeed: At Duty Cycle 20%: 1400 RPMPerformance: At Duty Cycle 20%: 8.12 CFMVolume: At Duty Cycle 20%: 16 dBAAir Pressure: At Duty Cycle 20%: 0.58mm-H2OLead Wire Pin Out: Pin1- (-), Pin2- (+)Weight: 1.03 lbs- SKU: AZTY22723


Specifications

CPU Support
Intel CPU Socket
FCLGA3647 Solution
2U Server and Up Material
Aluminum Heatsink with Heatpipe Embedded Fan Dimension
60 x 60 x 25 mm Speed
At Duty Cycle 20%: 1400 +-200 RPM
At Duty Cycle 3400 +- 10% RPM
At Duty Cycle 100%: 7000 +- 10% RPM
Rated Voltage
12V Bearing
2 Ball Bearing Power
At Duty Cycle 20%: 0.90 W
At Duty Cycle 50%: 2.04 W
At Duty Cycle 100%: 5.40 W
Air Flow
At Duty Cycle 20%: 8.12 CFM
At Duty Cycle 50%: 20.31 CFM
At Duty Cycle 100%: 40.60 CFM
Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 35 dBA
At Duty Cycle 100%: 50 dBA
Air Pressure
At Duty Cycle 20%: 0.58mm-H2O
At Duty Cycle 50%: 3.65 mm-H2O
At Duty Cycle 100%: 14.58 mm-H2O
Lead Wire Pin Out
Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
Thermal Grease
Shin-Etsu 7762 Pre-printed Weight
2.00lb Warranty Information
1 Year
