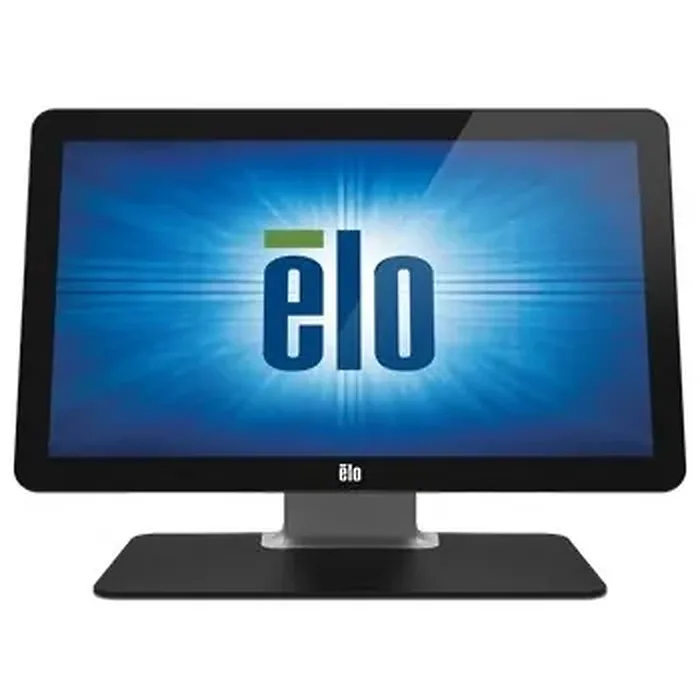

Elo E396119 Et2002l2uwa1g
by ELO

Specifications

Enclosure Color
Black Touch Technology and Capacity
PCAP (Projected Capacitive) - 10 Touch Diagonal Size
19.5 diagonal, Active matrix TFT LCD (LED) Aspect Ratio
16:9 Resolution
1920 x 1080 at 50, 60Hz Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 576 50Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz Viewing Angle
Horizontal: +/-89^o or 178^o total / Vertical: +/-89^o or 178^o total Number of Colors
16.7 million Brightness (typical)
LCD Panel: 250 nits
PCAP: 230 nits Response Time-total (typical)
20 msec Contrast Ratio
3000:1 Input Video Format
Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported Input Video Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 50 - 60 Hz Touch Interface
USB Input Voltage
12VDC +/- 5% 100-240VAC, 50/60Hz Input Connector
Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter) Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 18.4W
SLEEP: 0.33W
OFF: 0.24W Speakers
Two x 2W internal speakers On Screen Display
Accessible through switches along the bottom.
Controls: Menu, Power, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power Operating Temperature
0^oC to 40^oC / 32^oF to 104^oF
