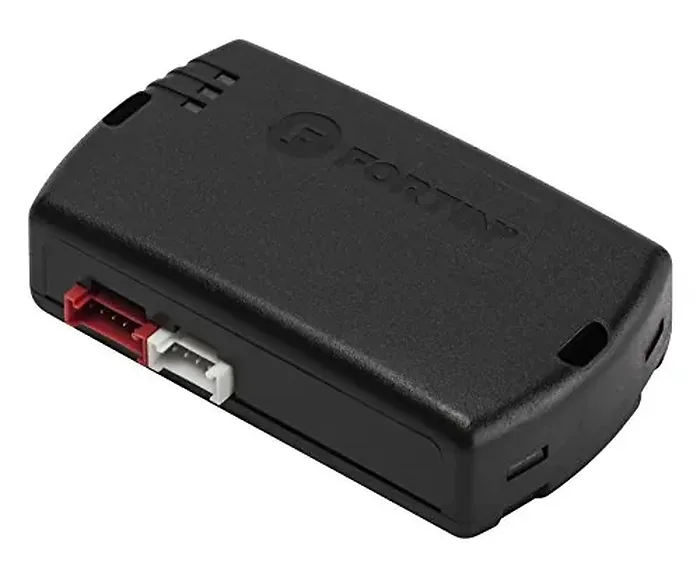

Fortin EVOALL Universal Allinone Data Bypass And Interface Module
by FORTIN

• ☆☆☆☆☆
• 2 customer reviews (jump to section)

In Stock.
only 3 left in stock order soon

The evo-all is an all-in-one data immobilizer bypass and doorlock interface combo module. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.product features3x on-board leds for simplified programming and diagnostics.1x preloaded firmware for maximum compatibility. [1]4-wire fortin 2-way datalink port for data-to-data (rs-232) communication with datalink equipped remote-starters and security-systems.[2]20-wire general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.self-learning algorithm automatically detects the vehicle during programming and adjusts accordingly.communication ports3x can-bus controllers.3x general purpose controllers (j1850, class 2, encrypted key etc.).2x on-board relays (spdt).1x analog controller 0-12vdc @ 20mv steps (passlock, mux).1x tb control port for tb-series transponder modules. [3]parts included1x evo-all control module (firmware preloaded). [4]1x 44-page installation and programming guide. [4]1x 20-pin general purpose harness [5].1x 4-pin fortin 2-way data-link harness. [2]1x 5-pin can-bus harness.1x 6-pin relay harness. [5][1] a firmware update may be required for the module to support vehicles produced after the date of manufacture.[2] using the 2-way datalink port with an equipped remote-starter and security-system greatly simplifies installation. Click here to learn more.[3] tb-series modules sold separately.[4] update firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) prior to the installation of this product.[5] secure clip harness. [single]
