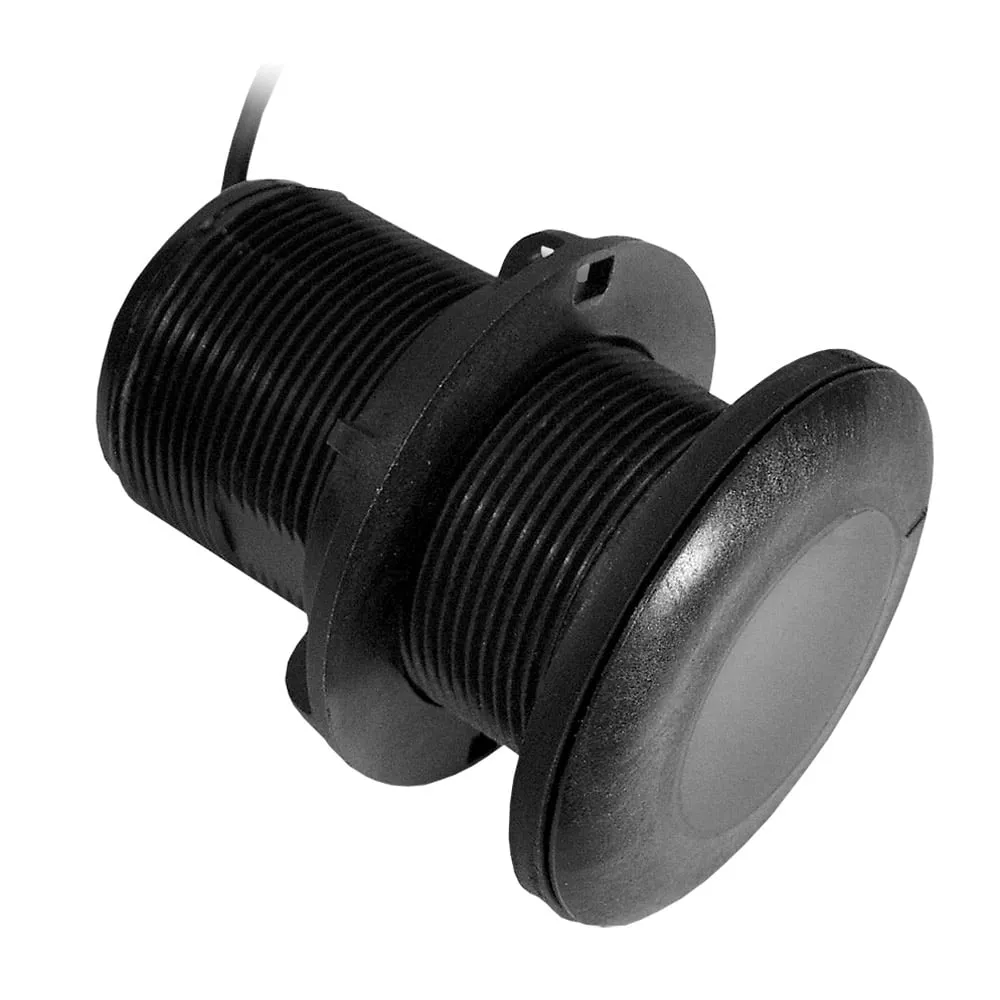

Garmin 010-10218-22 77200khz 20d Tilt Plastic P19 Th 8p
by Garmin
| Price: | $153.54 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon
| Freq. Khz | Power | Beam Width ( deg) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 77/200 | 500W | 45/15 | 900 | Depth,Temp | 8 | 16-24 deg Deadrise |
Specifications
Tilted Element™ Thru-HullMinimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echosounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for moreaccurate depth readings.
Applications
- Cruising powerboats and sailboats
- Sailboats
Features
- Depth only or Depth and temperature
- Fixed 20° tilted versions for 16° to 24° hull deadrise
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Plastic housing
- Boat Size: Up to 9M (30')
