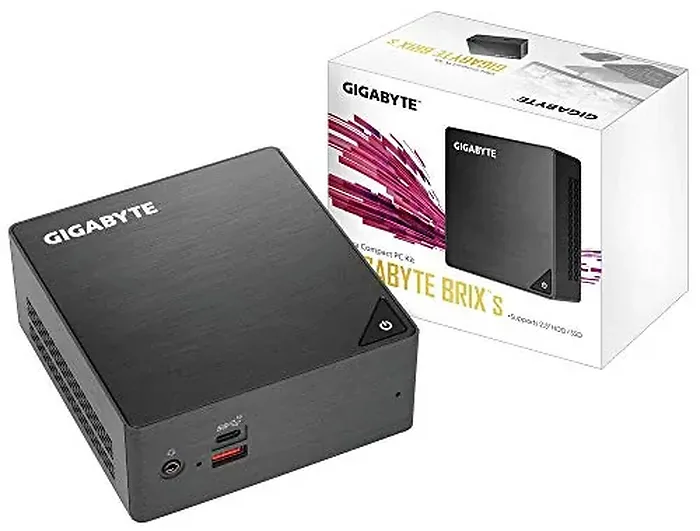

Gigabyte GB-BRI3H-8130 Brix Mini Pc With Intel Core I38130u
by GIGABYTE
| Price: | $360.45 |
| MFG Part: | GB-BRI3H-8130 |
| UPC: | 889523013977 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Feb 9, 2023 | Updated On: Dec 28, 2025 | Views: 4
The Gigabyte Brix Mini PC is a compact and powerful computing solution featuring the Intel Core i3-8130U processor. With support for up to 32GB of DDR4 RAM, this device is ideal for both home and office use. The Brix includes built-in Intel UHD Graphics 620, providing excellent visual performance for everyday tasks and media consumption. Designed for versatility, it offers multiple connectivity options including HDMI and Mini DisplayPort outputs, several USB ports, and supports both wired and wireless networks.
Specifications
- Motherboard Size: 105 x 110 mm
- CPU: Intel Core Dual Core i3-8130U, 3.4GHz / 2.2GHz
- Memory: 2 x SO-DIMM DDR4 slots, 2400MHz, Max. 32GB
- LAN: Gigabit LAN (Intel i219V)
- WiFi Card: Intel Dual Band Wireless-AC 3168
- Graphics: Intel UHD Graphics 620
- Audio: Realtek ALC255
- HDMI Resolution (Max.): HDMI 2.0a, 4096 x 2304 at 60Hz
- Mini DP Resolution (Max.): DP 1.2a, 4096 x 2304 at 60Hz
- Expansion Slots: 1 x M.2 PCIe X4/SATA, 1 x M.2 NGFF 2230 (occupied by WiFi+BT card)
- Front I/O: 1 x USB 3.1 Type C, 1 x USB 3.1, 1 x headset jack with MIC, 1 x Dual array Microphone
- Rear I/O: 1 x HDMI(2.0a), 1 x Mini DisplayPort (1.2), 2 x USB 3.0, 1 x RJ45, 1 x DC-In, 1 x Kensington lock slot
- Storage: Supports 2.5" HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
- USB3.1 Controller: Asmedia 3142
- Power Supply: Input: AC 100-240V, Output: DC 19V, 3.42A
- VESA: Bracket included, supports 75 x 75 and 100 x 100 mm
- Operating System Support: Windows 10 64-bit
- Environment: Operating Temperature: 0°C to +35°C, Storage Temperature: -20°C to +60°C
- Dimensions: 9" x 7" x 6" (L x W x H)
- Weight: 3.31 lbs
- Warranty Information: 3 Years
