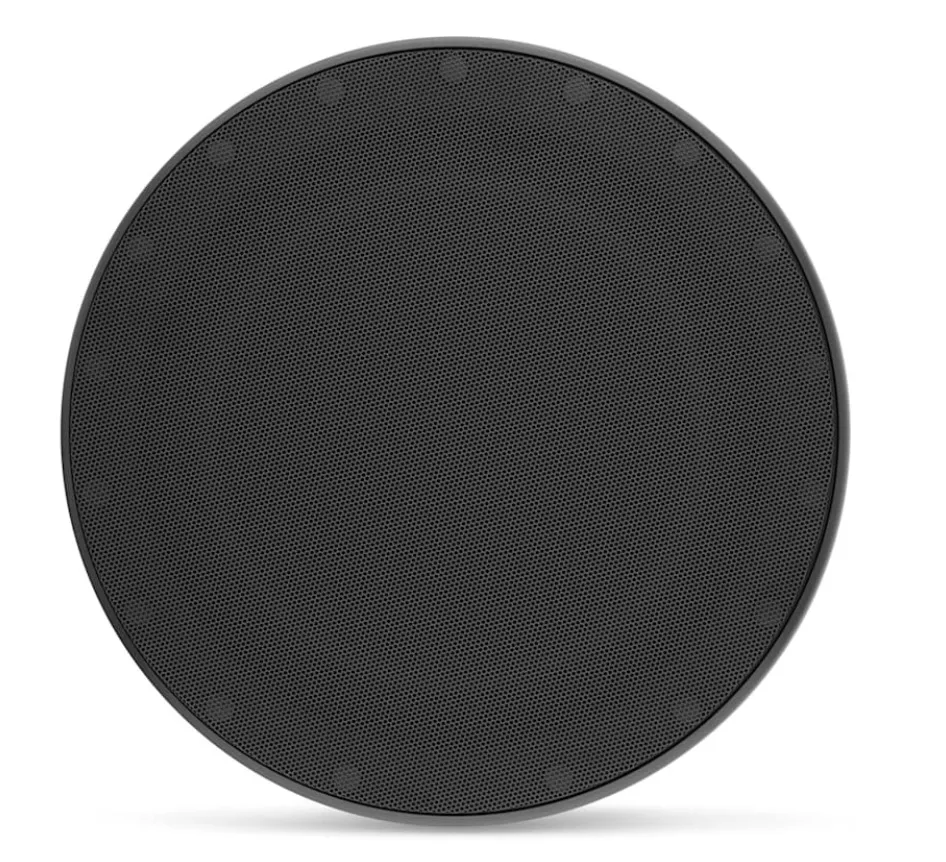

Garmin 010-03869-00 Jl Audio M6 10in Subwoofer Black Luxe Grille Single Speaker
by Garmin
| Price: | $348.99 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 4 left in stock order soon
JL Audio M6 10in Subwoofer Black LUXe Grille Single Speaker
M6-10IB-L-SbSb-4 93916
Model: 010-03869-00- WORLD-CLASS PERFORMANCE: This bass will impress you, not only with its sheer level but even more with its smoothness, balance and precision.
- MODEL SPECIFIC: These specialized versions are made for specific applications and optimized to perform in compact enclosures or in infinite baffle installations without dedicated enclosures.
- POWERFULLY EFFICIENT: M6 marine subwoofers are designed to benefit from operation with quality amplification.
- DMA-OPTIMIZED WOOFERS: Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
- REAL MARINE DUTY: For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
Optimized for high-powered operation, M6 marine subwoofers can be installed in various applications and are built to withstand the rigors of marine use.
Specifications| 10 in | |
| Color | Black |
| Physical dimensions (Diameter) | 10.75in (273 mm) |
| Physical dimensions (Depth) | 7.53in (191 mm) |
| Weight | 13.2 lbs (6.0 kg) |
| Speaker type | Infinite Baffle or Enclosed-use Subwoofer |
| Continuous power handling (RMS) | 250 W |
| Sensitivity (SPL @ 1 W/1 m) | (IB): 86.1 dB, (W): 86.4 dB |
| Nominal impedance | 4 Ohms |
| Recommended amplifier power (RMS) | 75-250 W |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 3 years |
| Speaker connections | Spade Connectors |
| Mounting Dimensions | |
| Mounting diameter clearance | 6.98in (177 mm) |
| Frontal grille protrusion | 0.55in (14 mm) |
| Mounting hole | 10.5625in (268 mm) |
| Bolt hole circle | 11.46in (291 mm) |
| Driver displacement | 0.099 cu ft (2.80 L) |
| Free Air Resonance (FS) Parameters | (IB): 43.76 Hz, (W): 34.58 Hz |
| Electrical Q (Qes) | (IB): 0.907, (W): 0.522 |
| Total Q (Qts) | (IB): 0.840, (W): 0.496 |
| Equivalent Compliance (Vas) | (IB): 0.98 cu ft (27.75 L), (W): 1.22 cu ft (34.49 L) |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | (IB/W): 0.52in (13 mm) |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | (IB/W): 50.11 in sq (0.0323 m sq) |
| DC resistance (RE) | (IB): 4.543 Ohms, (W): 3.619 Ohms |
What's in the Box:
- One marine subwoofer
- One grille
- Six stainless steel mounting screws
- Six stainless steel washers
- Grille removal tool
