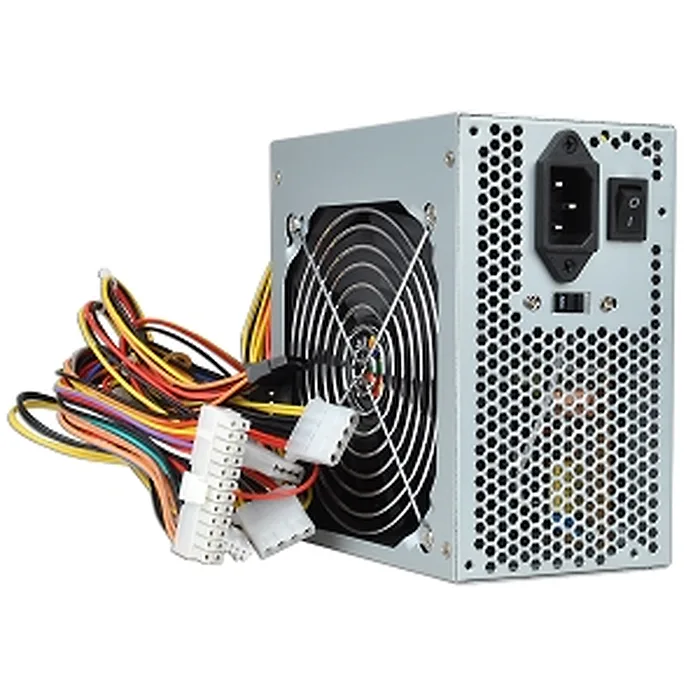

Logisys PS550E12 550w 20+4pin Atx Power Supply Wsata Large120mm Ball Bearing Cooling Fan For Quiet Performance
by Logisys
| Price: | $78.33 |
| MFG Part: | PS550E12 |
| UPC: | 862626001565 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Computers.
Added On: Oct 25, 2022 | Updated On: Apr 14, 2025 | Views: 13
- Notes:
- Model: PS550E12
- UPC: 8 62626 00156 5
- Product Requirements:
- ATX case
- ATX motherboard
- Available power outlet
Specifications
- Logisys 550W ATX Power Supply
- General Features:
- 20/24 pin ATX connector
- 550-watt power supply
- Large 120 mm ball bearing fan for quiet performance (75 CFM /2000 RPM)
- One (1) 12-inch ATX power connector
- One (1) 12-inch 12V ATX power connector
- Two (2) 12-inch SATA power connector
- Four (4) 12-inch 4-pin large Molex power connectors
- One (1) 12-inch 4-pin small floppy power connector
- Supports Intel Pentium 4 and AMD motherboards
- Low noise and ripple
- Short circuit and over-voltage protection
- Thermal overload cut-off protection
- Power Specifications:
- 110 - 250V switchable power supply (100-120 VAC, 10A; 200-240VAC, 5A)
- +3.3V / 30A
- +5V / 38A
- +12V / 25A
- -12V / 0.8A
- -5V / 0.5A
- +5 Vsb / 2A
- Unit Dimensions:
- 3.25 x 6 x 5.5-inches (H x W x D, approximate)
- Regulatory Approvals:
- FCC
- CE
- UL
- CSA
- Semko
- Demko
- Nemko
- Femko
- C-Tick
- BSMI
- TUV
