Broadcom 05-50011-00 Lsi Logic Controller Card Megaraid 946016i 16port 12gbs Sassata Pci Express3.1 Retail
by Broadcom

• ☆☆☆☆☆
• 1 customer reviews

Currently Unavailable.

Ships from and sold by Aztek Computers.

Added On: Jan 13, 2024 | Updated On: Feb 7, 2026 | Views: 12

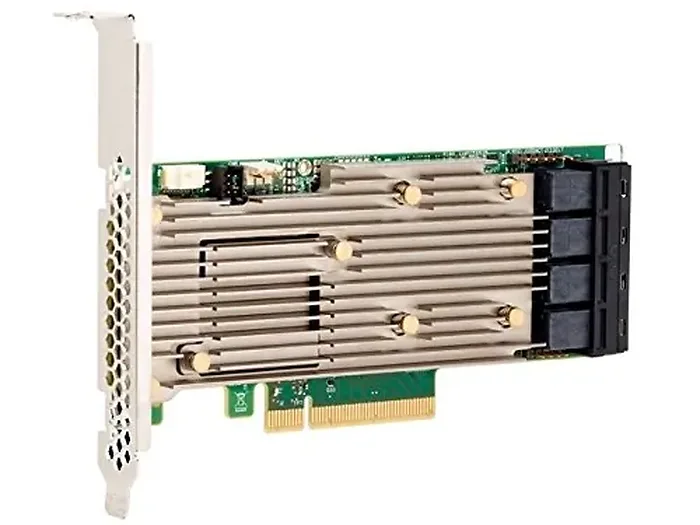

Data center, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection, flexibility and performance today's applications and end users demand. The MegaRAID 9460-16i Tri-Mode Storage Adapter is a 12Gb/s SAS/SATA/PCIe (NVMe) controller card that addresses these needs by delivering proven performance and RAID data protection for a range of high-end server storage applications.Broadcom's Tri-Mode SerDes Technology enables the operation of NVMe, SAS or SATA devices in a single drive bay, allowing for endless design flexibility.• Connect up to 255 SAS/SATA devices or 24* NVMe devices per controller• Fits into rack-mounted servers with low-profile form factor and side-mounted SAS connectors• Support critical, high-bandwidth applications with PCIe® 3.1 connectivity• Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60• Add more protection and peace of mind with CacheVault® flash cache protection Lifecycle Active Distrib. Inventory No RAID Management Software LSI Storage Authority (LSA), StorCLI (command-line interface), HII (UEFI Human Interface Infrastructure) Cache Protection CacheVault CVPM05 Physical Dimensions Low profile 6.127 inch x 2.712 inch Host Bus Type x8 lane PCI Express 3.1 Cache Memory 4GB 2133 MHz DDR4 SDRAM Internal Ports 16 Data Transfer Rates 12 Gb/s SAS-3 and 8 GT/s PCIe Gen 3 (NVMe) Compliant Devices Supported SAS/SATA: 255, NVMe: 4 x4, up to 24 x2 or x4 Internal Connectors 4 Mini-SAS HD x4 SFF-8643 Operating Temperature 10o to 55oC Operating Voltage (V) +12V +/-8%, 3.3V +/-9%OS Microsoft Windows. Contact Oracle support for Oracle Solaris driver or software support. See www.broadcom.com/support/down-load-serach for details on versions. Regulatory Certifications Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 and 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE I/O Processor / SAS Controller SAS3516 dual-core RAID-on-Chip (ROC)Item Dimension (L inchxW inchxH inch)11 x 7 x 2Weight1.00 lbWarranty Information3 Years
