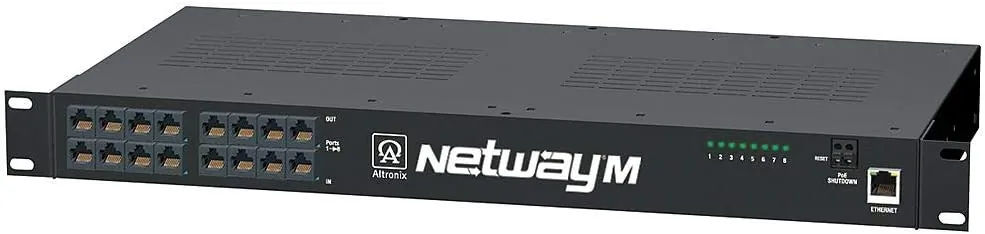

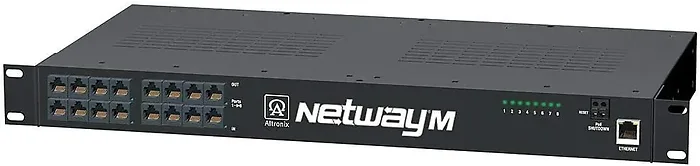

Altronix NETWAY8M Managed Poe Midspan 8 Port 10100 30w Max Per Port 150w Total Power Web Browser 115vac Input
by Altronix
| Price: | $68.00 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Unlock the power of your surveillance system with the Altronix NetWay8M Managed Midspan. Designed to provide seamless integration and reliable performance, this innovative device offers unparalleled flexibility for powering and connecting PoE compliant cameras and edge devices. With support for distances of up to 100 meters per port and the ability to extend this range by an additional 100 meters using the NetWayXT repeater module, you can customize your setup to meet the unique needs of your environment. Plus, with features like programmable PoE shutdown, auto detection of legacy devices, and individual port monitoring, managing your network has never been easier. Trust in the Altronix NetWay8M to deliver the power and reliability your security system demands.
Specifications
Features:
- Provides power and passes data for PoE compliant cameras/edge devices
- Supports cameras/edge devices up to 100m from the unit
- Utilizes NetWayXT repeater module to extend distance by an additional 100m (up to 200m total)
- Can achieve a maximum range of 600m with multiple repeaters
- Capable of supporting non-PoE compliant fixed and PTZ IP cameras using NetWay1512 or NetWay3012 adapters
- Programmable PoE shutdown for each port to reset cameras/edge devices
- Auto detection and protection of legacy non-PoE cameras/edge devices
- LAN or laptop connection for programming of PoE shutdown and port monitoring
- Illuminated master power disconnect circuit breaker with manual reset
- Individual port status LEDs
- Modular 1U standard EIA 19" rack mount chassis
Specifications:
- Input: 115VAC 60Hz, 3A
- Power: Eight (8) ports providing up to 30W max. full power per port, total power 150W
- IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant
- Short circuit protection
- Operating Temperature: -20°C to 40°C (-4°F to 104°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Relative Humidity: 85% +/- 5%
- System AC input VA requirement: 345VA
- Operating Altitude: -304.8 to 2,000m
- Dimensions: 19.12"W x 1.62"H x 8.5"D (486 mm W x 42 mm H x 216 mm D)
- Product Weight: 6.17 Lbs. (2.8 kg)
- Shipping Weight: 7.47 Lbs. (3.39 kg)
