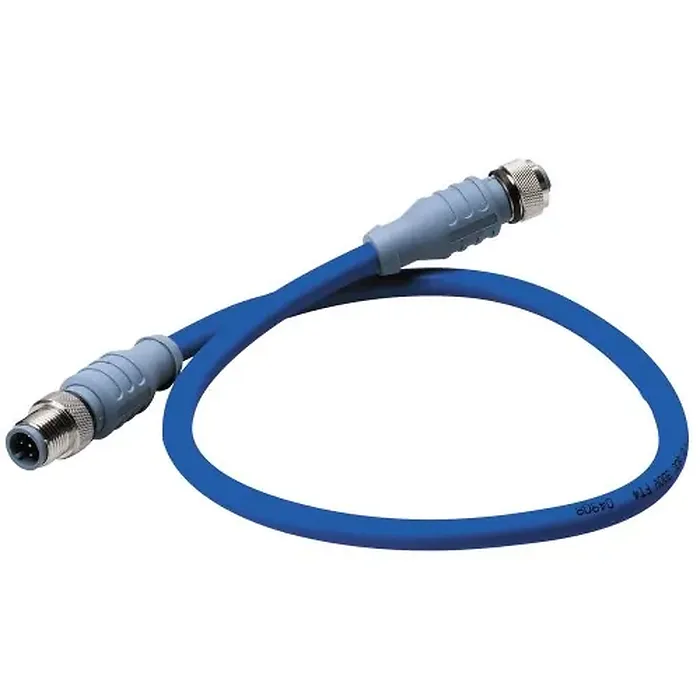

Maretron 3 Meter Double-Ended Cordset - Blue

This high-quality double-ended cordset is designed for marine use, featuring a durable construction that ensures reliability in harsh environments. With a current rating of 4.0 Amps and a voltage rating of 250 V, this cordset is ideal for various applications.

Mechanical Specifications:

• Contact Carrier Material/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Material/Color: Thermoplastic PUR/Blue-Gray
• Contact Material/Plating: Brass/Gold
• Coupling Nut Material/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59 inches

Electrical Specifications:

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

Cable Specifications:

• Outer Jacket Material/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 AWG for data, 2x20 AWG for power, and a drain wire
• Shielding: Foil shielding for overall, power pair, and data pair

Environmental Protection:

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P
• Temperature Rating: -40°C to 80°C (-40°F to 176°F)

Approvals:

• (Cable) UL: PLTC 75°C Sunlight Resistant E90625, AWM 80°C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75°C, AWM I/II A/B 80°C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3
