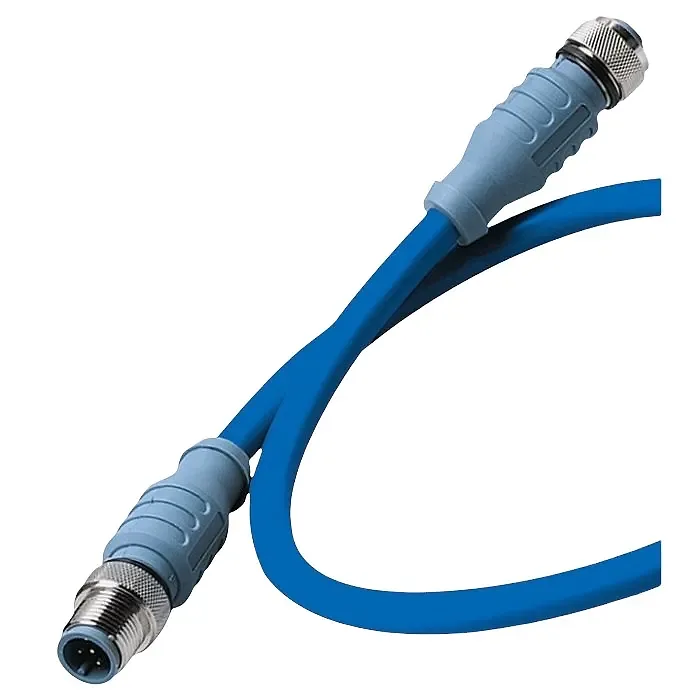

Teledyne DM-DB1-DF-10.0 Maretron Blue Mid Cable 10m Male To Female Connector
by TELEDYNE FLIR MARITIME US, INC
| Price: | $81.08 |
| MFG Part: |
| UPC: |
| Condition: |
Currently Unavailable.
Maretron Blue Mid 10 Meter Cable
Model: DM-DB1-DF-10.0UPC: 873804001999
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
Specifications| Thermoplastic PUR/Blue | |
| Molded Body Mat/Color | Thermoplastic PUR/Blue |
| Contact Mat/Plating | Brass/Gold |
| Coupling Nut Mat/Plating | Brass/Nickel |
| Connector Outside Diameter | 0.59 in |
| Electrical | |
| Current rating | 4.0 Amps |
| Voltage rating1 | 250v |
| Cable | |
| Outer Jacket Mat/Color | PVC/Blue |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
| Number of Conductors | 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire |
| Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
| Enviromental | |
| Protection class | IEC IP68, NEMA 1,3,4,6P |
| Temperature rating | -40 degC to 80 degC to (-40 degF to 176 degF) |
| Approvals | |
| (Cable) UL | PLTC 75 degC Sunlight Resistant E90625, AWM 80 degC 300V |
| (Cable) CSA | CMX-OUTDOOR-CMG LL54185 75 degC, AWM I/II A/B 80C 300V FT4 |
| NMEA | NMEA 2000(R) Approved |
| IEC | IEC 61162-3 |
