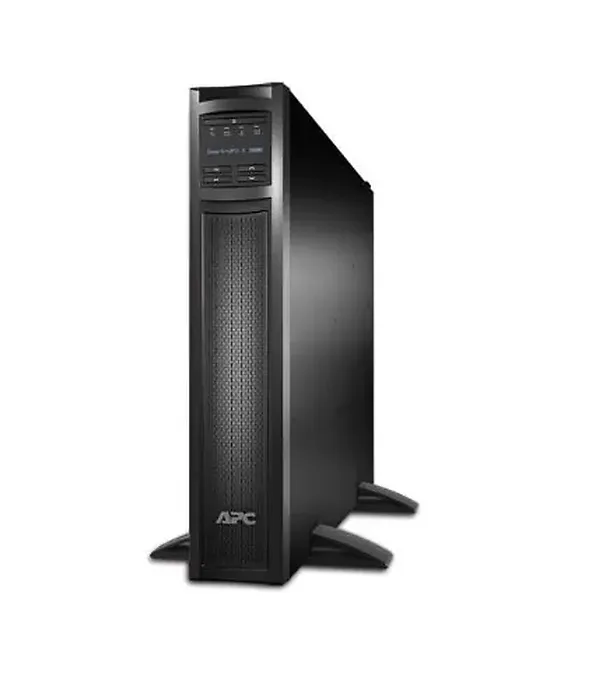

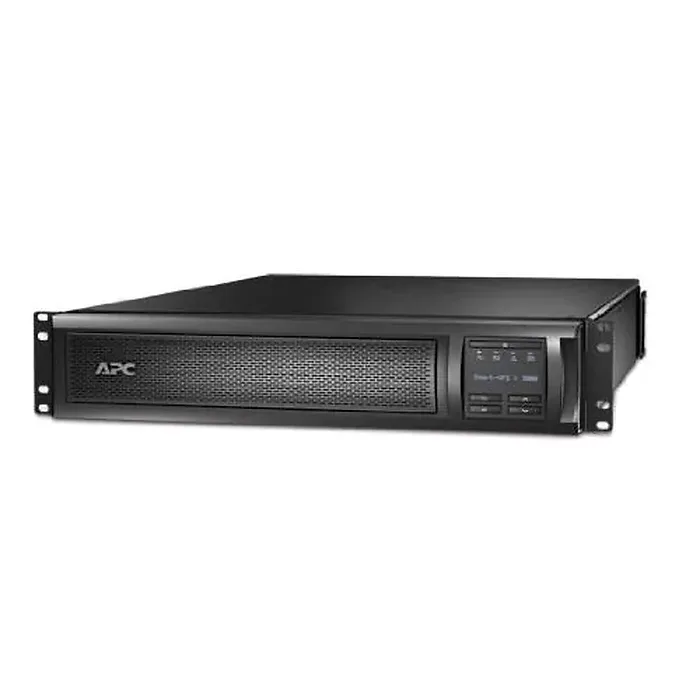

Apc SMX3000RMLV2U New Apc Ups Ext Run 3000va Rack 120v
by APC - Schneider Electric

Specifications

Output
Output Power Capacity :2700 Watts / 3000 VA
Max Configurable Power :2700 Watts / 3000 VA
Nominal Output Voltage :120V
Efficiency at Full Load :98%
Output Voltage Distortion :Less than 5% at full load
Output Frequency (sync to mains) :47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60 Hz nominal
Waveform Type :Sine wave

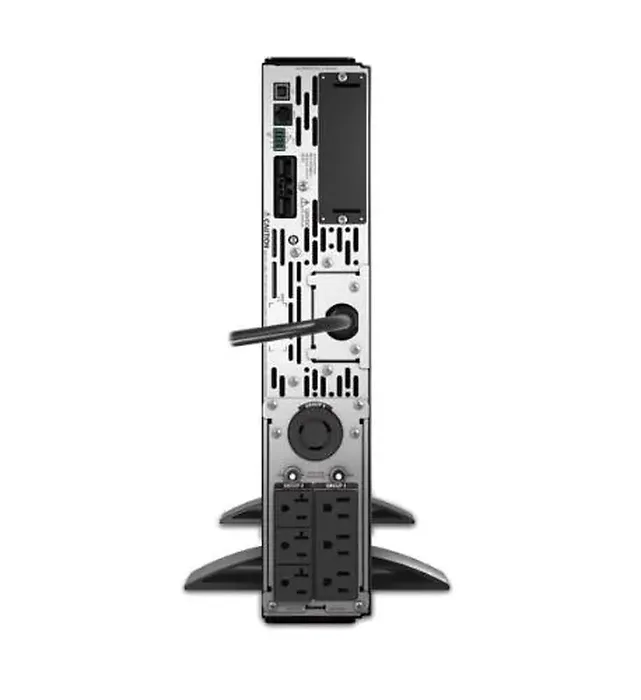

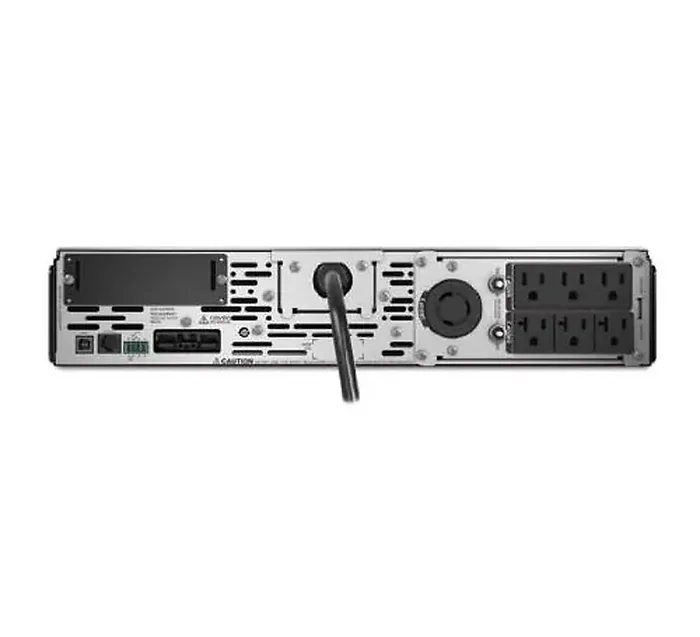

Output Connections :
(3) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-30R Input
Nominal Input Voltage :120V
Input Frequency :50/60 Hz +/- 3 Hz (auto sensing)
Input Connections :NEMA L5-30P
Cord Length :8 feet (2.44 meters)
Transfer Time :2-4 ms Batteries and Runtime
Battery Type :Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time :3 hour(s)
Replacement Battery :APCRBC117 Communications andnagement
Interface Port(s) :SmartSlot
Available SmartSlot Interface Quantity :1
Control panel :LED status display with On Line : On Battery : Replace Battery and Overload indicators,Multi-function LCD status and control console
Audible Alarm:Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) :Yes Surge Protection and Filtering
Surge energy rating :540 Joules
Filtering :Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Regulatory Approvals :
BSMI,CSA,EN 50091-2,EN 55022 Class A,FCC Part 15 Class A,NOM,TUV,UL 1778,VCCI Class A Item Dimension (L"xW"xH"):
9.58 x 23.48 x 34.23

Weight:
99.79 lb

Warranty Information
2 Years
