Newmar 32-12-35 Newmar 12v Dc Converter For Marine And Rv
by Newmar Power
| Price: | $1164.25 |
| MFG Part: |
| Condition: |
Currently Unavailable.

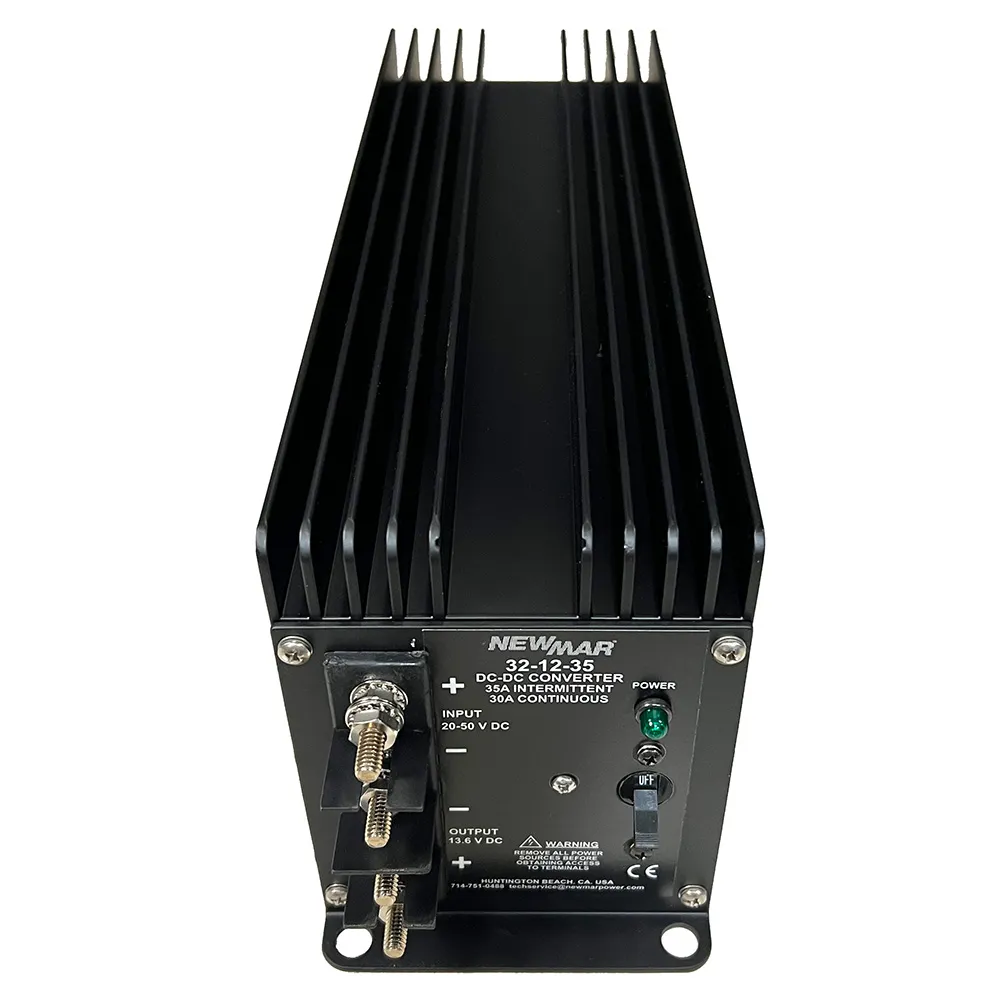

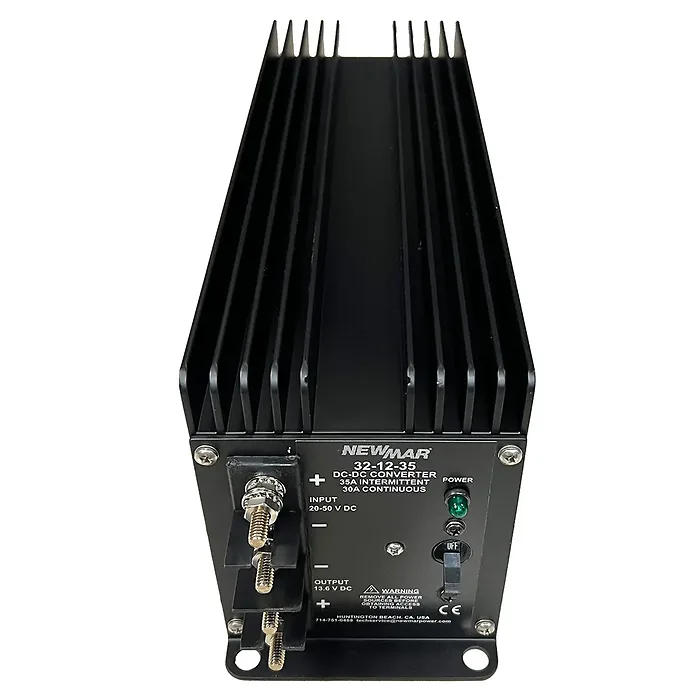

Newmar 32-12-35 12V DC Converter
The Newmar 32-12-35 DC Converter is designed to convert a wide input voltage range of 20-50 VDC into a stable 12 VDC output, ideal for powering communication and navigation equipment in negative ground systems. This unit is robust, ensuring reliability in hostile environments while providing optimal performance.
Key Features:
- Excellent voltage regulation maintained within 1% under various line and load conditions.
- Enhanced cooling through large heat sink fins and effective heat dissipation for a longer lifespan.
- Durable construction with a polyurethane conformal coating on PC boards and corrosion-resistant aluminum casing.
Protection and Specifications:
- Includes numerous protection circuits: current limiting, automatic thermal shutdown, short circuit proof, reverse polarity, and overvoltage protection.
- Specifications include:
- Input Voltage: 20-50V
- Output Voltage: 13.6V
- Continuous Output Amps: 30A
- Intermittent Output Amps: 35A
- Case Size: 6.0 x 4.7 x 16.0 inches
- Weight: 12 lbs.
- Efficiency: 85%, typical.
Specifications
- Input Voltage Range: 20-50 VDC
- Output Voltage: 12 VDC with adjustable settings
- Peak Output Current: 35 Amps (intermittent)
- Continuous Output Current: 30 Amps
- Robust thermal management with large heat sinks
- Enhanced durability with conformal coating and anodized aluminum case
- Protection against current overload, thermal shutdown, and overvoltage
- CE certified for compliance with safety standards
