Newmar CS-1 Newmar Connector Strip F 16g Wire
by Newmar Power
| Price: | $28.12 |
| MFG Part: | CS-1 |
| UPC: | 071030498716 |
| Condition: | New |
In Stock.
only 5 left in stock order soon
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Apr 2, 2026 | Views: 3

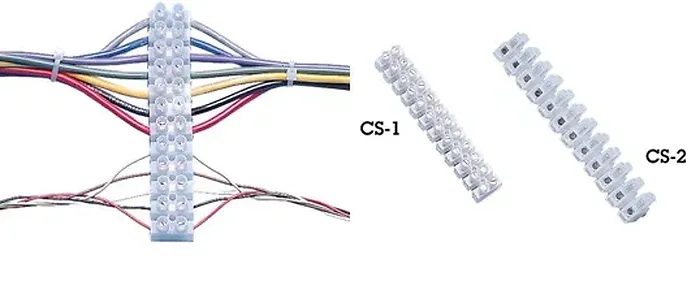

- Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.)
- Strips are easily cut to meet wiring requirements and space limitations.
| Model | # of Terminal Pairs | Max Wire Gauge | Max Amps* | Size |
| L X W X H | ||||
| CS-1 | 12 | 16 | 6 | 3.75" x .675" x .5" |
| CS-2 | 12 | 14 | 10 | 4.5" x .75" x .75" |
