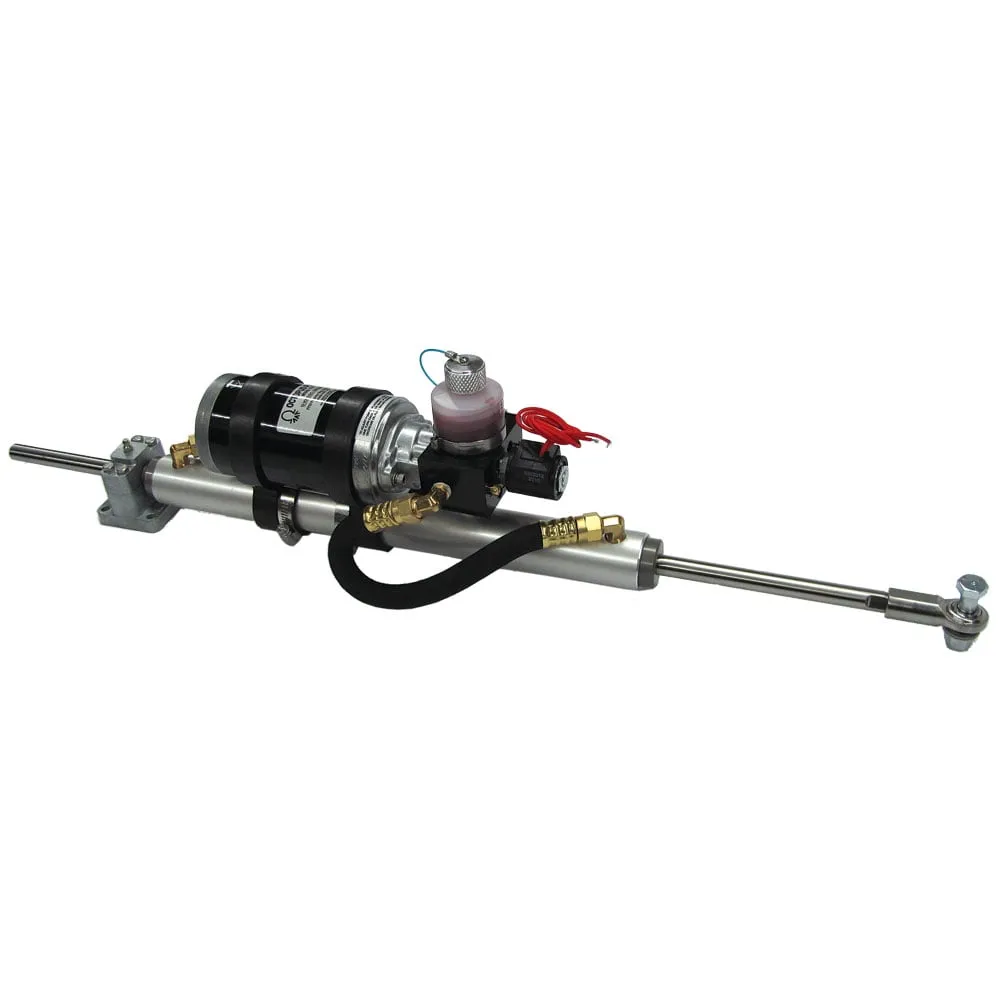

Octopus OCTAF1212LAM12 38mm Bore Linear Drive 12in Stroke Mounted Pump 12vdc
by Octopus
| Price: | $2149.46 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon
Octopus 38mm Bore Linear Drive
12 Stroke Remote Pump 12vDC
Model: AF1212LAM12- Average Current 4-6 amps
- Max Current 19amps
- 12vDC
- Cylinder Bore: 38mm
- Variable Flow Rate: 600cc-1.2 litre/min
- Stroke: 305mm/12in
- Hardover Time(Suggested): 14-16 sec
- Max Rudder Torque: 1
Specifications
- Average Current: 4-6 amps
- Max Current: 19 amps
- Operating Voltage: 12vDC
- Cylinder Bore: 38mm
- Variable Flow Rate: 600cc-1.2 litre/min
- Stroke Length: 305mm / 12in
- Suggested Hardover Time: 14-16 sec
- Max Rudder Torque: 1,200Nm / 10,600 lbin
- Peak Thrust: 400Kg / 882lbs
- Max Boat Length: 18m / 60'
