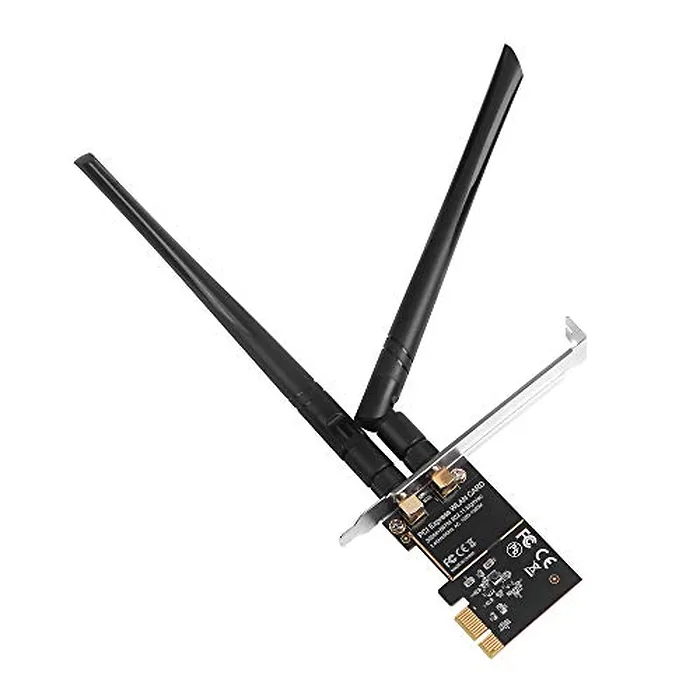

Siig LB-WR0011-S1 Pcie Expansion Quickly Adds 2t2r Dual Band Wifi Connectivity Via An Available Pc
by Siig

Specifications

Chipset:
RTL8812AE
PCI Express 2.1 (5.0 GT/s) compliant
PCI Express bus connector:
x1 PCI Express Industry Standards:
IEEE802.11.ac, IEEE802.11.n, IEEE802.11.b, IEEE802.11.g, IEEE802.11.a
Security:
WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit 128bit, IEEE 802.11x, IEEE 802.11i Data Rates:
5G up to 867M / 2.4G up to 300M
Out-Power 5G:
802.11.ac at 54m: 15dBm
802.11.ac at HT20: 15dBm
802.11.ac at HT40: 15dBm
802.11.ac at HT80: 13.5dBm
Out-Power 2.4G:
802.11.b at 11M: 18dBm
802.11.g at 54m: 15dBm
802.11.n at HT20: 15dBm
802.11.n at HT40: 14dBm
Sensitivity 5G_11ac:
HT80M_MCS9: -51dBm at 10% PER
HT40M_MCS7: -62dBm at 10% PER
HT20M_MCS7: -65dBm at 10% PER
Sensitivity 11N_2.4G
HT40M_MCS7: -62dBm at 10% PER
HT20M_MCS7: -65dBm at 10% PER
OFDM_54M: -68dBm at 10% PER
11b_11M: -81dBm at 10% PER
Product:
Color: Black
Connectors: 2 x 5dBi un-fixed Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: -14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
3 x 5 x 1
Weight
1.00 LB
Warranty Information
1 Year
