Specifications

The GLV/GLK18 series sensors help improve the efficiency of machines and systems. The design of the M18 plastic housing, the connection technology, and sensor properties are highly standardized. Concentrating on the key sensor requirements has produced a robust and reliable product series for DC and AC/DC voltage systems without any overengineering. The mounting set included in the scope of delivery and the optimized potentiometer design ensure fast assembly and easy configuration.

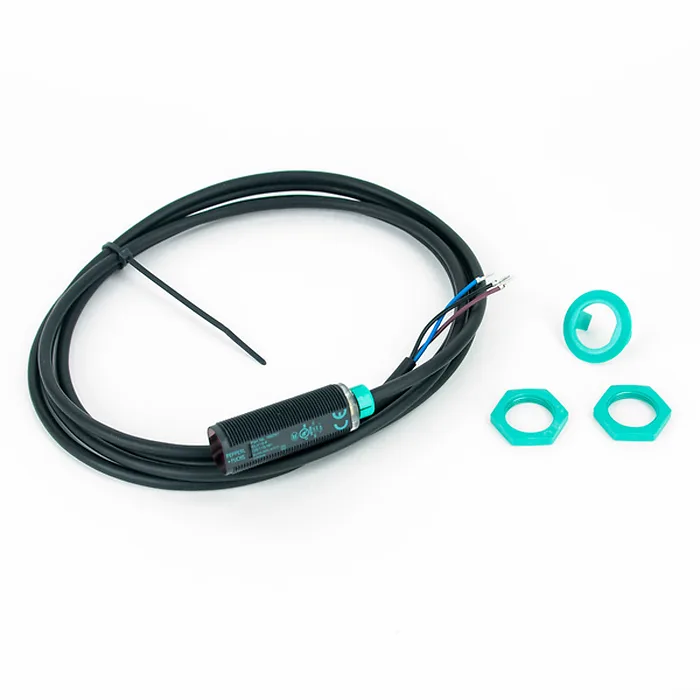

Model Number: GLK18-6/25/115/161 -- Retroreflective sensor with 2 m fixed cable

Features:

• Efficient Line in a short M18 plastichousing for standard applications
• Very high detection range
• 4 LEDs indicator for 360 visibility
• Version with front optical face
• Universal usage at different power supplies

Specifications:

Effective detection range 0-6.5 m
Reflector distance 0.05-6.5 m
Threshold detection range 8 m
Reference target reflector C110-2
Light source LED
Light type modulated visible red light , 640 nm
Diameter of the light spot approx. 300 mm at 8 m
Angle of divergence approx. 2
Optical face frontal
Ambient light limit 30000 Lux
Accessories provided Mounting aids
