Teledyne E70654 Raymarine Axiom2 Pro 9 Rvm No Transducer No Chart
by TELEDYNE FLIR MARITIME US, INC
| Price: | $3104.69 |
| MFG Part: | E70654 |
| UPC: | 723193843529 |
| Condition: | New |
In Stock.
only 3 left in stock order soon
Ships from and sold by Aztek Renew.
Added On: Mar 28, 2026 | Updated On: Apr 1, 2026 | Views: 2

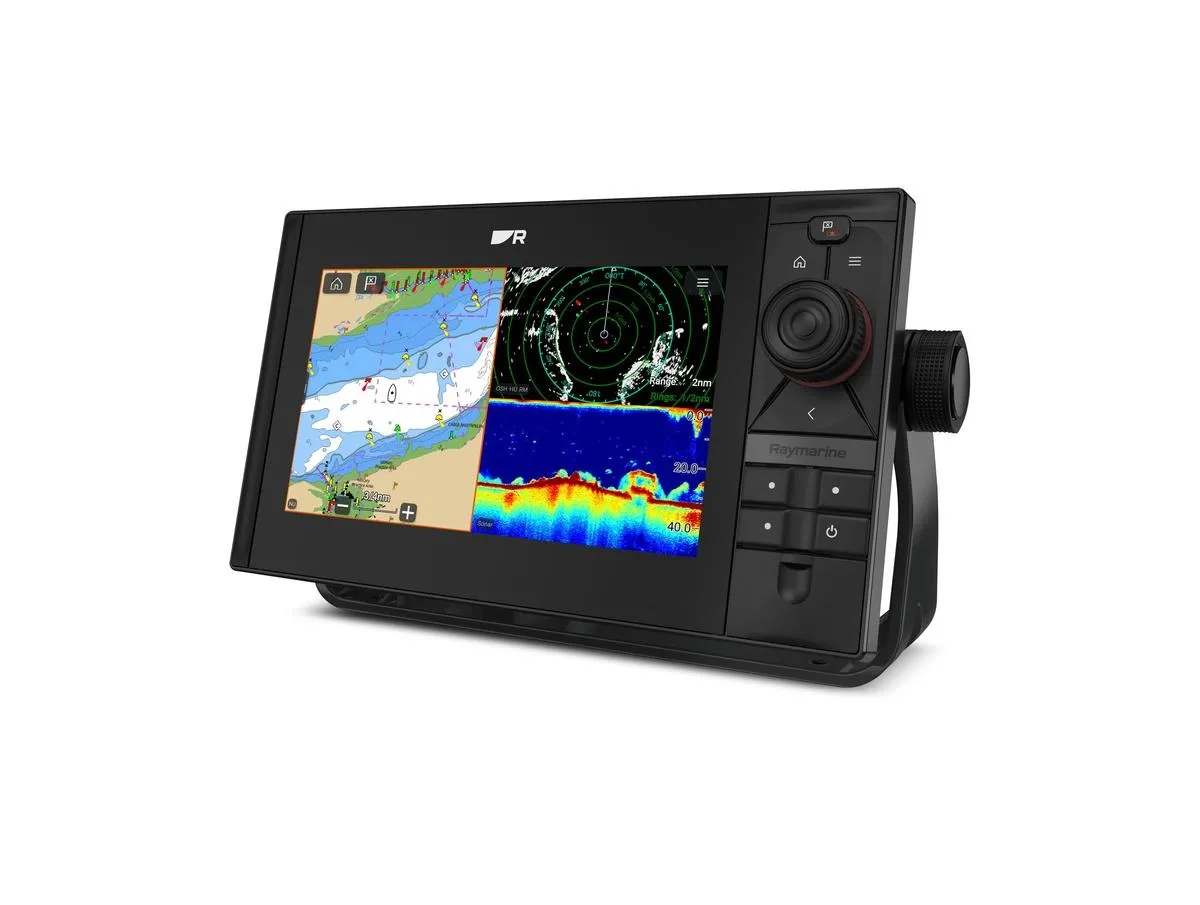

Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar
Model: E70654Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro's HybridTouchTM - a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.
Get underway quickly with Axiom 2 Pro's powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.
Axiom 2 Pro's HydroToughTM nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
Plan and plot your course with HybridTouchTM control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.
RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.
Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.
Specifications| Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in) | |
| Dimensions (Surface/Flush mounted) | Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in) |
| CONNECTIONS | |
| Ethernet connection | 2 RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 2000 connection | DeviceNet connector |
| Wi-Fi | Multiband - 2.4GHz, and 5Ghz 802.11b/g/n |
| Bluetooth | v4.0 |
| Accessory connection | USB Micro B |
| Internal storage | 64GB Solid State |
| External storage | 2 front mounted MicroSDXC card slots |
| Digital Video and Audio | HDMI Out Micro connector type D |
| Analog video connections | BNC Analog video input (on power cable) |
| Analog audio connections | RCA connectors via power cable |
| External GPS anternna | TNC connector |
| POWER | |
| Power consumption @ 12 V dc | 33.12 W |
| Power consumption @ 24 V dc | 30.96 W |
| Operating voltage range | 8 V dc to 32 V dc |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Off current @ 12 V dc | 11 mA (0.13 W) |
| Off current @ 24 V dc | 18 mA (0.43 W) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
| Current | 5 A |
| Fuse rating | 15 A |
| ENVIRONMENTAL | |
| Operating temperature | -25 degC to +55 degC (-13 degF to 131 degF) |
| Storage temperature | -30 degC to +70 degC (-22 degF to 158 degF) |
| Relative humidity | Up to 93% @ 40 degC (104 degF) |
| Waterproof rating | IPx6, IPx7 |
| LCD | |
| Size (diagonal) | 9.0 |
| Resolution | 1280 x 720 HD |
| Viewing angle | Top 88 deg / Bottom 88 deg / Left 88 deg / Right 88 deg |
| Type | IPS (In-Plane Switching) |
| Color depth | 24-bit |
| Illumination | 1300 nits / 1300 cd/m2 |
| Number of simultaneous touches | 1 to 16 |
| GPS (GNSS) | |
| Position Accuracy | Without SBAS: <= 15 metres 95% of the time |
