Raymarine T70160 Ev300 Solenoid Autopilot
by Raymarine
| Price: | $2587.99 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon
Raymarine EV300 Solenoid
Autopilot
Model: T70160- For vessels with solenoid controlled hydraulic steering
- Evolution Ai for superior performance
- No calibration required
- SeaTalkNG Network Compatible
- ACU-300 auxiliary power to SeaTalkNG network
Evolution EV-300 Solenoid Autopilot Kit without Drive for Power Vessels by Raymarine®. No fuss, easy to install and robust - the Evolution autopilot combines Raymarine's autopilot expertise, FLIR Systems' R&D, and advanced aerospace guidance technology to create Evolution Ai control algorithms that deliver a new level of accurate autopilot control.
Specifications| ACU Nominal Power supply | 12 V or 24 V |
| ACU Operating voltage range | 10.8 V to 31.2 V dc |
| ACU Power consumption (standby) — main power supply | 300 mA (12 / 24 V) |
| ACU Power consumption(standby) — SeaTalkng power supply | 20 mA (12 V) |
| ACU SeaTalkng LEN (Load Equivalency Number) | 1 |
| ACU SeaTalkng LEN (Load Equivalency Number) | 3 A at 12 V (fuse protected at 3 A) |
| ACU Data connections | SeaTalkng |
| ACU Waterproofing rating | drip resistant |
| ACU Operating temperature | -20°C to +55°C (-4°F to +131°F) |
| ACU Relative Humidity | max 93% |
| ACU Weight | 2.2 kg (4.84 lbs) |
| EV Sensor Nominal Power supply | 12 V (powered by SeaTalkng system) |
| EV Sensor Operating voltage range | 10.8 V to 15.6 V dc |
| EV Sensor Power consumption | 30 mA |
| EV Sensor SeaTalkng LEN (Load Equivalency Number) | 1 |
| EV Sensor Waterproofing rating | IPX 6 |
| EV Sensor Operating temperature | -20°C to +55°C (-4°F to +131°F) |
| EV Sensor Relative Humidity | max 93% |
| EV Sensor Sensors | 3-axis digital accelerometer; 3-axis digital compass and 3-axis gyro digital angular rate sensor |
| EV Sensor Weight | 0.29 kg (0.64 lbs) |

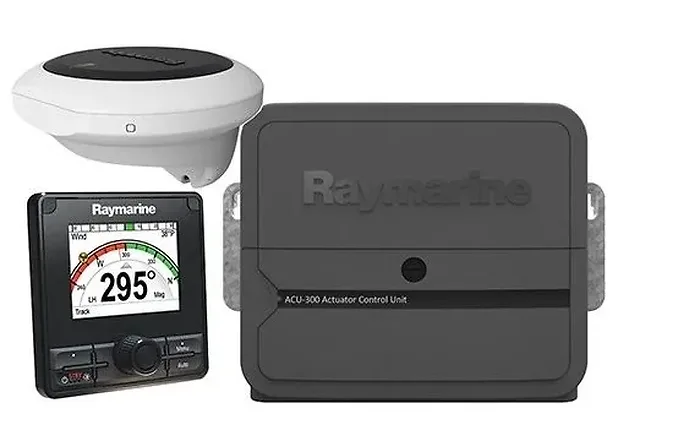

What's in the Box:
- EV-1 Sensor Core
- P70RS Autopilot Control Head
- ACU-300 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference)
- Evolution Cabling Kit
- EV Unit O-Ring Pack (set of 2)
- Wall Mounting Bracket
