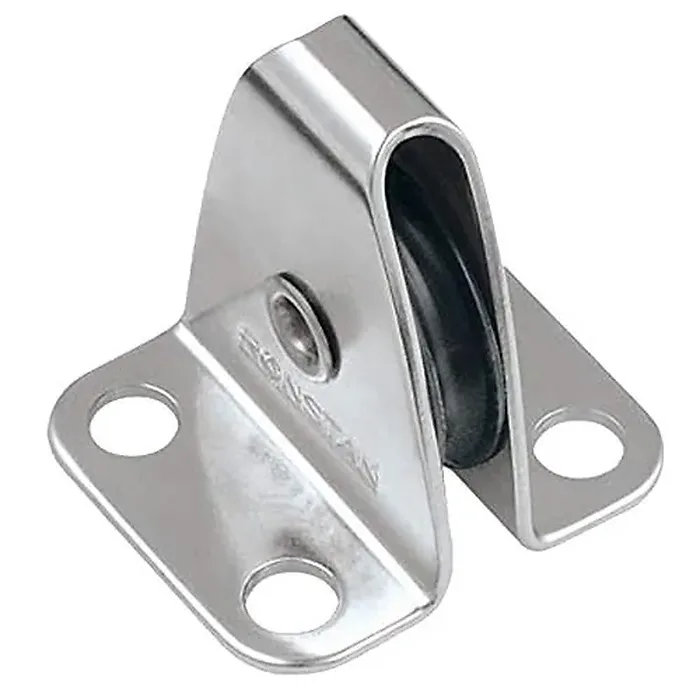

Ronstan RF453 Nylatron Sheave Box Single Upright Lead Block
by Ronstan
| Price: | $32.73 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 7 left in stock order soon
Nylatron Sheave Box - Single Upright Lead Block
Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.When mounted in an inverted position, are frequently used as upright leads.
Features:
The external tabs can be formed to fit the spar profile before fastening
Applications:
Typically used in dinghy spars for control lines such as outhauls
Materials:
- Nylatron® sheave
- Grade 316 stainless steel load housing
Specifications:
Sheave Ø:22mm(7/8")
Max. Rope Ø:3mm(1/8")
Max. Cable Ø:3mm(1/8")
Fastener Ø:5mm(3/16")
M.W.L.:160kg(350lbs)
B. L.:350kg(700lbs)
Weight:30g(1.1oz)
Specifications
Nylatron Sheave Box - Single Upright Lead BlockLead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers.When mounted in an inverted position, are frequently used as upright leads.
Features:
The external tabs can be formed to fit the spar profile before fastening
Applications:
Typically used in dinghy spars for control lines such as outhauls
Materials:
- Nylatron® sheave
- Grade 316 stainless steel load housing
Specifications:
Sheave Ø:22mm(7/8)
Max. Rope Ø:3mm(1/8)
Max. Cable Ø:3mm(1/8)
Fastener Ø:5mm(3/16)
M.W.L.:160kg(350lbs)
B. L.:350kg(700lbs)
Weight:30g(1.1oz)
