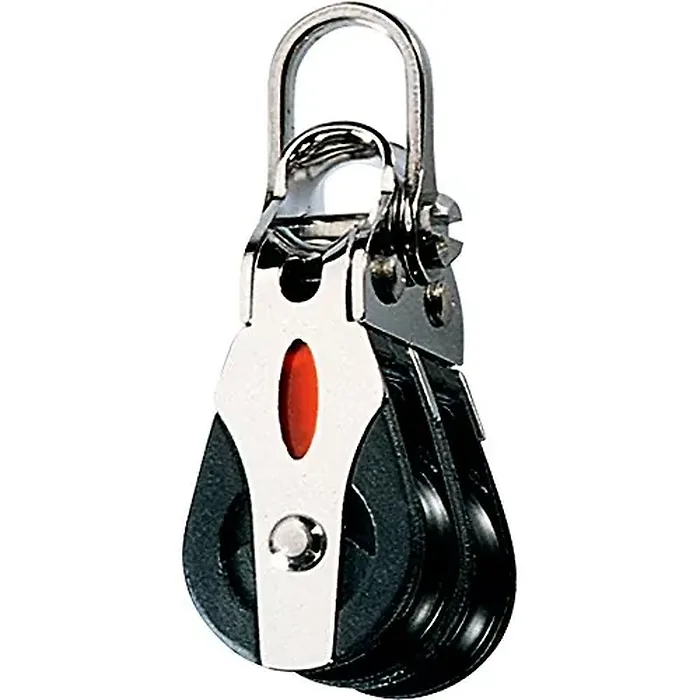

Ronstan RF20202 Series 20 Ball Bearing Block Double 2axis Shackle Head
by Ronstan
| Price: | $33.85 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
Series 20 Ball Bearing Block - Double - 2-Axis Shackle Head
Features:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
- Two-Way head can be fixed at 0° or 90°
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø:20mm(3/4")
Max. Rope Ø:6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:350kg(770lbs)
B. L.:700kg(1,540lbs)
Weight:42g(1.5oz)
Specifications
Series 20 Ball Bearing Block - Double - 2-Axis Shackle HeadFeatures:
- Low friction
- High static and dynamic load capacity
- Lightweight
- Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
- Two-Way head can be fixed at 0° or 90°
Applications:
- Dinghy control lines
- Dinghy vangs
- Cunninghams
- Traveller controls
Materials:
- Stainless steel ball bearings
- UV Stabilized Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fiber reinforced Nylon cheeks
Specifications:
Sheave Ø:20mm(3/4)
Max. Rope Ø:6mm(1/4)
PinØ: 4mm(5/32)
M.W.L.:350kg(770lbs)
B. L.:700kg(1,540lbs)
Weight:42g(1.5oz)
