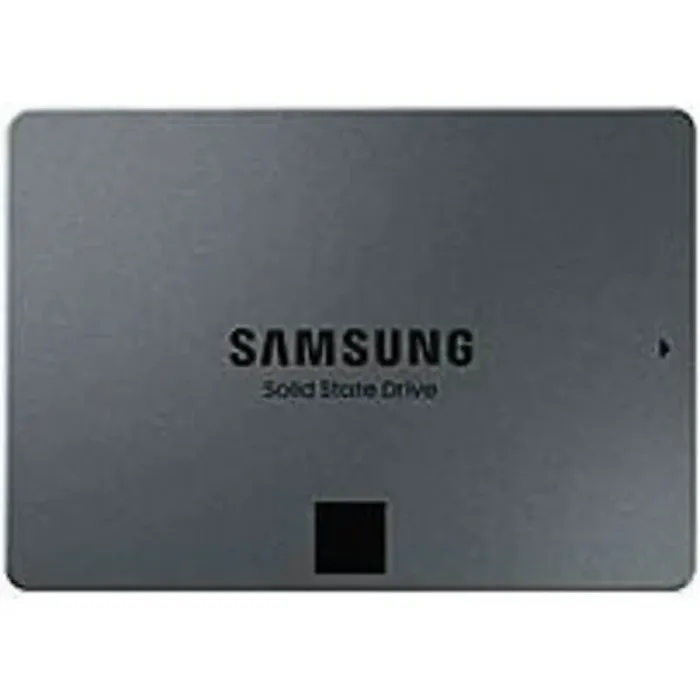

Samsung MZ-77Q8T0B/AM 870 Qvo Ssd 8tb Sata Iii 2.5" Limited Warranty Up To 3 Years
by SAMSUNG

Specifications

General Feature
Application
Client PCs
Capacity
8,000 GB (1 GB is equal to 1 Billion byte by IDEMA)
Note: Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor
2.5 inch
Interface
SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interface
Storage Memory
Samsung V-NAND 4bit MLC
Controller
Samsung MKX Controller
Cache Memory
Samsung 1 GB Low Power DDR4 SDRAM
Special Feature
TRIM Support
TRIM Supported
S.M.A.R.T Support
S.M.A.R.T Supported
GC (Garbage Collection)
Auto Garbage Collection Algorithm
Encryption Support
AES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
WWN Support
World Wide Name supported
Device Sleep Mode Support
Yes Performance
Sequential Read
Up to 560 MB/s Sequential Read
Sequential Write
Up to 530 MB/s Sequential Write
Random Read (4KB, QD32)
Up to 98,000 IOPS Random Read
Random Write (4KB, QD32)
Up to 88,000 IOPS Random Write
Random Read (4KB, QD1)
Up to 11,000 IOPS Random Read
Random Write (4KB, QD1)
Up to 35,000 IOPS Random Write
Note:
1. Performance may vary based on system hardware and configuration
2. Measured with Intelligent TurboWrite technology being activated Environment
Average Power Consumption (system level)
Average: 2.2 W
Note:
1. Maximum: 4.0 W (Burst mode)
2. Actual power consumption may vary depending on system hardware and configuration
Power consumption (Idle)
Max. 30 mW
Note: Actual power consumption may vary depending on system hardware and configuration
Allowable Voltage
5V +/- 5% Allowable voltage
Reliability (MTBF)
1.5 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70oC Operating
Shock
1,500 G and 0.5 ms (Half sine) Accessories
Installation Kit
Not Available Software
Management SW
Magician Software for SSD management Item Dimension (L inchxW inchxH inch)
6 x 4 x 1

Weight
1.00 LB
