Hpe 416096-B21 Sc44ge Pcie Hbasas Disc Prod
by HPE
| Price: | $71.27 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 1 left in stock order soon

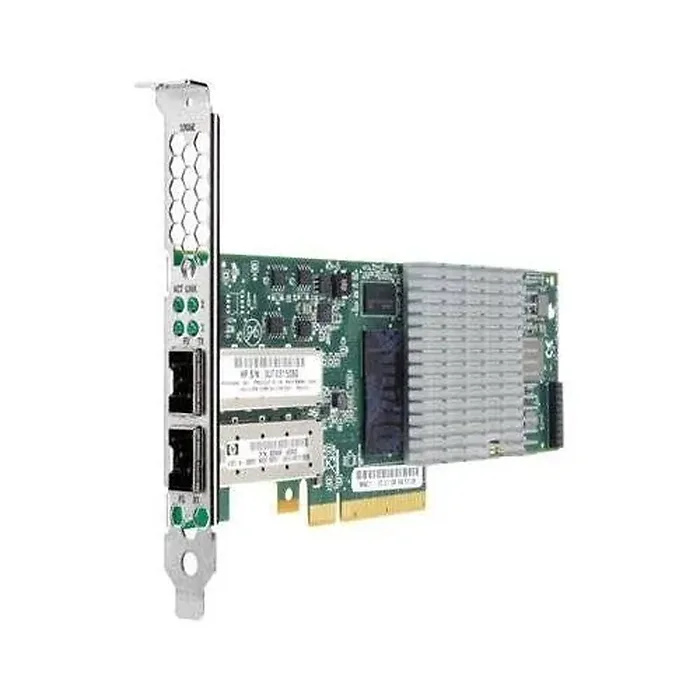

The HPE 416096-B21 SC44Ge Host Bus Adapter (HBA) provides customers with the flexibility and speed they have come to expect from HP. The SC44Ge Host Bus Adapter is ideal for basic RAID (0,1) and low cost connectivity to tape and HDDs. This adapter supports both 3 Gb SAS and 1.5 Gb SATA devices. Providing up to 2.4 GB/s maximum bandwidth, this HBA provides nearly four times the speed of a dual channel U320SCSI adapters. HPE SC44Ge Host Bus Adapter has been thoroughly tested and integrated into many of the HPE ProLiant servers.
Specifications
Specifications
Brand: HPE
MPN: 416096-B21
Option Part Number: 416096-B21
Spare Part Number: 416155-001
General
Device Type: Host Bus Adapter - Plug-in Card
Host Bus: PCIe x8
Storage Controller
Interface: SATA 1.5Gb/s / SAS
Data Transfer Rate: 300 MBps
Supported Devices: Hard drive, tape drive, disk array (RAID)
Channel Qty: 8
Max Storage Devices Qty: 29
RAID Level: RAID 0, RAID 1
Expansion & Connectivity
Interfaces: 1 x SATA 1.5Gb/s / SAS - 32 pin 4i MultiLane SAS (SFF-8484) ( internal ) 1 x SATA 1.5Gb/s / SAS - 4x InfiniBand (SFF-8470) ( external )
Compatible Slots: 1 x PCI Express x8
Software / System Requirements
OS Required: SuSE Linux Enterprise Server, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Standard Edition, UnixWare 7.1.3, Microsoft Windows Small Business Server 2003, Red Hat Enterprise Linux, UnixWare 7.1.4, Microsoft Windows Server 2003 Standard x64 Edition, Microsoft Windows Server 2003 Enterprise x64 Edition, SCO OpenServer 6
Product Dimensions & Weight
Width: 0.60 inch
Depth: 6.60 inch
Height: 2.50 inch
