Schaefer 706-62 Schaefer Series 7 60mm Stand Up Ball Bearing Swivel Block
by Schaefer Marine
| Price: | $223.95 |
| MFG Part: | 706-62 |
| UPC: | 740507011283 |
| Condition: | New |
Currently Unavailable.
Ships from and sold by Aztek Renew.
Added On: Feb 20, 2023 | Updated On: Feb 14, 2026 | Views: 1

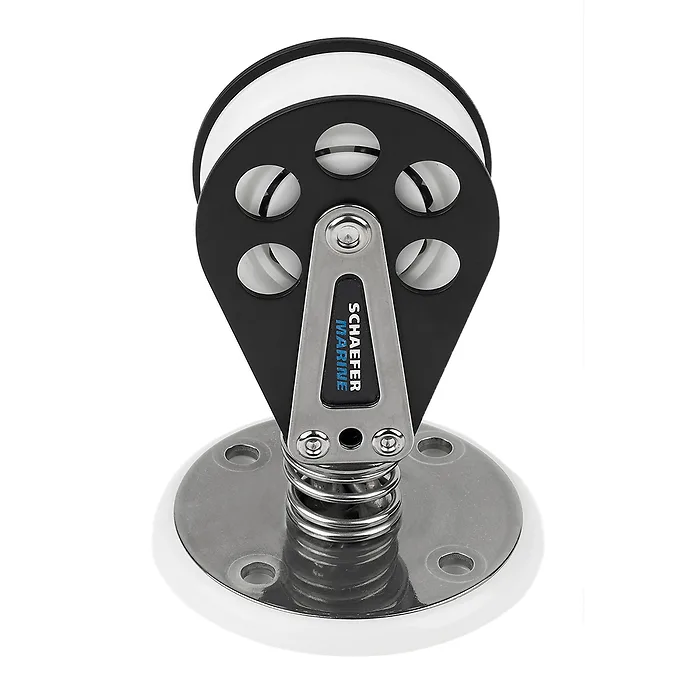

Schaefer Series 7 60mm Stand Up Ball Bearing Swivel Block
This single stand-up ball bearing block features a reliable spring mechanism that keeps the block in an upright position when not in use. Constructed with a stainless steel base to evenly distribute the load, this block is compatible with the 97-49 backing plate (sold separately). The Delrin™ ball bearing sheave is designed for low friction and high strength, making it ideal for demanding applications.
Specifications:
- Sheave Diameter: 2-2/8" (60 mm)
- Maximum Line Diameter: 1/2" (13 mm)
- Overall Diameter (with urethane base): 3-3/8" (86 mm)
- Height: 4-25/32" (120 mm)
- Fastener Size: (4) 1/4" RH (6 mm)
- Center-to-Center Distance: 1-11/16" (43 mm)
- Safe Working Load: 1700 lbs (771 kg)
- Weight: 11.7 oz (332 g)
Specifications
- Single stand-up design for easy visibility and handling
- Delrin™ ball bearing for reduced friction
- Stainless steel base for durability and strength
- Compatible with 97-49 backing plate
- Lightweight design at 11.7 oz (332 g)
- High load capacity of 1700 lbs (771 kg)
