Schaefer 705-92 Schaefer Spring Loadedlined Slidestainless Steel F114" Ttrack
by Schaefer Marine
| Price: | $299.31 |
| MFG Part: |
| UPC: |
| Condition: |
In Stock.
only 3 left in stock order soon

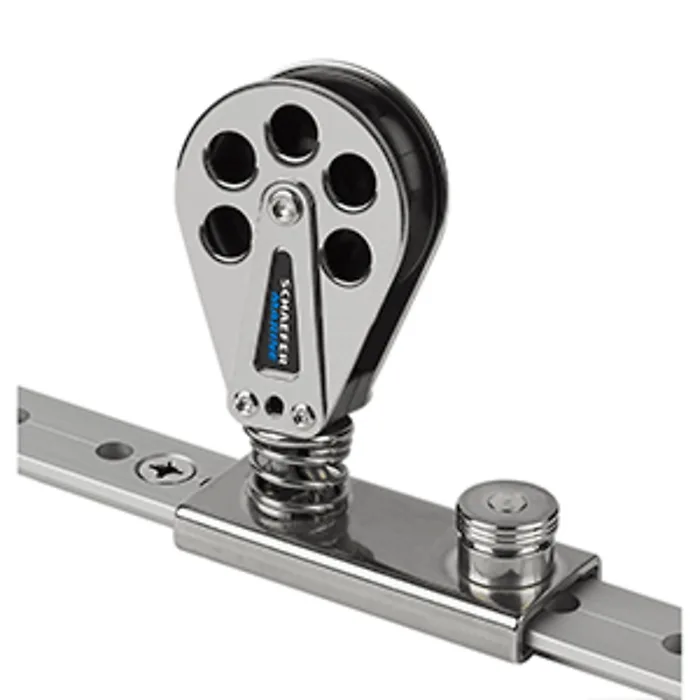

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
- Max. Boat Length 33' (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8" (60 mm)
- Max Line 1/2" (12 mm)
- Length 4" (102 mm)
- Width 1-9/16" (39 mm)
- Height 4-15/16" (126 mm)
- Bearing Height 2-3/8" (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 14 oz. (397 g)
Specifications
Spring Loaded/Lined Slide/Stainless Steel for 1-1/4 T-Track
Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.
Specifications:
- Track Size 1-1/4 x 3/16 (32 mm x 5 mm)
- Max. Boat Length 33 (10 m)
- Max. Boat Weight 12000 lbs. (5455 kg)
- Max. Sail Area 520 sq. ft. (48 m2)
- Sheave Diameter 2-3/8 (60 mm)
- Max Line 1/2 (12 mm)
- Length 4 (102 mm)
- Width 1-9/16 (39 mm)
- Height 4-15/16 (126 mm)
- Bearing Height 2-3/8 (67 mm)
- SWL 2250 lbs. (1020 kg)
- Weight 14 oz. (397 g)
