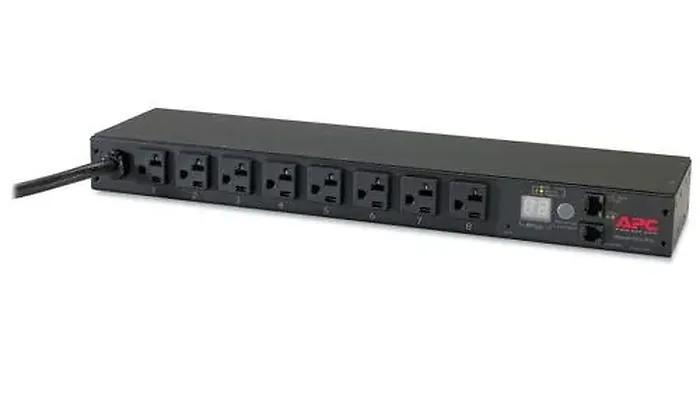

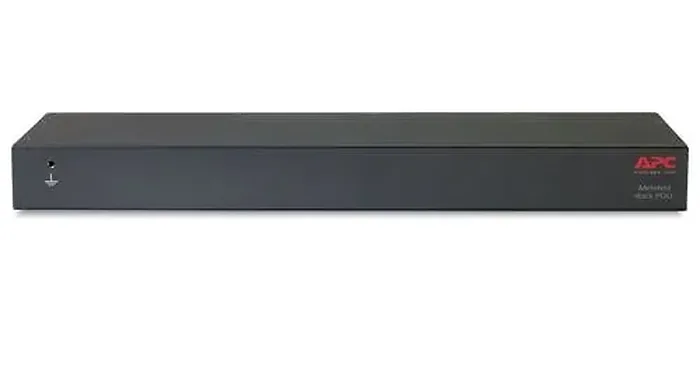

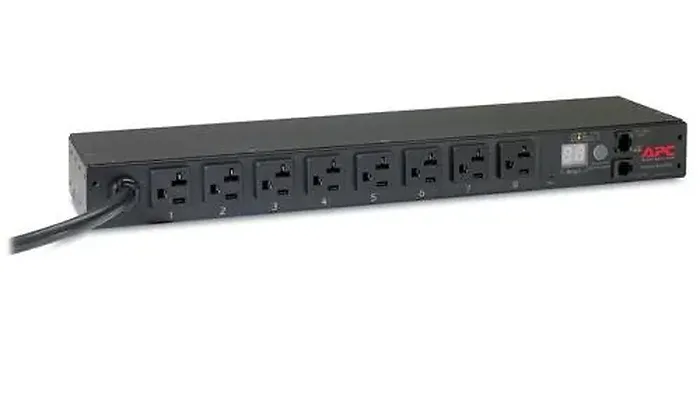

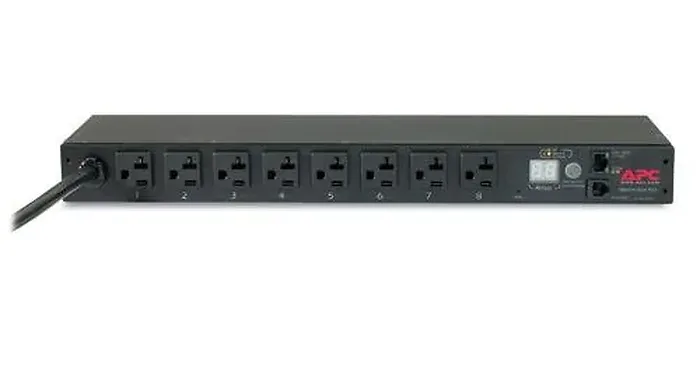

Apc AP7801B Schneider Electric Power Distribution Unit Rackmountable Input Vo
by APC - Schneider Electric

Specifications

Output
Nominal Output Voltage: 120V
Overload Protection: No
Maximum Total Current Draw: 16
Output Connections: (8) NEMA 5-20R (Battery Backup) Input
Nominal Input Voltage: 100V , 120V
Input frequency: 50/60 Hz
Input Connections: NEMA L5-20P
Cord Length: 12ft ( 3.66meters )
Number of Power Cords: 1
Load Capacity: 1920VA
Maximum Input Current: 20A
Regulatory Derated Input Current (North America): 16A Physical
Rack Height: 1U Environmental
Operating Environment: 23 - 113 ^oF ( -5 - 45 ^oC )
Operating Relative Humidity: 5 - 95 %
Operating Elevation: 0-10000ft ( 0-3000meters )
Storage Temperature: -25 - 65 ^oC
Storage Relative Humidity: 5 - 95 %
Storage Elevation: 0-50000ft ( 0-15000meters ) Conformance
Approvals: cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed Sustainable Offer Status
RoHS: Compliant
REACH: REACH: Contains No SVHCs
Battery Directive: Compliant
Battery Notes: ts_Battery_Notes Item Dimension (L"xW"xH")
14 x 19 x 3

Weight
6.40 lbs

Warranty Information
2 Years repair or replace
