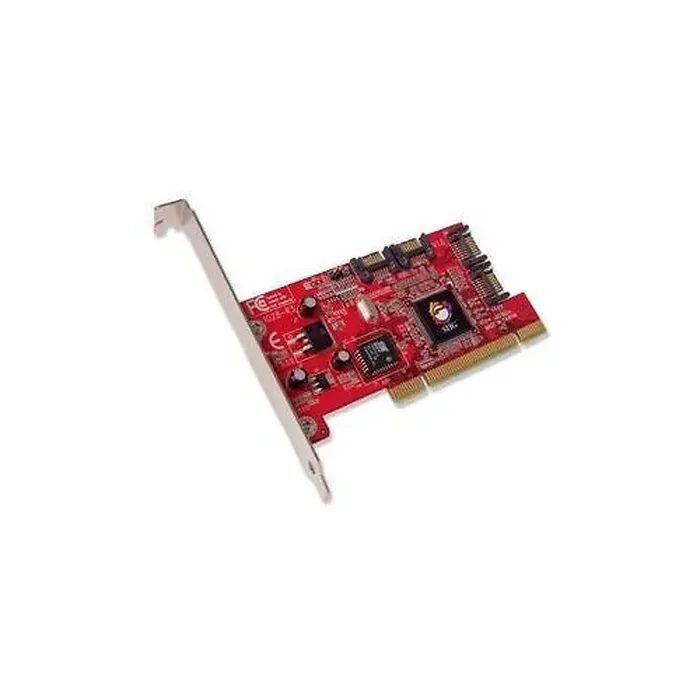

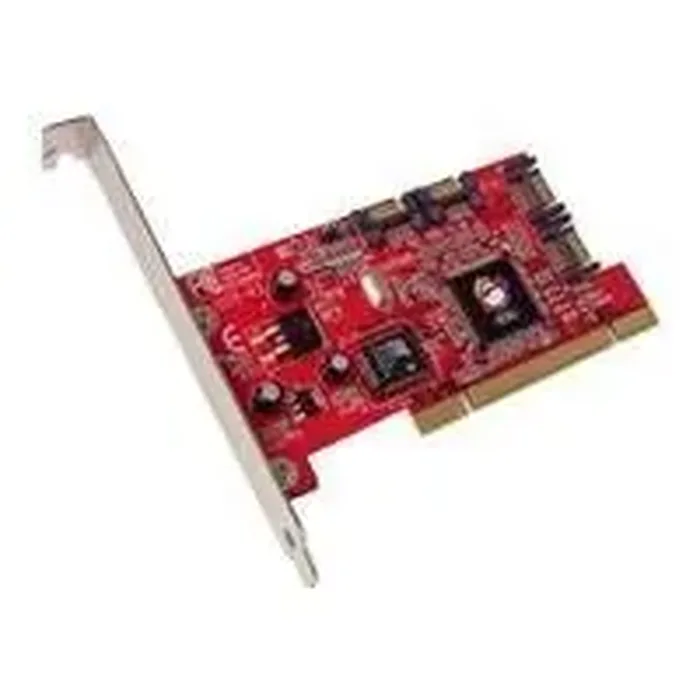

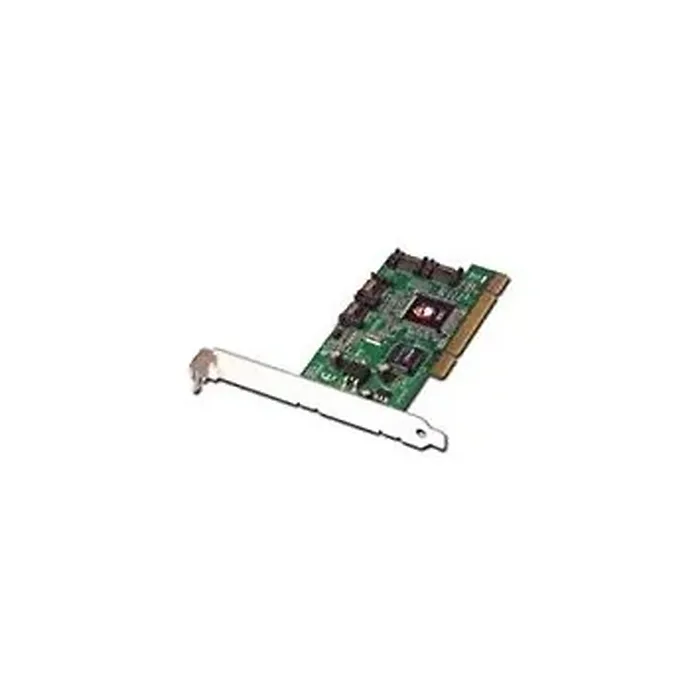

Siig SC-SA4R12-S2 Serial Ata 4channel Raid Pcitoserial Ata 32bit 66mhz 150mb Rohs
by Siig

Specifications

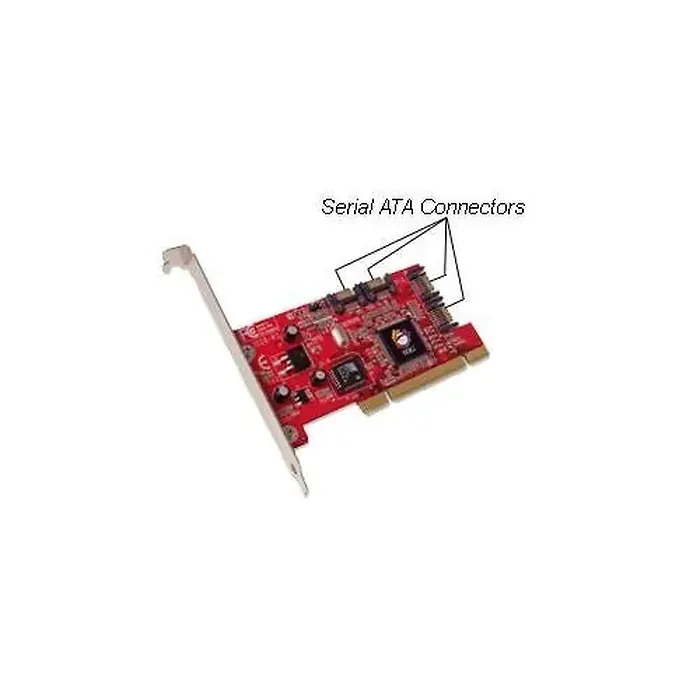

Supports RAID 0 (stripping), RAID 1(mirroring) and RAID 0+1 (striping and mirroring) for performance and reliability Thin, flexible Serial ATA cables make it easier to route inside a PC Breaks the 137GB barrier Supports various brands of large capacity Serial ATA hard drives Regulatory approval(s) - FCC Class B (DoC) and CE Port type - Four Serial ATA ports Slot type - 32-bit PCI Compliant with Serial ATA Specification, revision 1.0 Compliant with PCI Specification, revision 2.2 Supports RAID 0 (striping), RAID 1 (mirroring) and RAID 0+1 (striping and mirroring) Coexists with Ultra ATA controller and allows you to connect up to four Serial ATA hard disks Features independent 256-byte FIFOs per channel for host reads and writes Features Watch Dog timer for fault resiliency and flash memory for future BIOS updates Supports 32-bit wide PCI bus at 66MHz data transfer rates up to 150 MB/s (1.5Gb/s) Lower pin count and voltage requirement, plus better cabling over traditional Parallel ATA make Serial ATA the controller of the future Four high quality SATA cables and two dual connector SATA power cables required for RAID configuration are included. Two Y split power cable is also included to provide extra power connection System Requirements -- -Pentium or equivalent PC with one available PCI slot -Windows 98SE/ME/NT4.0/2000/XP Package Contents -- -Serial ATA 4-channel RAID
