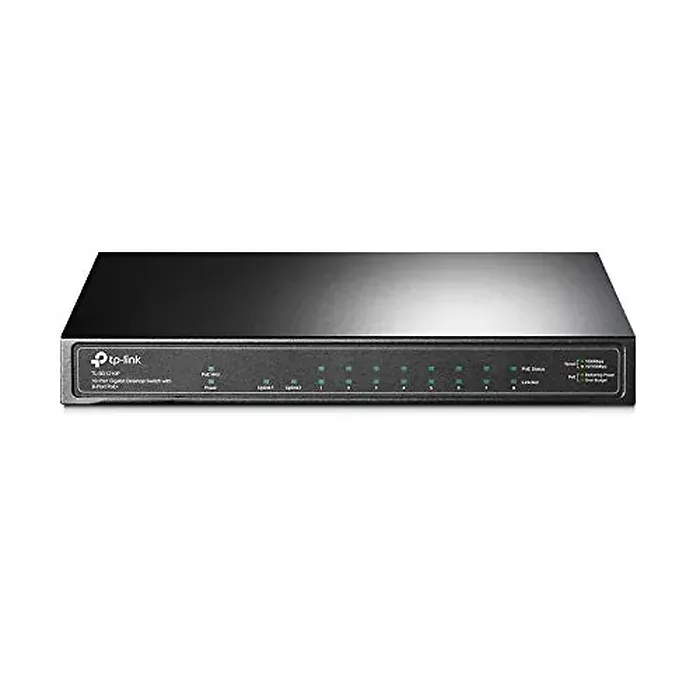

Tplink TL-SG1210P Smb Switch
by TPLINK

Specifications

HARDWARE FEATURES
Interface
8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 Ohm STP (maximum 100m)
1000BASE-X MMF, SMF Fan Quantity
Fanless Physical Security Lock
Yes Power Supply
External Power Adapter(Output: 53.5VDC / 1.31A) Backup Bandwidth
20 Gbps PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8
PoE Power Budget: 63W Mac Address Table
4K Max Power Consumption
7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected) Max Heat Dissipation
24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping Transmission Method
Store-And-Forward

OTHERS
Certification
CE, FCC, RoHS Package Contents
TL-SG1210P, Power Adapter, Installation Guide Environment
Operating Temperature: 0^oC - 40^oC (32^oF - 104^oF)
Storage Temperature: -40^oC - 70^oC (-40^oF - 158^oF)
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Item Dimension (L inchxW inchxH inch)
13 x 10 x 3

Weight
3.00lb

Warranty Information
2-year
