Startech DSRXL Vga Over Cat5 Receiver With Rs232 And Audio
by STARTECH
| Price: | $274.72 |
| MFG Part: |
| UPC: |
| Condition: |
Currently Unavailable.

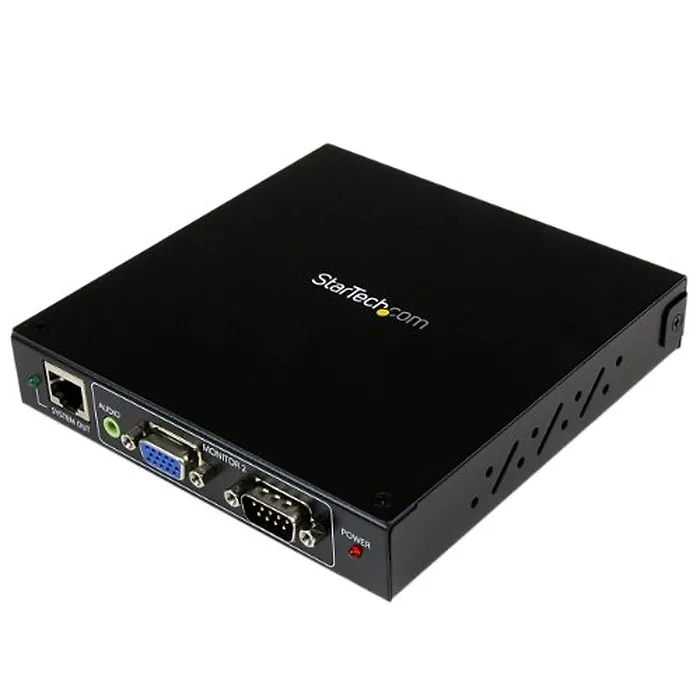

The StarTech VGA Over Cat5 Receiver is designed to extend VGA video and audio signals over long distances using CAT5 cabling. This robust solution provides high-resolution display options and supports features such as RS-232 serial communication for device control, making it ideal for various applications, including multimedia presentations and digital signage.
Specifications
- Maximum Resolution: 1600x1200 at 100m / 330ft, 1280x1024 at 300m / 950ft
- Color: Black

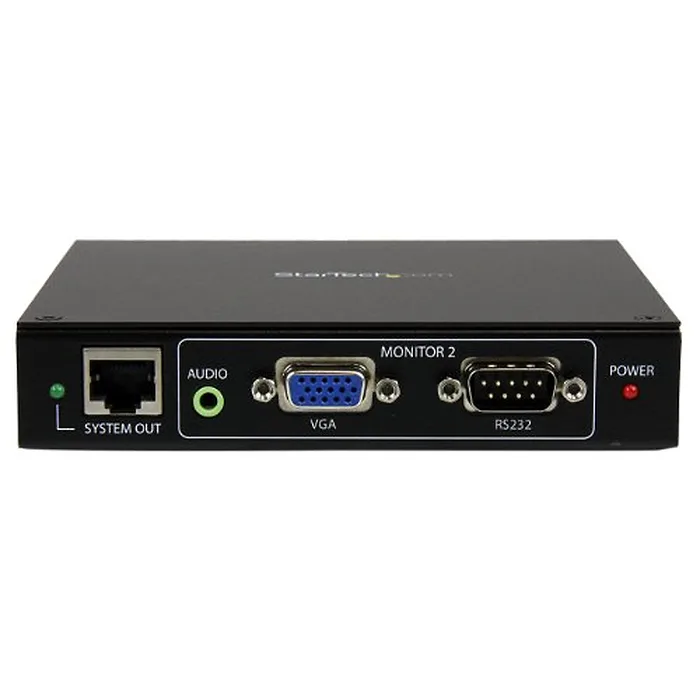

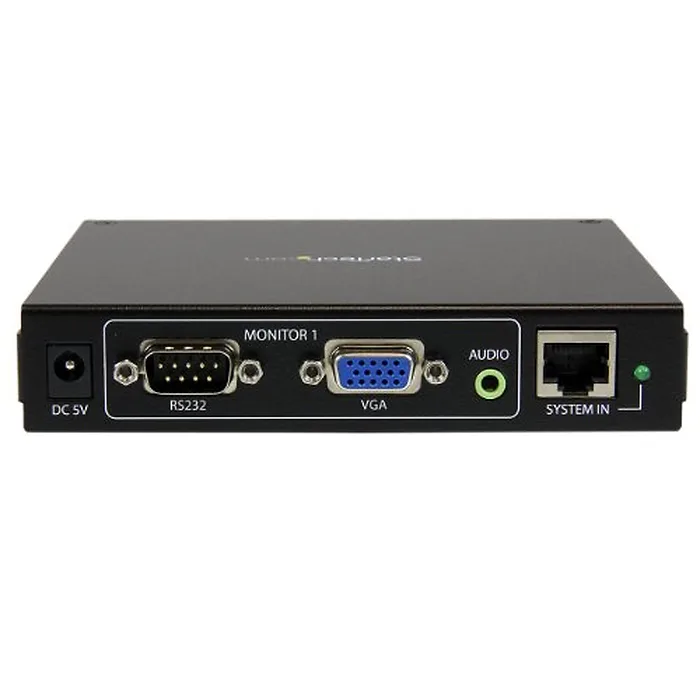

- Connector Types: 2 - DB15 High Density Female, 2 - Phono 3.5 mm Female, 2 - RJ45 Female, 2 - DB9 Male
- Enclosure Type: Steel
- Maximum Cable Length: 32.8 ft (10 m)
- Number of Ports: 1
- Operating Temperature: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Output Current: 2A
- Output Voltage: 5 DC

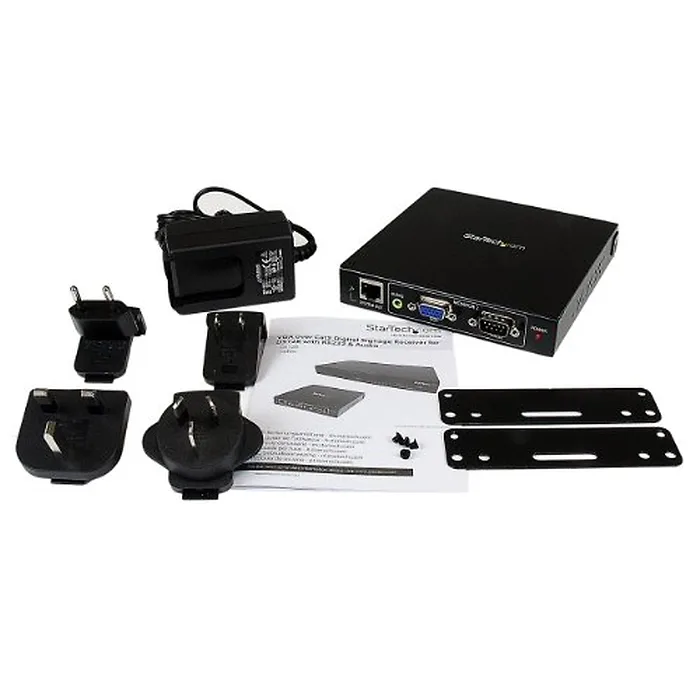

- Power Adapter Included: Yes
- Power Adapter - Amperage: 600mA
- Power Adapter - DC Voltage: 12V DC
- Center Tip Polarity: Positive
- Storage Temperature: -20 deg C to 60 deg C (-4 deg F to 140 deg F)
- Humidity: 0-90% RH, non-condensing
- RS-232 Serial Support: Yes
- Audio Support: Yes, Stereo CD Quality sound
- DDC/EDID Emulation: Yes, emulation for port 1 monitor
- Rack-Mountable: Yes
- Daisy-Chain: Up to 5 levels
