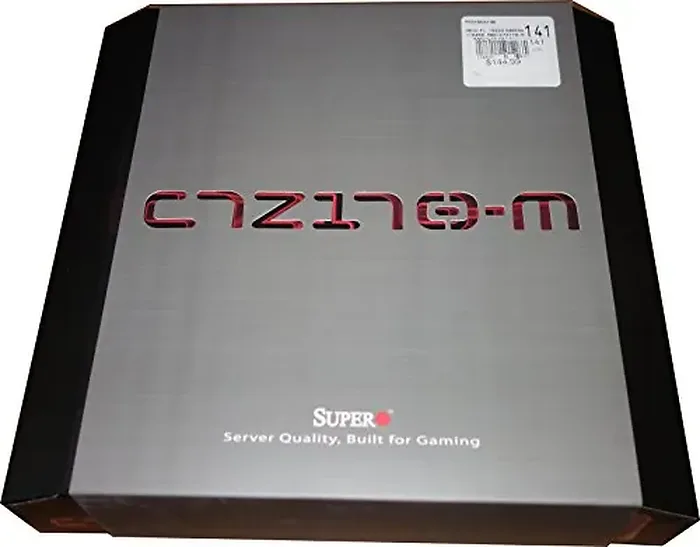

Supermicro MBD-C7Z170-M-P C7z170mp Motherboard For Intel Core I7i5i3
by Supermicro

• ☆☆☆☆☆
• 1 customer reviews

Price:

$202.58

MFG Part:

MBD-C7Z170-M-P

UPC:	672042204939

Condition:

New

Currently Unavailable.

Ships from and sold by Aztek Computers.

Added On: Dec 27, 2023 | Updated On: Dec 28, 2025 | Views: 13

This Supermicro motherboard features a single socket H4 (LGA 1151) that supports Intel® 6th Gen Core™ i7/i5/i3 series processors, as well as Intel® Celeron® and Intel® Pentium® CPUs.

The motherboard is built on the Intel® Z170 Express Chipset and can accommodate up to 64GB of Non-ECC UDIMM DDR4-3200MHz memory across four DIMM slots.

Networking is facilitated by a Gigabit Ethernet LAN port (Intel® i219V), while storage capabilities include 6 SATA3 (6Gbps) ports with RAID support for levels 0, 1, 5, and 10.

Expansion options feature one PCI-E 3.0 x16, one PCI-E 3.0 x4, and one PCI-E 3.0 x1 slot, along with one PCIe M.2 slot (supports PCIe x4 models with 2260/2280/22110 sizes).

Connectivity includes 6 USB 3.0 ports (4 rear + 2 via header), 4 USB 2.0 ports (2 rear + 2 via headers), and 2 USB 3.1 (10Gbps) ports (headers). Video output is provided through 1 DVI-D, 1 DP (Display Port), and 1 HDMI.

Enjoy high-definition audio with the 7.1 channel connector powered by Realtek ALC1150, along with UEFI BIOS support for enhanced performance.
