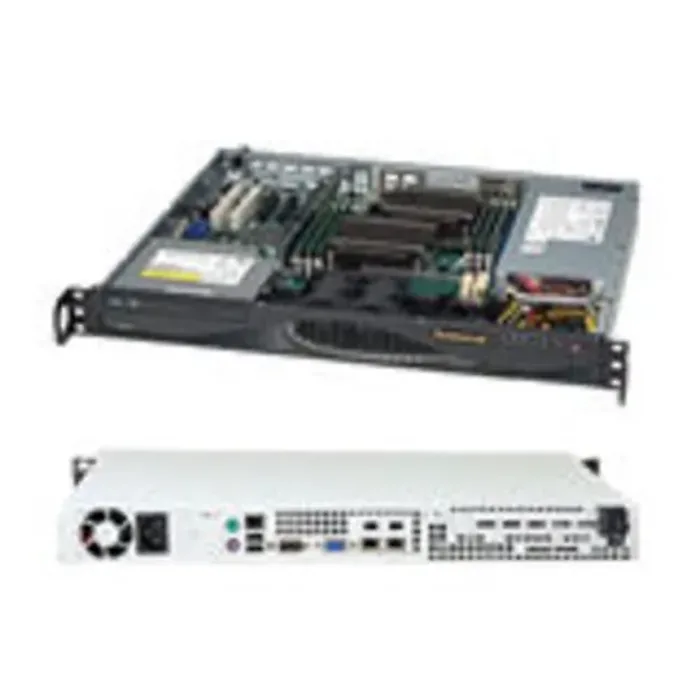

Supermicro CSE-512F-350B1 Case 1u 350w 2x3.5 Fixed Drive Bay Sas Sata Black
by Supermicro

Specifications

Form Factor
14.5" Mini 1U chassis - supports maximum motherboard sizes: ATX 12" x 10"
Processor Support
Single and Dual Intel and AMD processors
Available Color
Black
Expansion Slots
1 full-height and half-length expansion slot(s) (Riser Card Required)
Drive Bays
2 x 3.5" fixed drive bay
SAS or enterprise SATA HDD only recommended
Peripheral Drives
1 x slim DVD-ROM drive bay
Optional 1 x Slim DVD-ROM Drive
Front Panel
-Buttons
Power On/Off button
System Reset Button
-LEDs
2 Network Activity LEDs
Fan Fail/System Over Heat LED
HDD activity LED
Power Status LED
Systems Cooling
-Fans
2 x 4cm counter-rotating PWM fan(s)
Operating Environment (System)
-Operating Temperature Range
5^oC - 35^oC (41^oF - 95^oF)
-Non-Operating Temperature Range
40^oC - 70^oC (-40^oF - 158^oF)
-Operating Relative Humidity Range
8% - 90% (non-condensing)
-Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
Power Supply
1U 350W Multi-output power supply Platinum level
-Power Efficiency
93%
-Total Output Power and Input
350W with Input 100 - 240Vac
-AC Input Frequency
50-60Hz
-Dimensions (L x W x H)
180 x 100 x 40 mm
-Output Type
24pin ATX
-12V
Max: .2A / Min: 0A
+12V
Max: 29A / Min: .5A (100Vac - 240Vac)
+5V
Max: 15A / Min: .2A
+3.3V
Max: 12A / Min: .2A
+5Vsb
Max: 3A / Min: 0A
Regulatory (Power Supply)
-Power Supply Safety / EMC
BSMI
CCC
CE/EMC
FCC class B
TUV/CB
Item Dimension ( L inchxW inchxH inch)
20 x 22 x 7
Weight
23 lb
Warranty Information
1 Year
