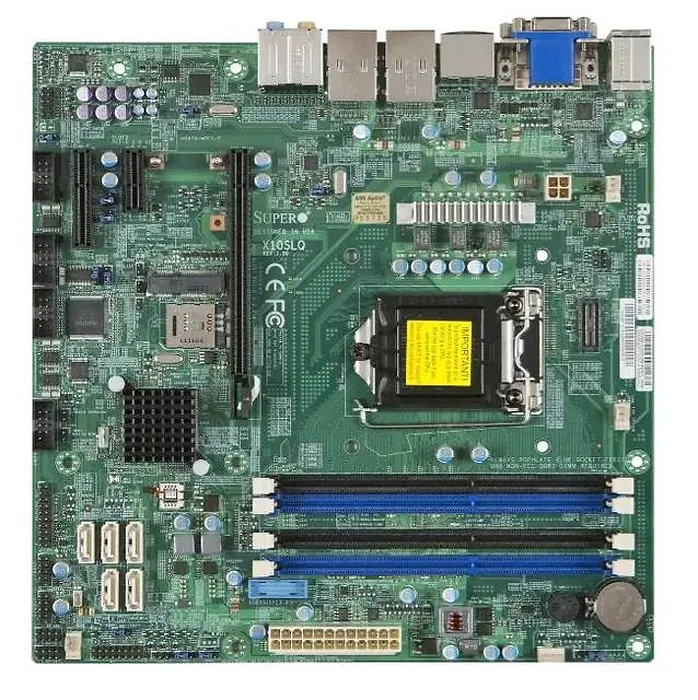

Supermicro MBD-X10SLQ-B Microatx Motherboard With Intel Q87 Chipset
by Supermicro
| Price: | $228.71 |
| MFG Part: |
| Condition: |
Currently Unavailable.
The Supermicro X10SLQ-B is a robust MicroATX motherboard designed for 4th Generation Intel Core processors. It offers various features ideal for both commercial and personal use.
Equipped with Intel Q87 chipset, this motherboard supports up to 32GB DDR3 memory, ensuring ample performance for multitasking and demanding applications. With multiple expansion slots and a range of connectivity options, it provides flexibility and scalability for future upgrades.
Specifications
- CPU: Supports LGA1150 socket for 4th Generation Intel Core i7/i5/i3/Pentium/Celeron processors
- Chipset: Intel Q87 Express
- Memory: 4x 240pin DDR3-1600 DIMM slots; Non-ECC, Unbuffered; Max capacity of 32GB
- Expansion Slots: 1x PCI-Express 3.0 x16, 1x PCI-Express 2.0 x4, 1x PCI-Express 2.0 x1, 1x Mini PCI-Express with mSATA support
- SATA: 6x SATA3 ports (including 1x mSATA); Supports RAID 0, 1, 5, 10
- Audio: Realtek ALC888S 7.1-Channel High Definition Audio CODEC
- LAN: Equipped with Intel i217LM and Intel i210AT Gigabit Ethernet Controllers
- Ports: 4x USB 3.0 (2 rear, 2 via header), 8x USB 2.0 (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse port, 1x VGA, 1x DVI-D, 1x HDMI, 1x DisplayPort, 2x RJ45 LAN ports, Audio I/O jacks
- Form Factor: MicroATX; Dimensions: 9.6 x 9.6 inch (24.4 x 24.4 cm)
- Compliance: RoHS Compliant
